Wheel Speed Sensor Jumper Harness Replacement (Rear)

REMOVAL PROCEDURE
1. Raise and support the vehicle on a suitable hoist.
2. Disconnect the rear wheel speed jumper harness connector at the pass through connector.

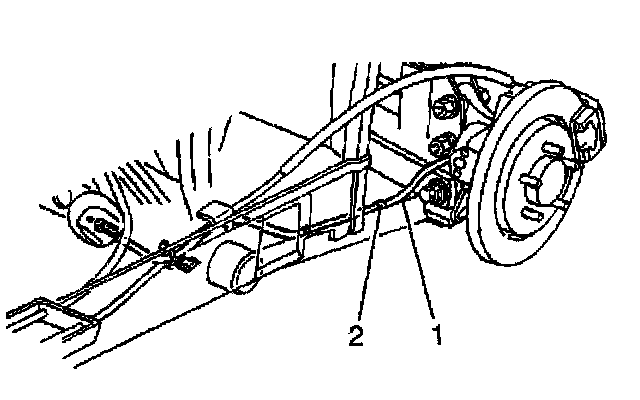

3. Remove the rear wheel speed sensor jumper harness (1) from the retaining clips (2).

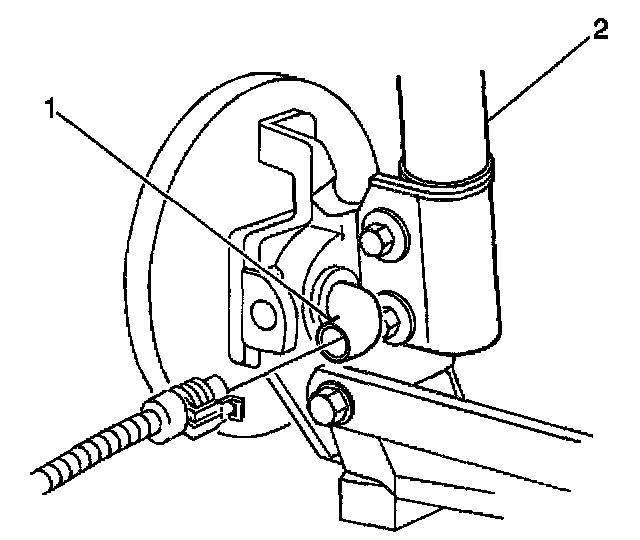

4. Disconnect the rear wheel speed sensor jumper harness connector (1) from the wheel speed sensor, located next to the strut (2).
5. Remove the rear wheel speed sensor jumper harness.


INSTALLATION PROCEDURE





1. Connect the rear wheel speed sensor jumper harness connector (1) from the wheel speed sensor, located next to the strut (2).

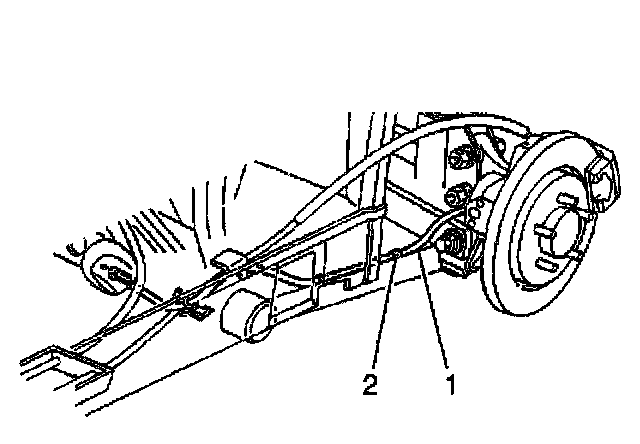

2. Install the rear wheel speed jumper harness (1) into the retaining clips (2).
3. Connect the rear wheel speed sensor jumper harness connector to the pass through connector.
4. Lower the vehicle.
5. Turn the ignition switch to the ON position, engine off.
6. Perform the Diagnosis System Check.
