Wheel Speed Sensor Jumper Harness Replacement (Front)

REMOVAL PROCEDURE
1. Raise and support the vehicle on a suitable hoist.

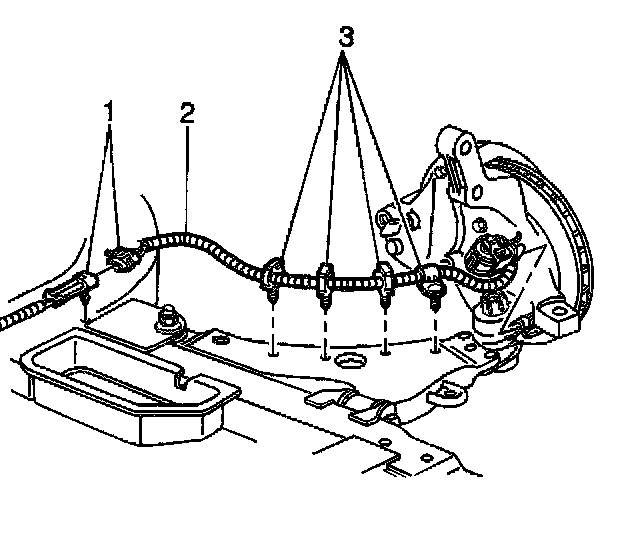

2. Disconnect the front wheel speed jumper harness connector from the ABS harness connector (1).
3. Remove the front wheel speed jumper harness (2) from the control arm retaining clips (3).

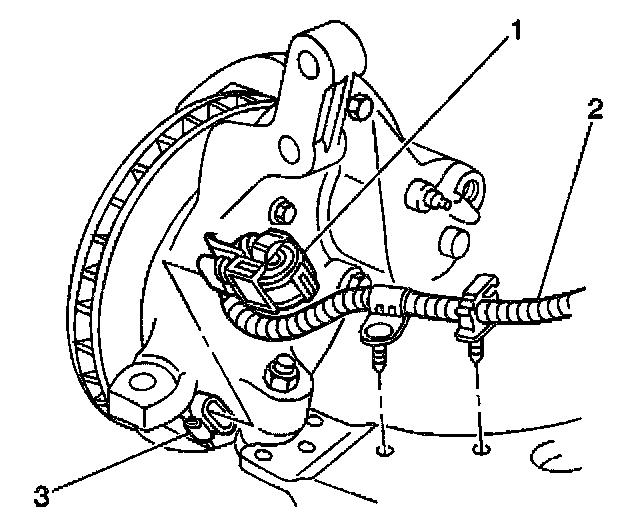

4. Disconnect the front wheel speed sensor jumper harness connector (1) from the wheel speed sensor (3).
5. Remove the front wheel speed sensor jumper harness (2) from the vehicle.


INSTALLATION PROCEDURE

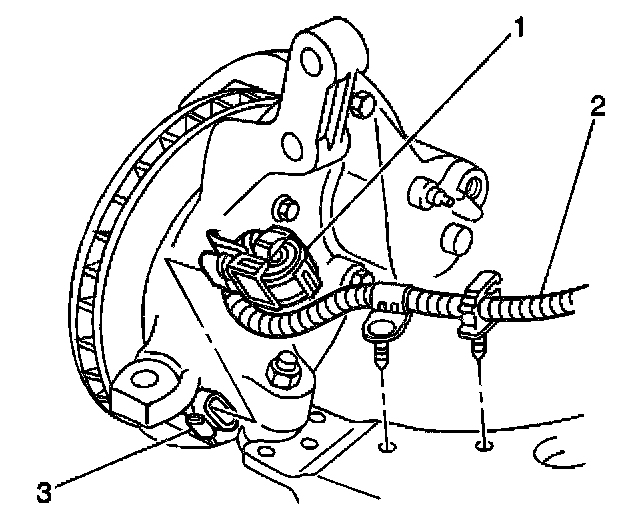

1. Connect the front wheel speed sensor jumper harness connector (1) to the wheel speed sensor(3).





2. Install the front wheel speed jumper harness (2) to control arm retaining clips (3).

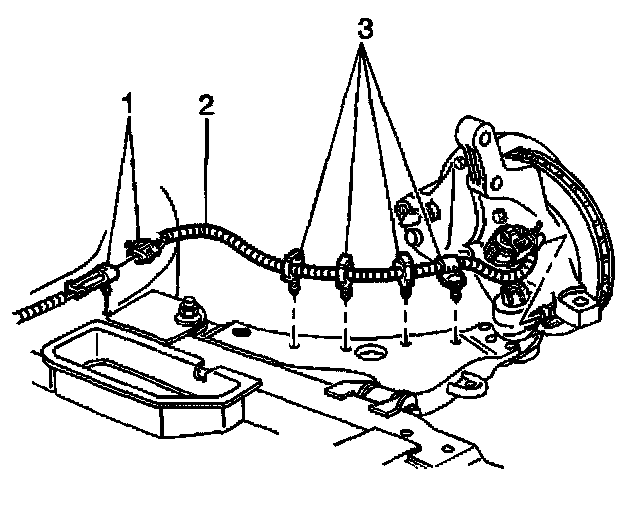

3. Connect the front wheel speed sensor jumper harness connector to the ABS harness connector (1).
4. Lower the vehicle.
5. Turn the ignition switch to the ON position, with the engine off.
6. Perform the A Diagnostic System Check-ABS
