Traction Control Switch: Service and Repair

REMOVAL PROCEDURE

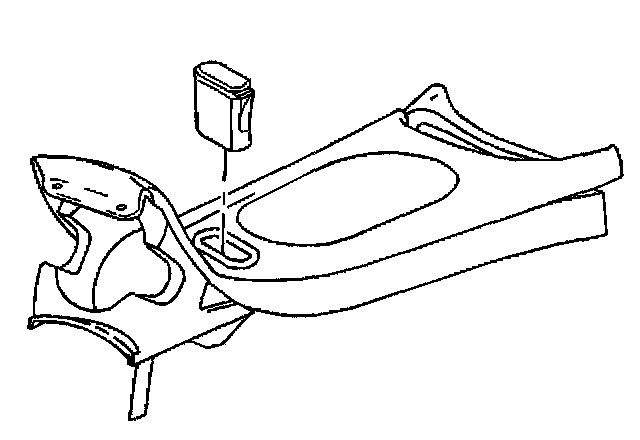

1. Remove the traction control switch from the front floor console trim plate by using a small flat-bladed tool.
2. Disconnect the electrical connector from the traction control switch.

INSTALLATION PROCEDURE
1. Connect the electrical connector to the traction control switch.
2. Align the traction control switch to the front floor console trim plate.
3. Install the traction control switch into front floor console trim plate by pressing into place until fully seated.
