Power Seat Switch: Service and Repair

Seat Switch Replacement - Power (Six-Way Power Seat Switch)

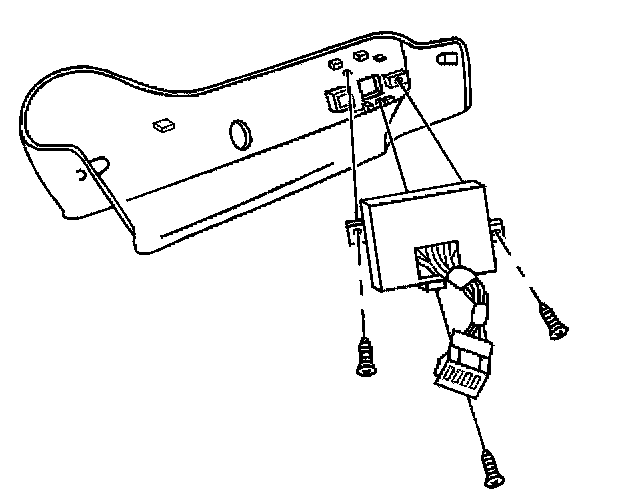

REMOVAL PROCEDURE
1. Remove the finish trim panel.
2. Remove the power seat switch screws.
3. Remove the power seat switch from the finish trim panel.

INSTALLATION PROCEDURE
1. Install the power seat switch to the finish trim panel.

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the power seat switch screws.

Tighten
Tighten the power seat switch screws to 3 N.m (27 lb in).

3. Install the finish trim panel.
