Rear

Removal Procedure
1. Remove the rear seat cushion.
2. Remove the rear seat back.

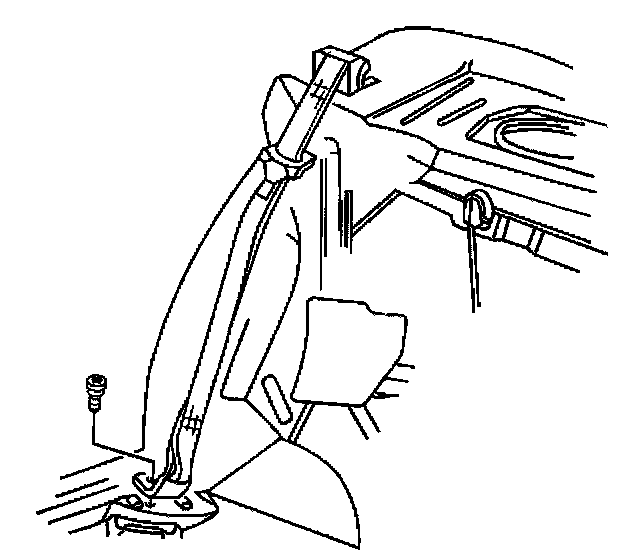

3. Remove the rear quarter upper trim panel.
4. Remove the rear quarter lower trim panel.
5. Remove the rear seat belt retractor bolt (anchor).

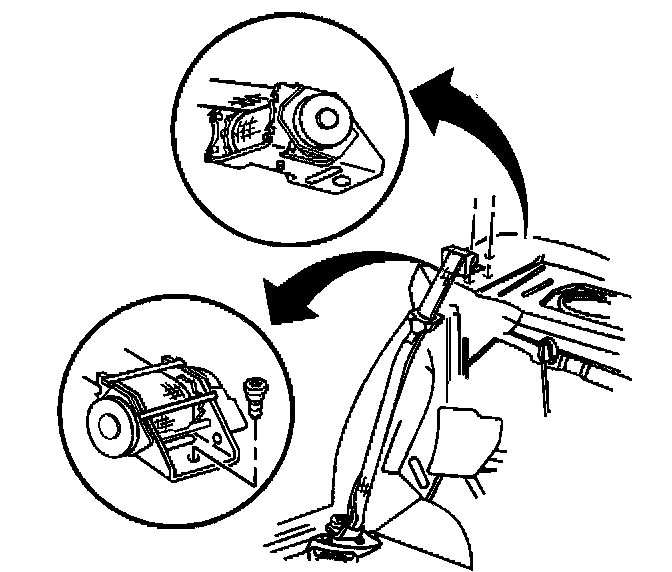

6. Loosen the rear window trim panel.
7. Remove the rear sound barrier.
8. Remove the rear seat belt retractor bolt.
9. Remove the rear seat belt retractor from the vehicle.

Installation Procedure
1. Install the rear seat belt retractor to the vehicle.

Notice: Refer to Fastener Notice in Cautions and Notices.

Important: Be sure to seat the alignment tabs.

2. Install the rear seat belt retractor bolt.

Tighten
Tighten the seat belt retractor bolt to 42 N.m (31 lb ft).

3. Install the rear sound barrier.
4. Install the rear window trim panel.
5. Install the rear seat belt retractor bolt (anchor).

Tighten
Tighten the seat belt retractor bolt to 42 N.m (31 lb ft).

6. Install the rear quarter lower trim panel.
7. Install the rear quarter upper trim panel.
8. Install the rear seat back.
9. Install the rear seat cushion.
