BLR MTR CNTRL Module (W/RPO CJ2) Or BLR Resistors (W/RPO C67)

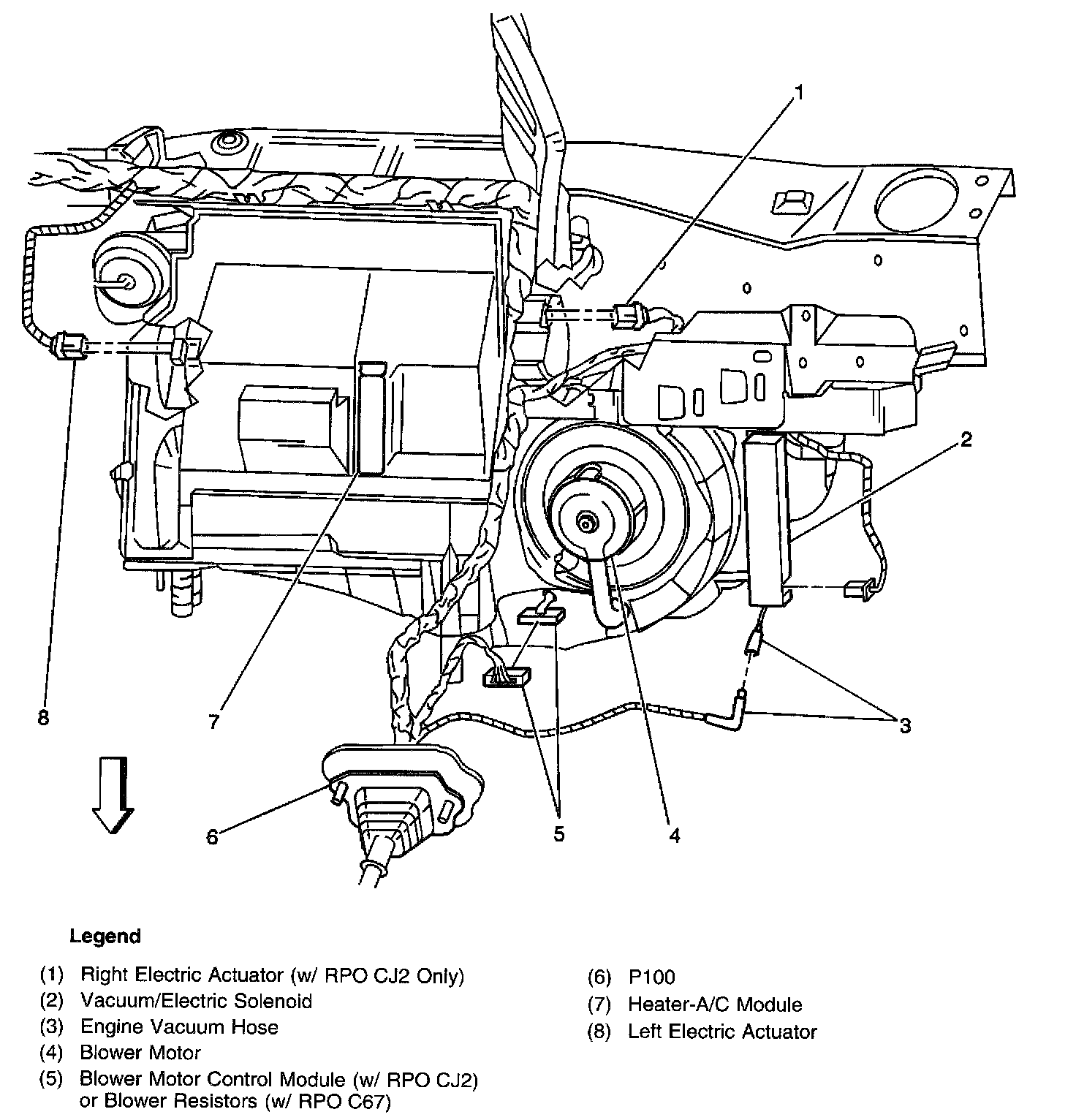

HVAC - Behind Center Of Instrument Panel: CJ2 Shown, C67 Similar:
