HVAC System - Manual

BLOWER MOTOR RELAY

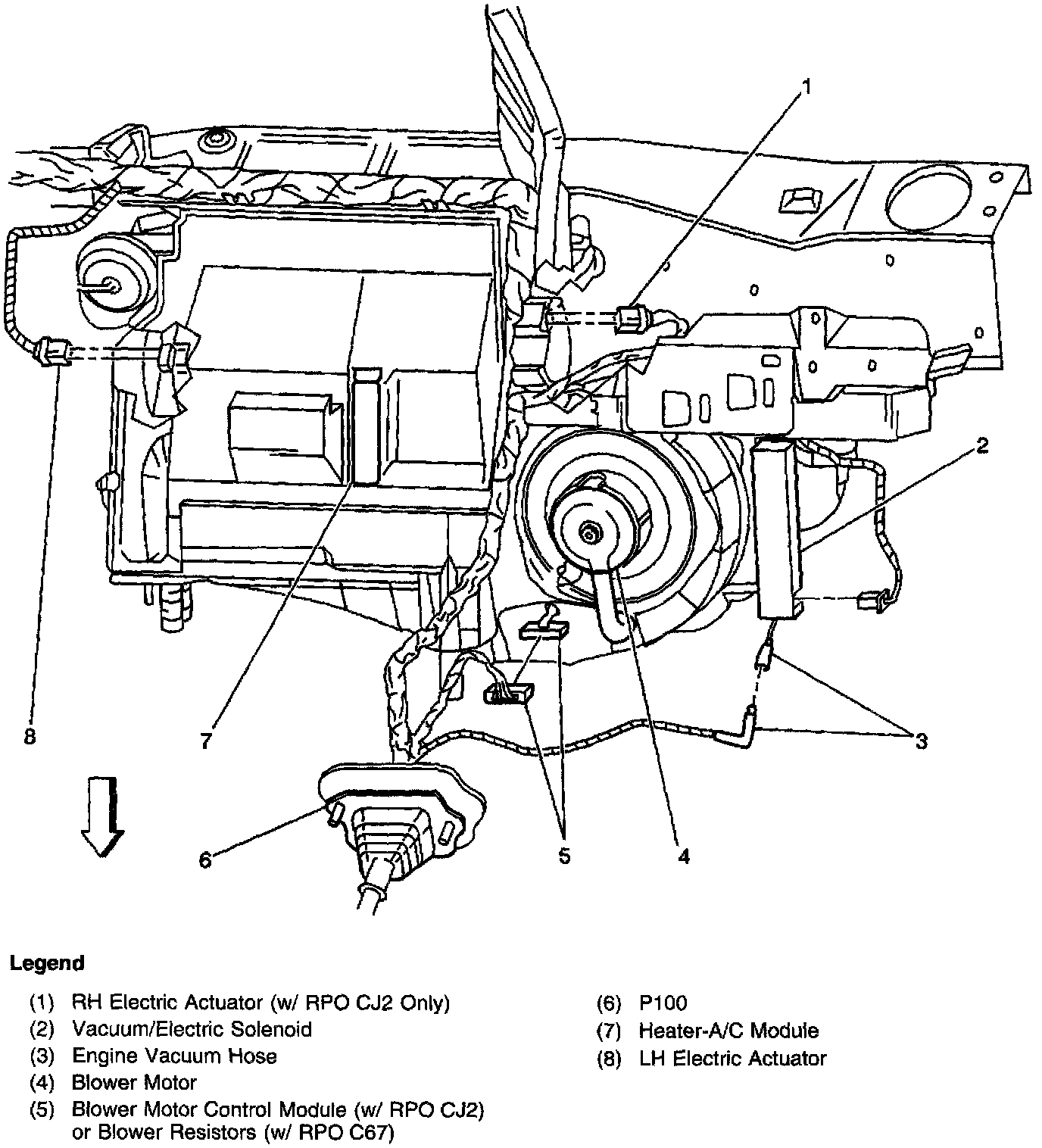

HVAC - Behind Center Of Instrument Panel (CJ2 Shown, C57 Similar):

The Blower Motor Relay is located in the Blower Motor Resistor Assembly and cannot be serviced separately. The Blower Motor Resistor Assembly is located behind the right side of the Instrument Panel (IP), in the right side of the heater-A/C module.
