Home >> Oldsmobile >> 1999 >> Intrigue V6-3.8L VIN K >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Brakes and Traction Control >> Electronic Brake Control Module >> Locations >> Component Locations >> Antilock Brake System-Delco VI >> Elec Brake Cntrl Relay, C201, G201, BCM, DRL Module & EBTCM

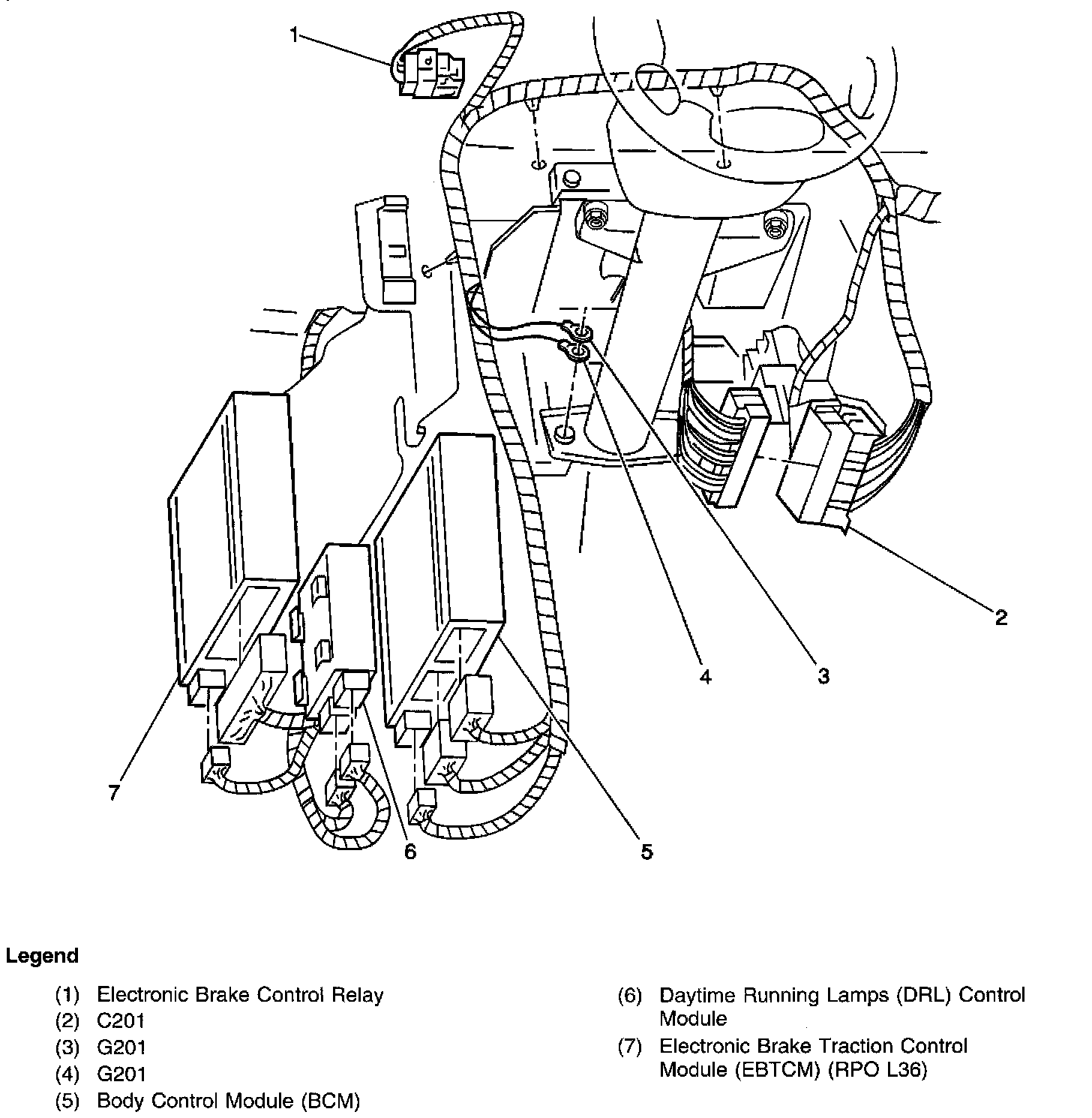

Elec Brake Cntrl Relay, C201, G201, BCM, DRL Module & EBTCM
