Accessory Delay Module: Service and Repair

Power Accessory Port Replace - Front Floor Console

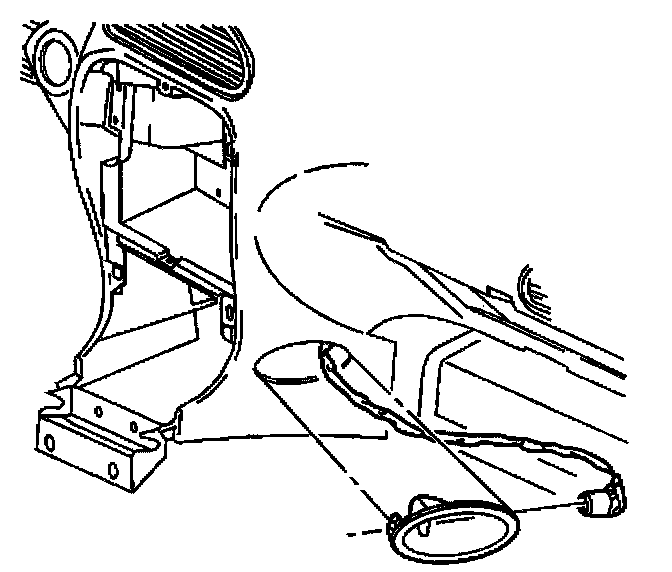

REMOVAL PROCEDURE
1. Remove the front floor console power accessory port from the front floor console by using a small flat-bladed tool.
2. Disconnect the electrical connector from the front floor console power accessory port.

INSTALLATION PROCEDURE
1. Connect the electrical connector to the front floor console power accessory port.
2. Align the front floor console power accessory port to the front floor console.
3. Press the front floor console power accessory port into the front floor console until fully seated.
