Torque Converter Clutch Solenoid: Service and Repair

Removal Procedure





1. Remove the case side cover. Refer to Case Side Cover Replacement.
2. Disconnect the transaxle wiring harness.

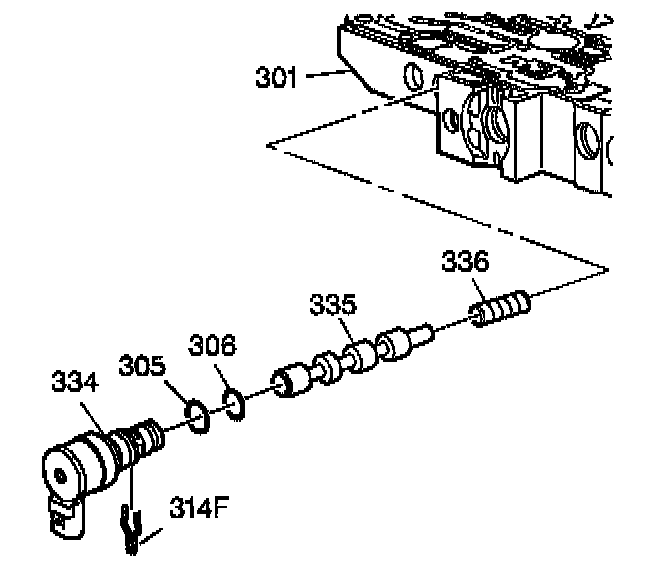

3. Remove the torque converter clutch PWM solenoid (334).


Installation Procedure





1. Install the torque converter clutch PWM solenoid (334).
2. Connect the transaxle wiring harness.
3. Install the case side cover. Refer to Case Side Cover Replacement.
