Torque Converter Clutch Solenoid: Diagrams

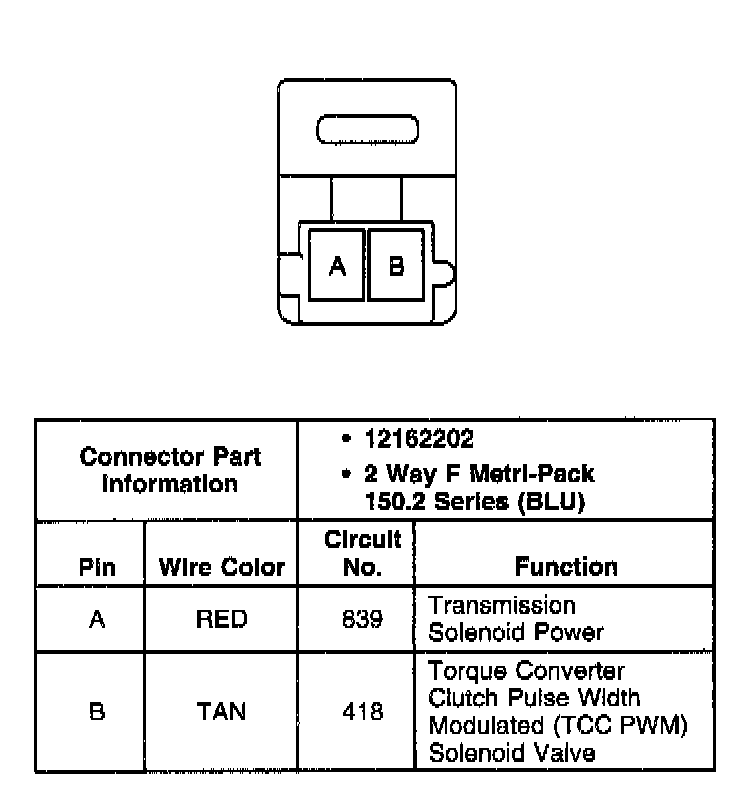

TORQUE CONVERTER CLUTCH PULSE WIDTH MODULATED (TCC PWM) SOLENOID VALVE CONNECTOR, WIRING HARNESS SIDE
