1-2 Shift Solenoid Valve Replacement

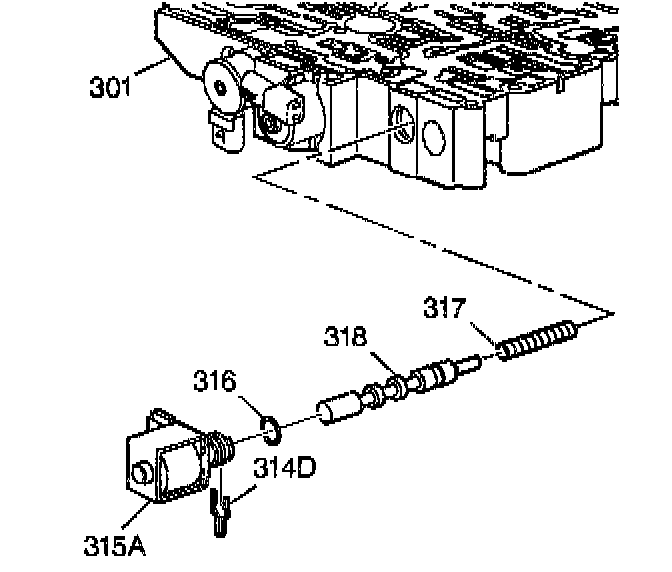

Removal Procedure





1. Remove the case side cover. Refer to Case Side Cover Replacement.
2. Disconnect the transaxle wiring harness.
3. Remove the 1-2 shift solenoid (315A).

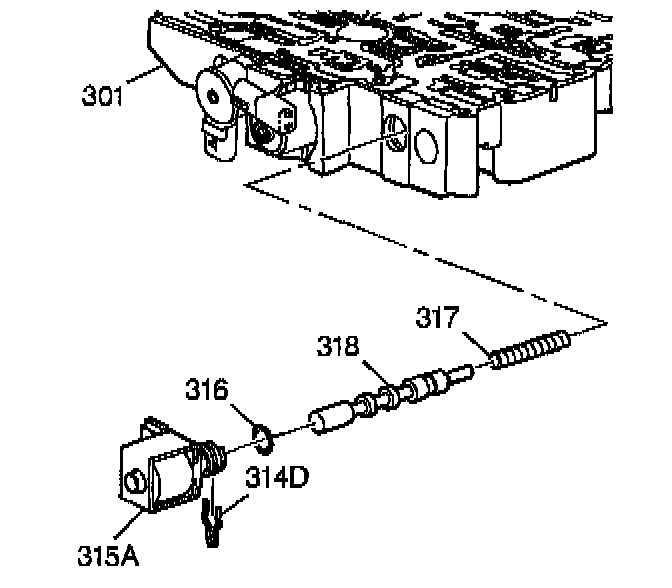

Installation Procedure





1. Install the 1-2 shift solenoid (315A).
2. Connect the transaxle wiring harness.
3. Install the case side cover. Refer to Case Side Cover Replacement.
