Shift Solenoid: Diagrams

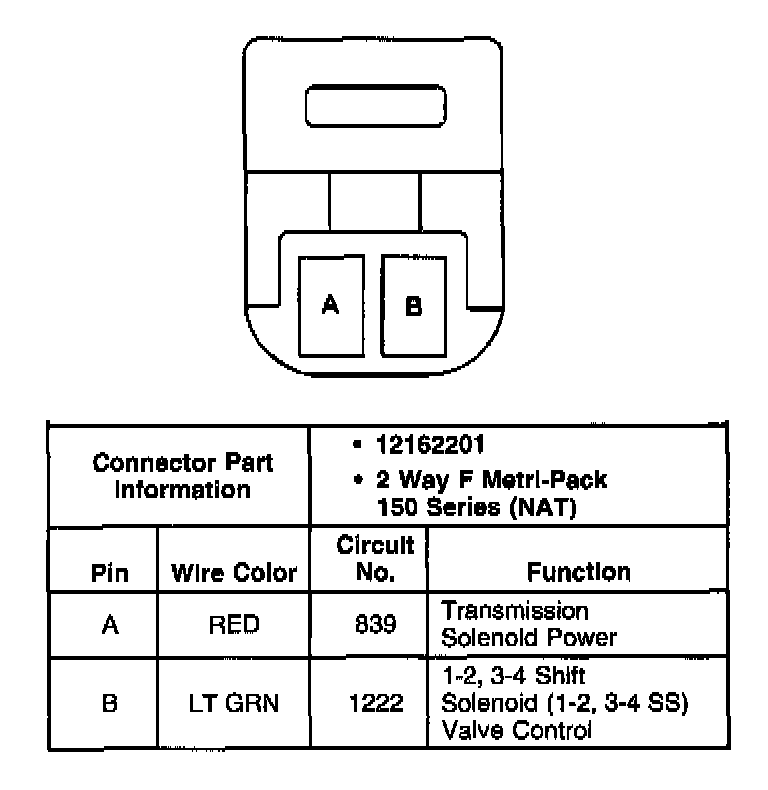

1-2, 3-4 SHIFT SOLENOID (1-2, 3-4 SS) VALVE CONNECTOR, WIRING HARNESS SIDE





2-3 SHIFT SOLENOID (2-3 SS) VALVE CONNECTOR, WIRING HARNESS SIDE
