Pressure Regulating Solenoid: Diagrams

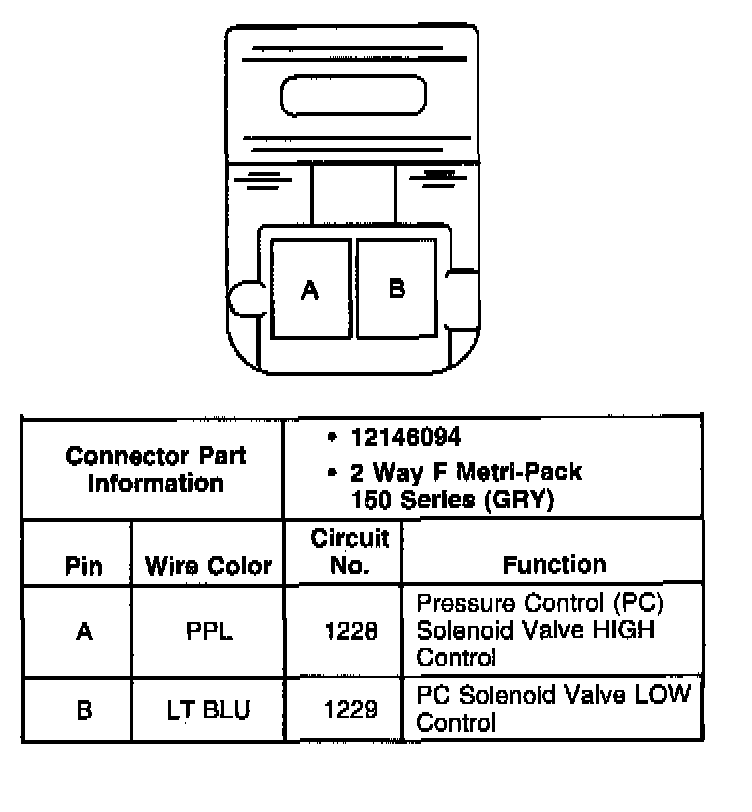

PRESSURE CONTROL (PC) SOLENOID VALVE CONNECTOR, WIRING HARNESS SIDE
