Fuel Pump Description

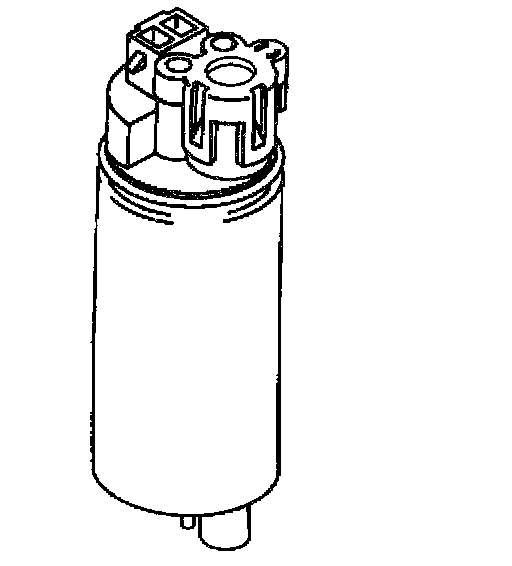

Fuel Pump:

A high pressure gerotor fuel pump is mounted to the fuel sender inside the fuel tank. The fuel is pumped to the engine at a specified flow and pressure through the fuel pump. Excess fuel is returned to the fuel tank by a return pipe. The fuel pump delivers a constant flow of fuel to the engine even during low fuel conditions and aggressive vehicle maneuvers.

The electric fuel pump operation is controlled by the powertrain control module (PCM) through a fuel pump relay.
