Oxygen Sensor
>>
Locations
>>

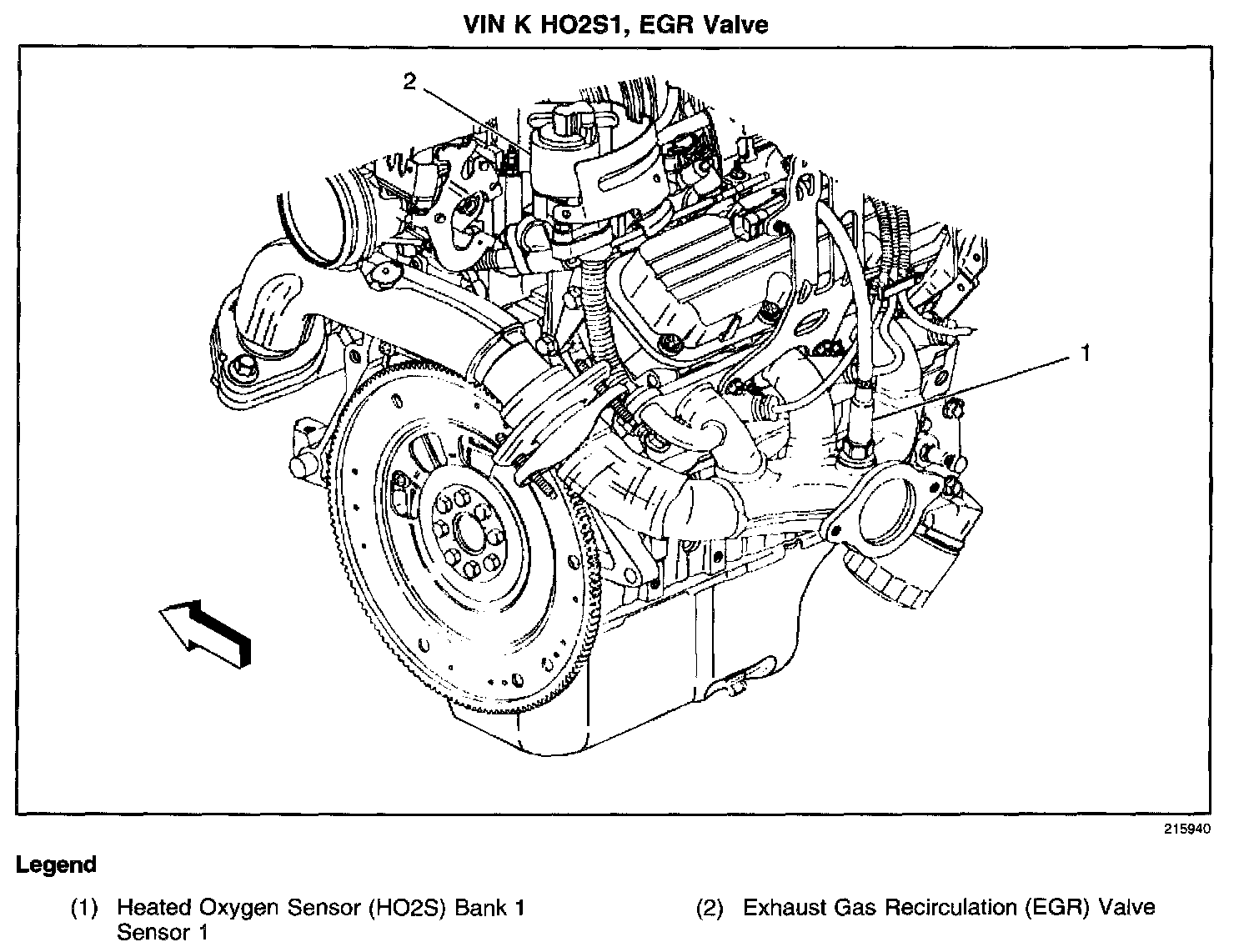

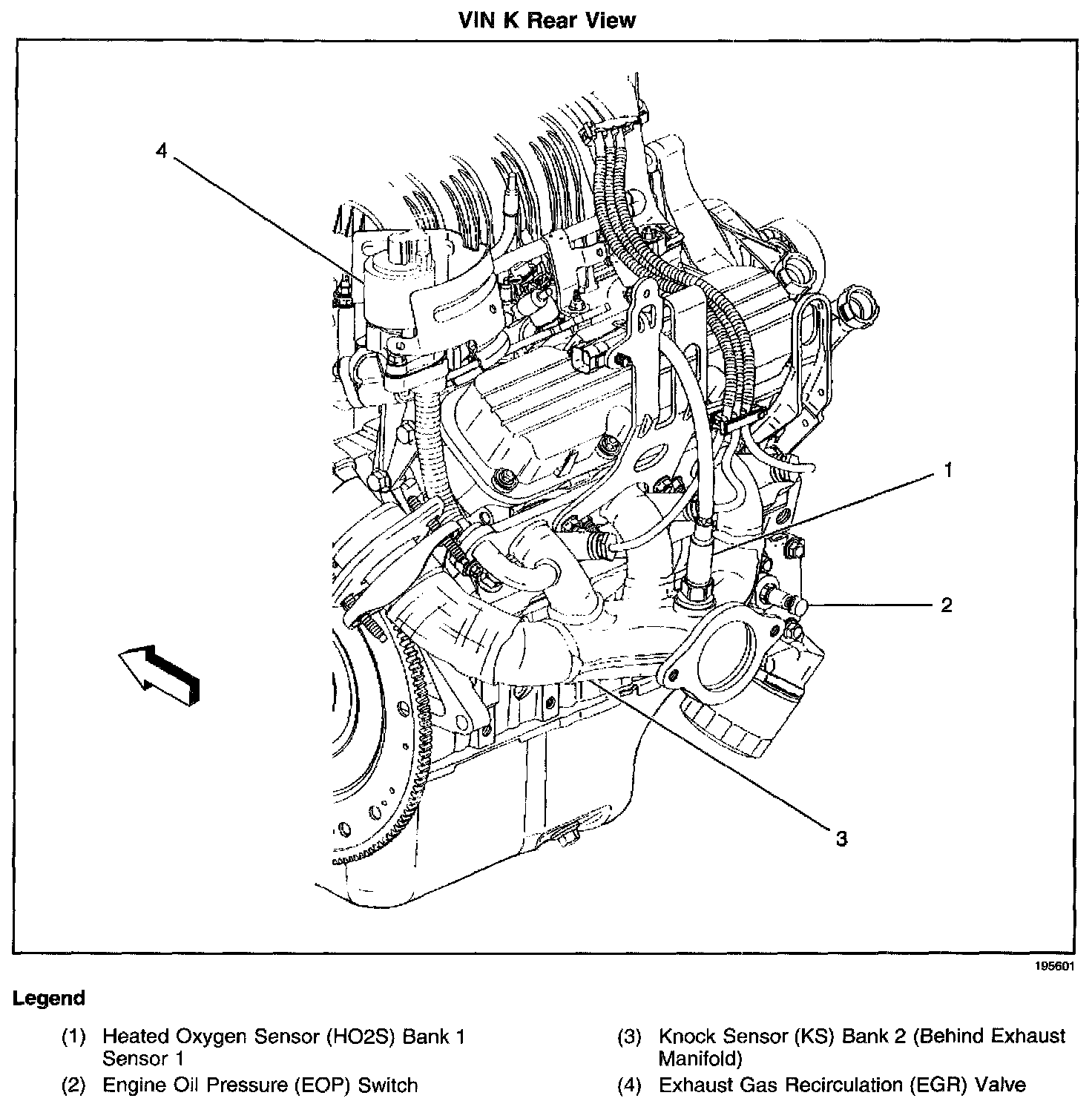

Heated Oxygen Sensor (HO2S) Sensor #1
Heated Oxygen Sensor (HO2S) Sensor #1
Locations View:
Locations View:
In rear bank exhaust manifold, behind center of engine
