BCM Power, DRL Link, Fog Lamps, And Horn

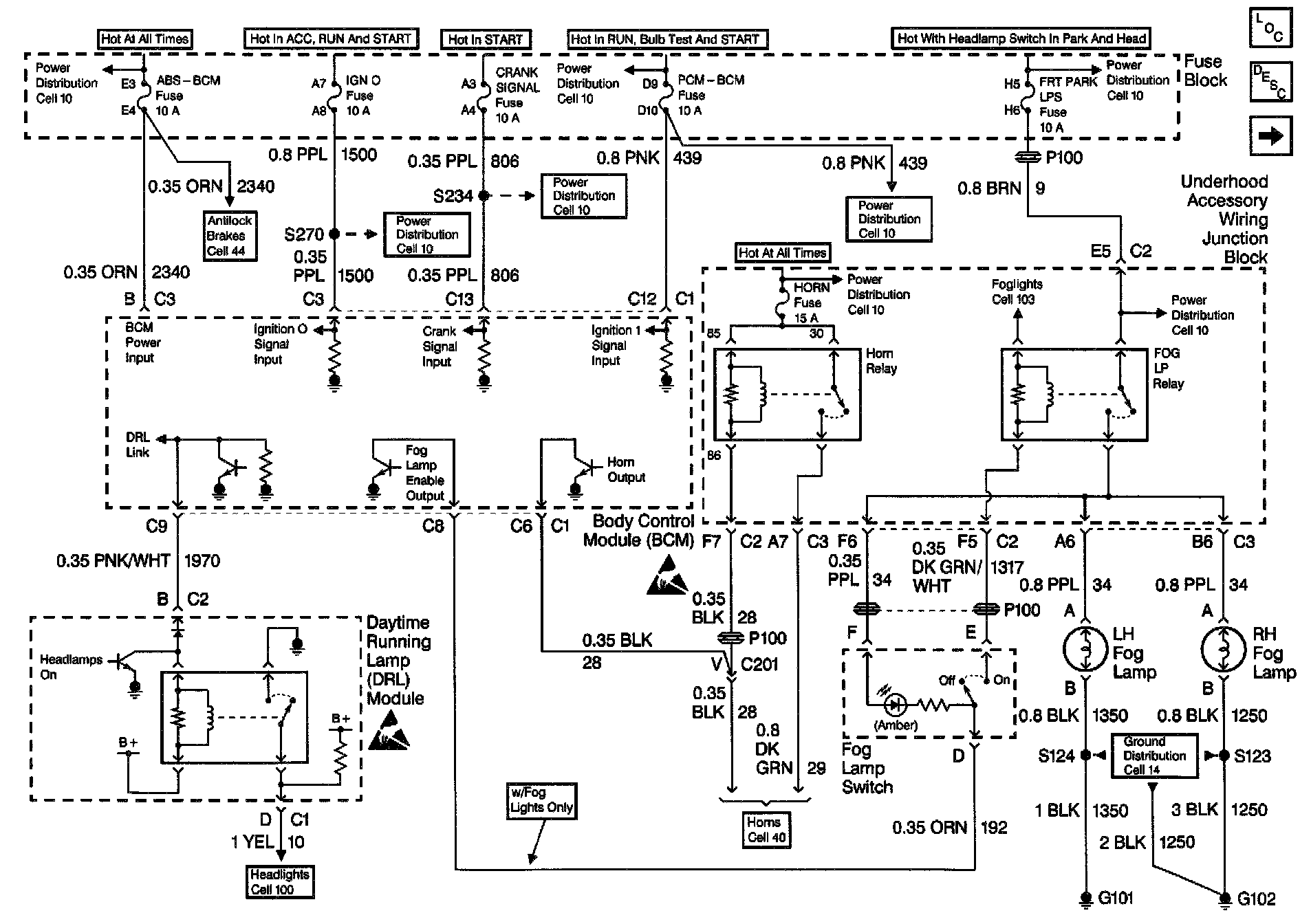

Body Control Schematics: BCM Power, DRL Link, Fog Lamps, And Horn:
