Door Lock and I/P Dimmer Switch Inputs

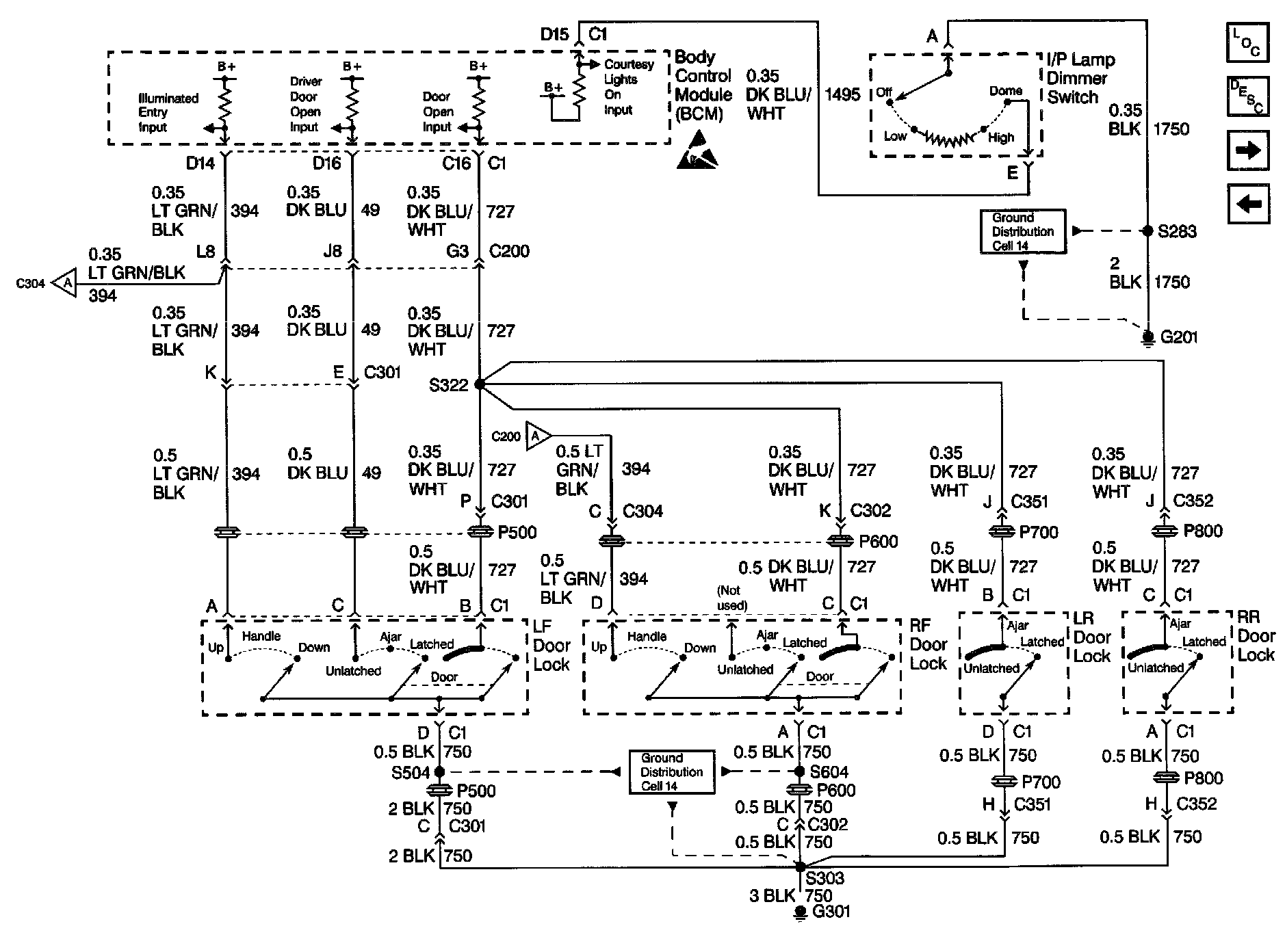

Interior Lights Schematics: Door Lock And I/P Dimmer Switch Inputs:
