Instrument Panel Cluster (IPC) - Replacement

REMOVAL PROCEDURE




IMPORTANT: The ignition switch must be in the OFF position when removing the instrument panel cluster.

1. Remove the instrument panel cluster trim plate.
2. Remove the screws from the instrument panel cluster.

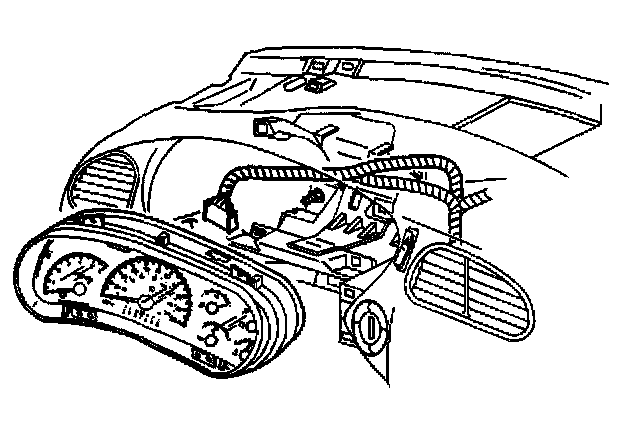

3. Disconnect the electrical connector from the instrument panel cluster.
4. Remove the instrument panel cluster from the instrument panel.

INSTALLATION PROCEDURE



1. Connect the electrical connector to the instrument panel cluster.




2. Install the instrument panel cluster to the instrument panel.

NOTE: Refer to Fastener Notice in Cautions and Notices.

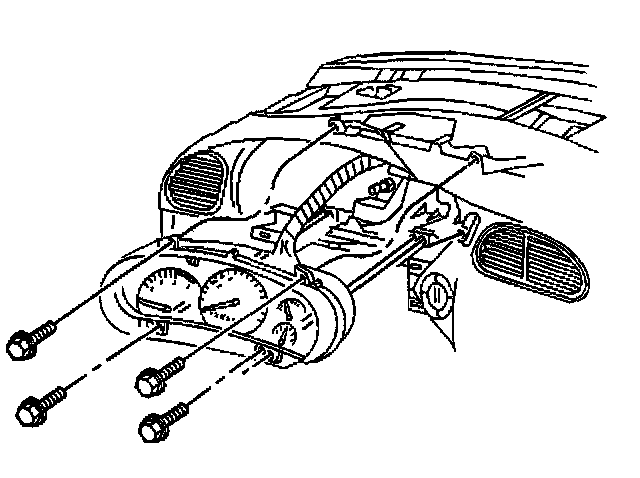

3. Install the screws to instrument panel cluster.

Tighten
Tighten the instrument panel cluster screws to 2 N.m (18 lb in).

4. Install the instrument panel cluster trim plate.
