System Check - Refrigerant - HVAC System - Automatic - VDOT

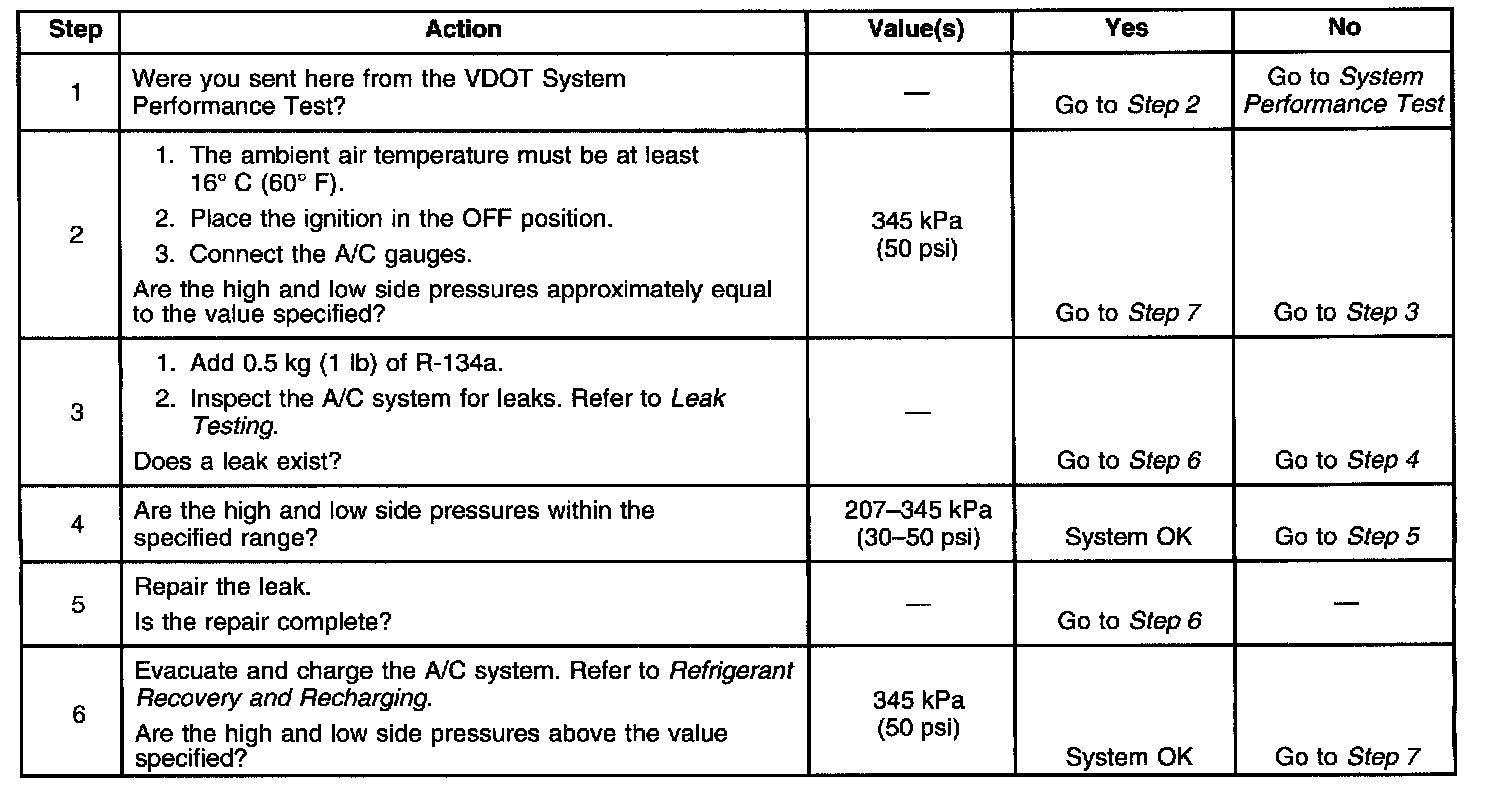

VDOT Refrigerant Charge (Part 1 Of 5):




Part 1 Of 5

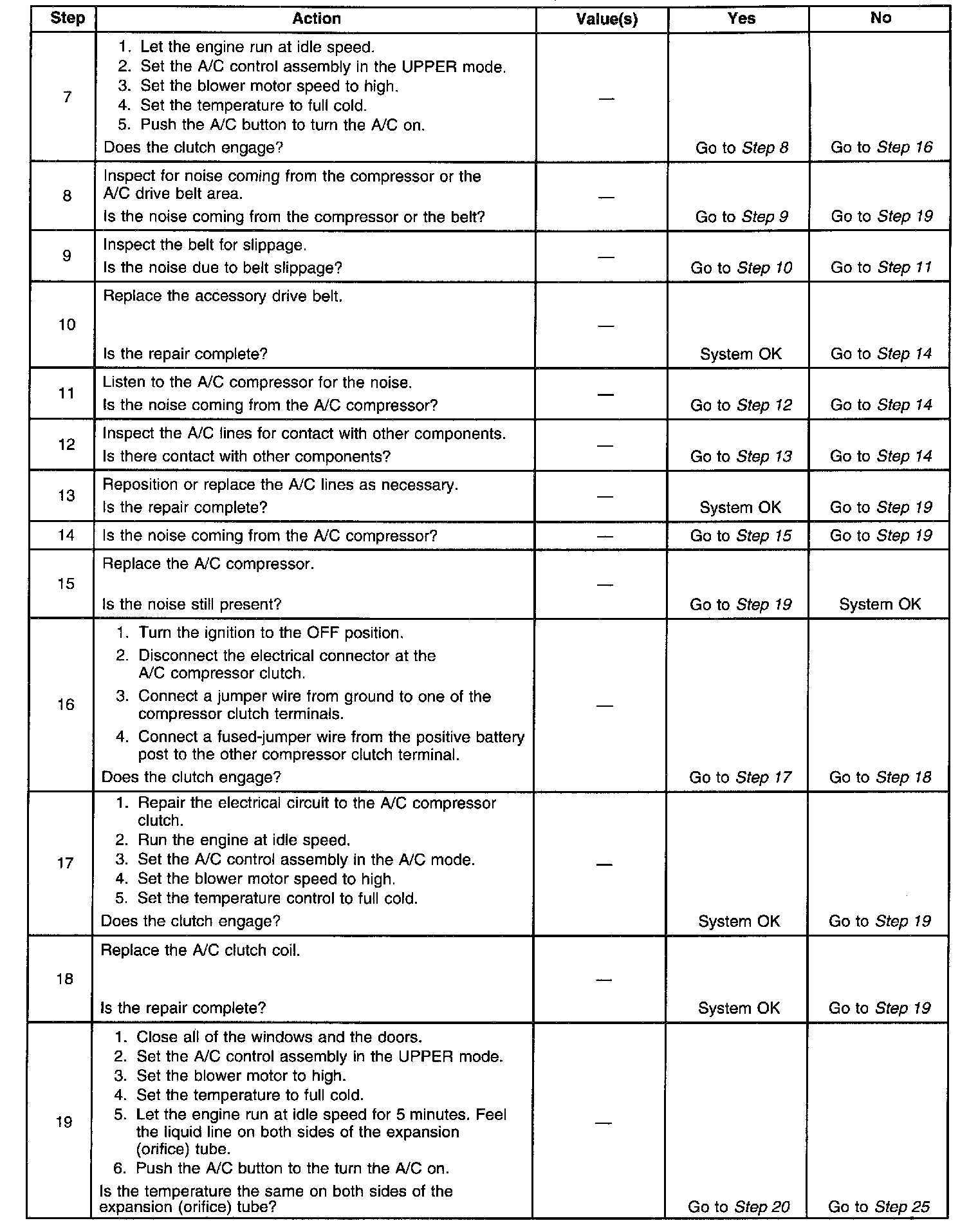

VDOT Refrigerant Charge (Part 2 Of 5):




Part 2 Of 5

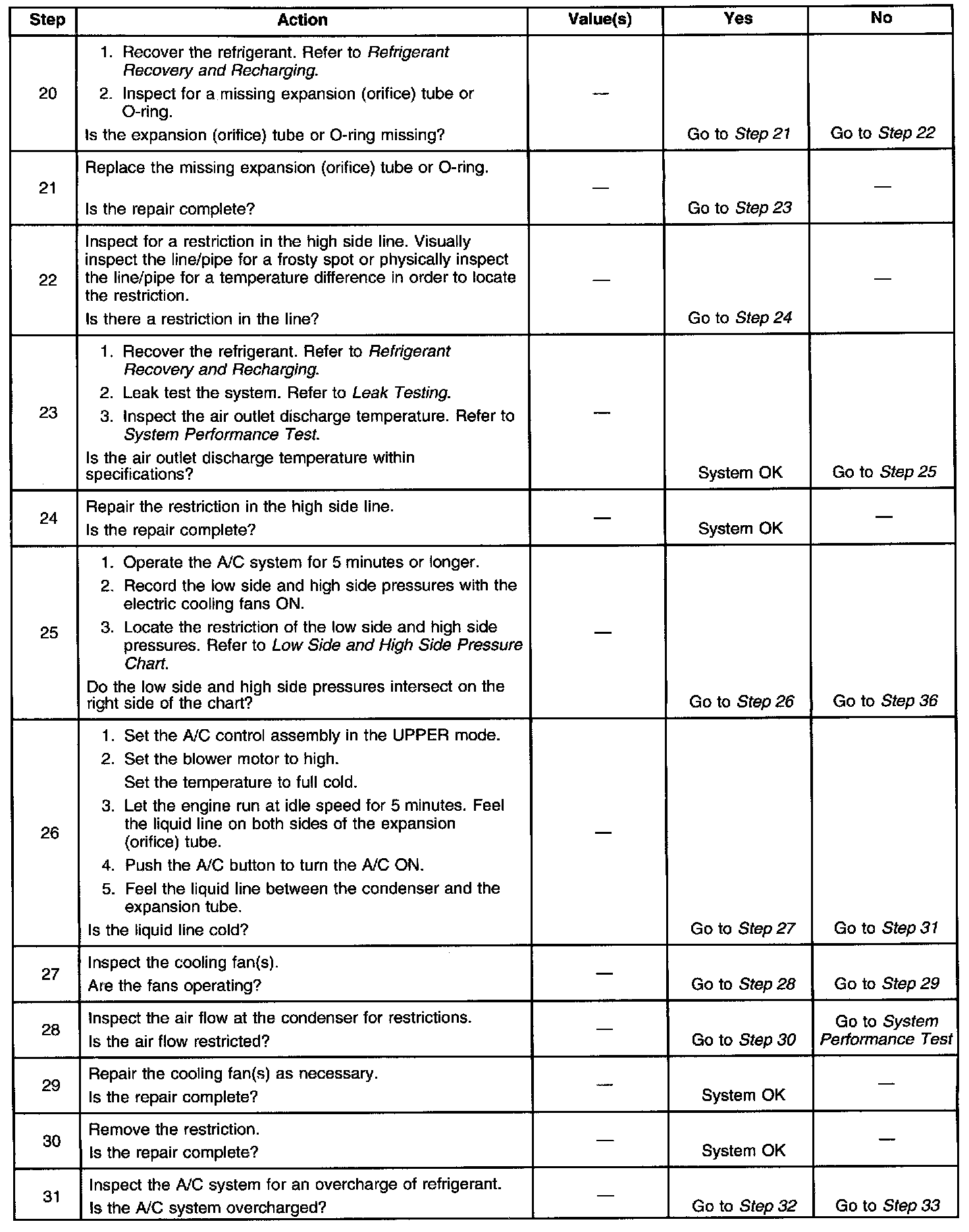

VDOT Refrigerant Charge (Part 3 Of 5):




Part 3 Of 5

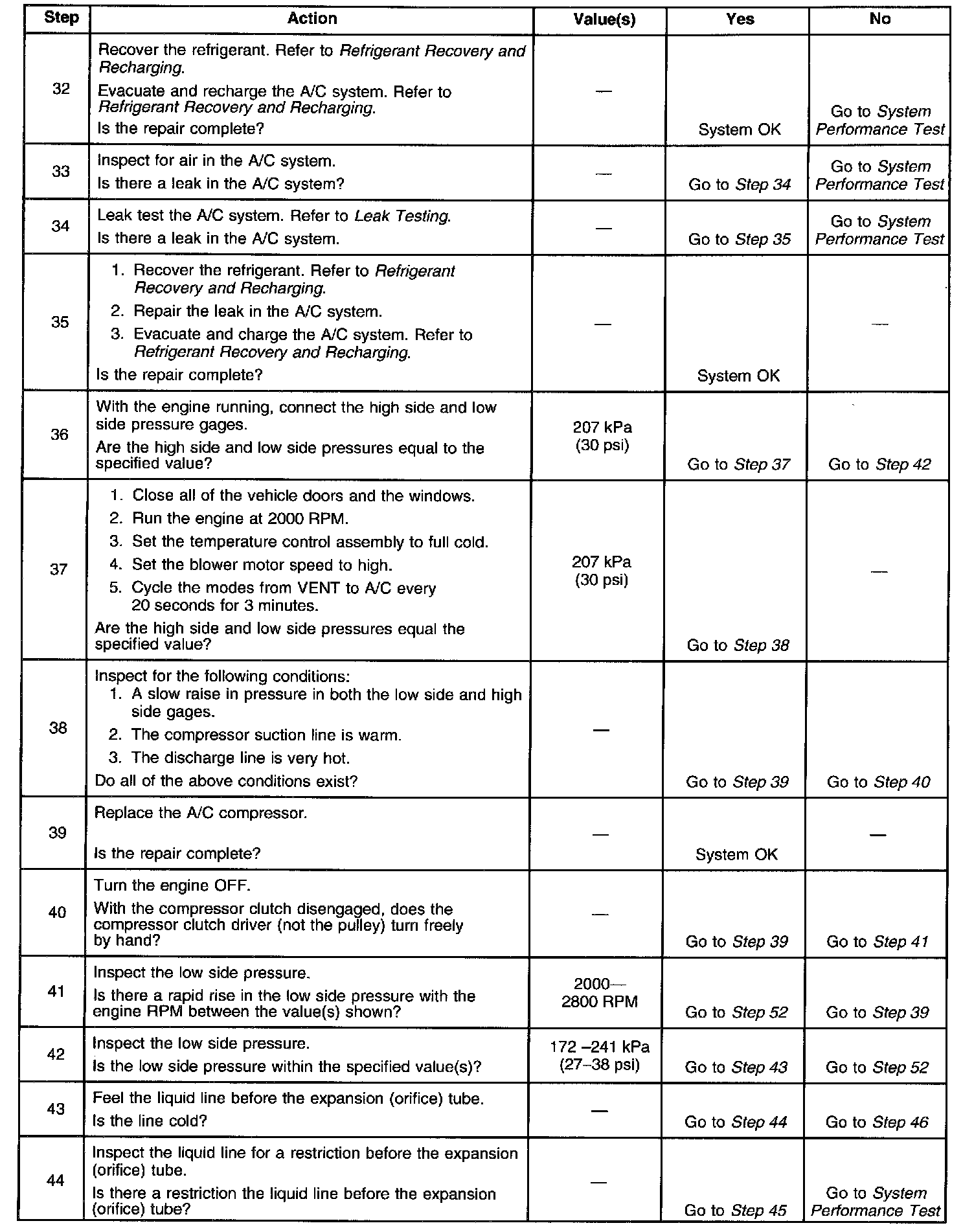

VDOT Refrigerant Charge (Part 4 Of 5):




Part 4 Of 5

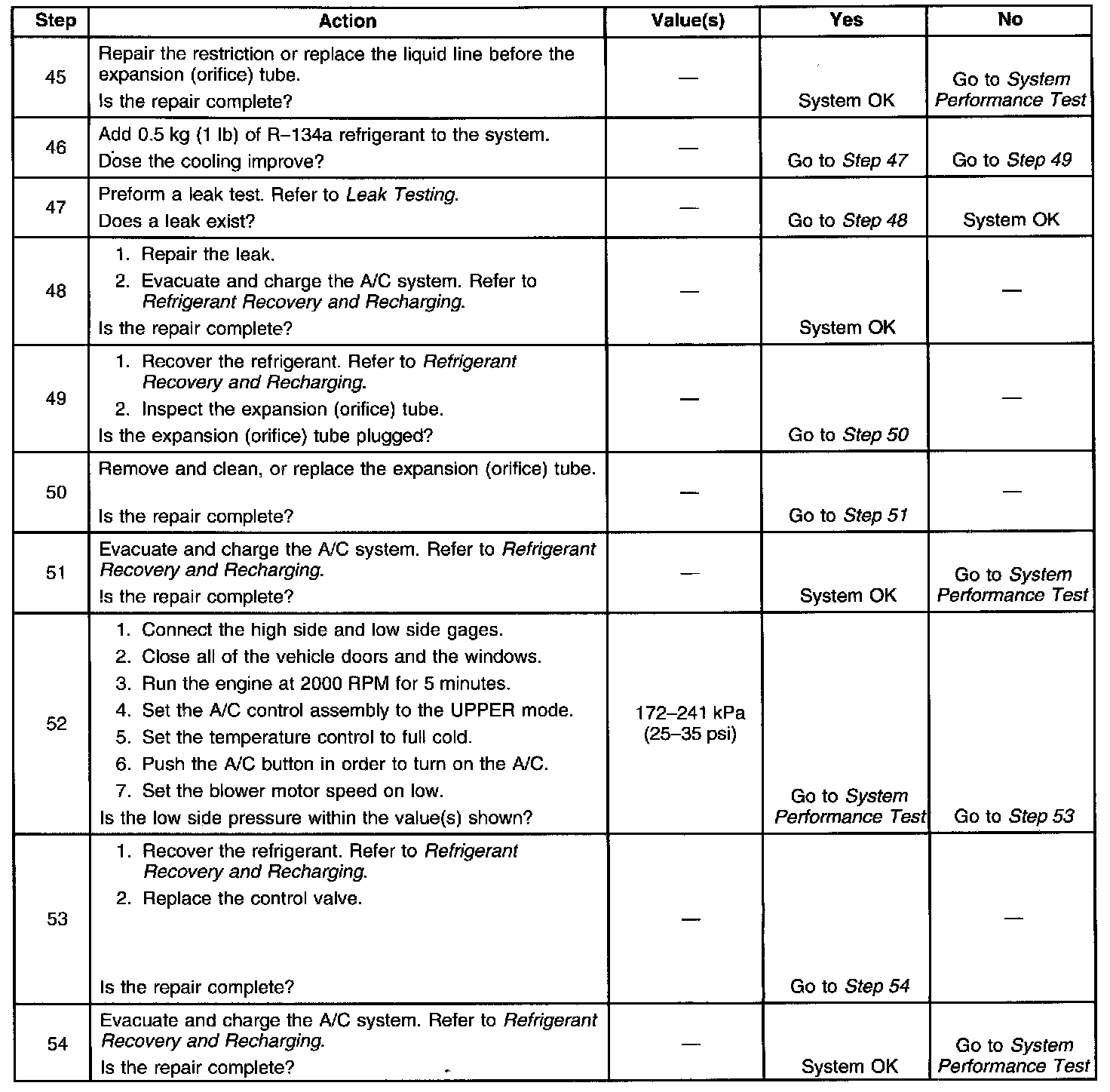

VDOT Refrigerant Charge (Part 5 Of 5):




Part 5 Of 5
