Oldsmobile
>>
1999
>>
Intrigue V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Compressor HVAC
>>
Locations
>>
HVAC System - Automatic
HVAC System - Automatic

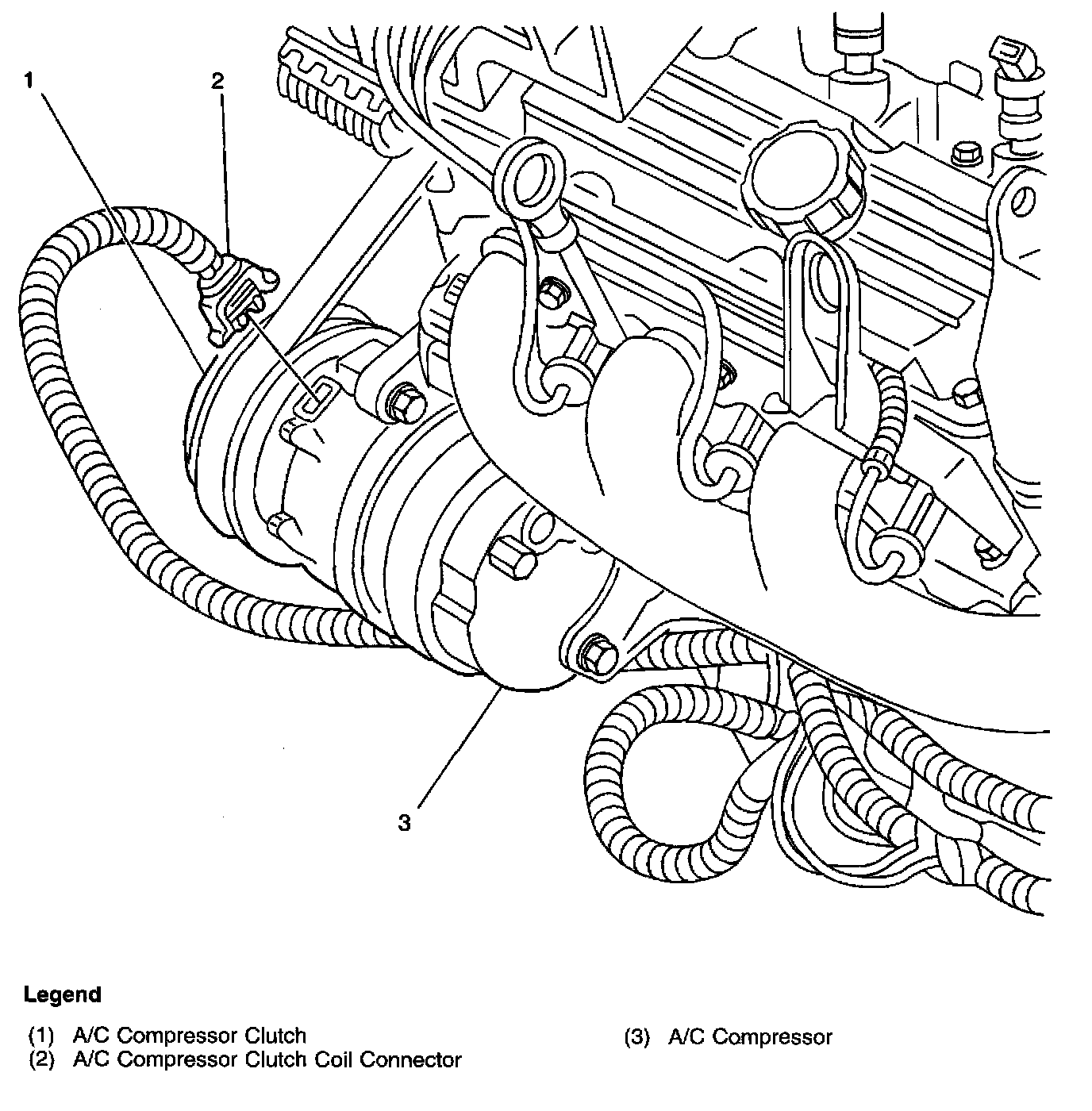

A/C Compressor - Lower Right Front Of Engine (VIN K, 1):

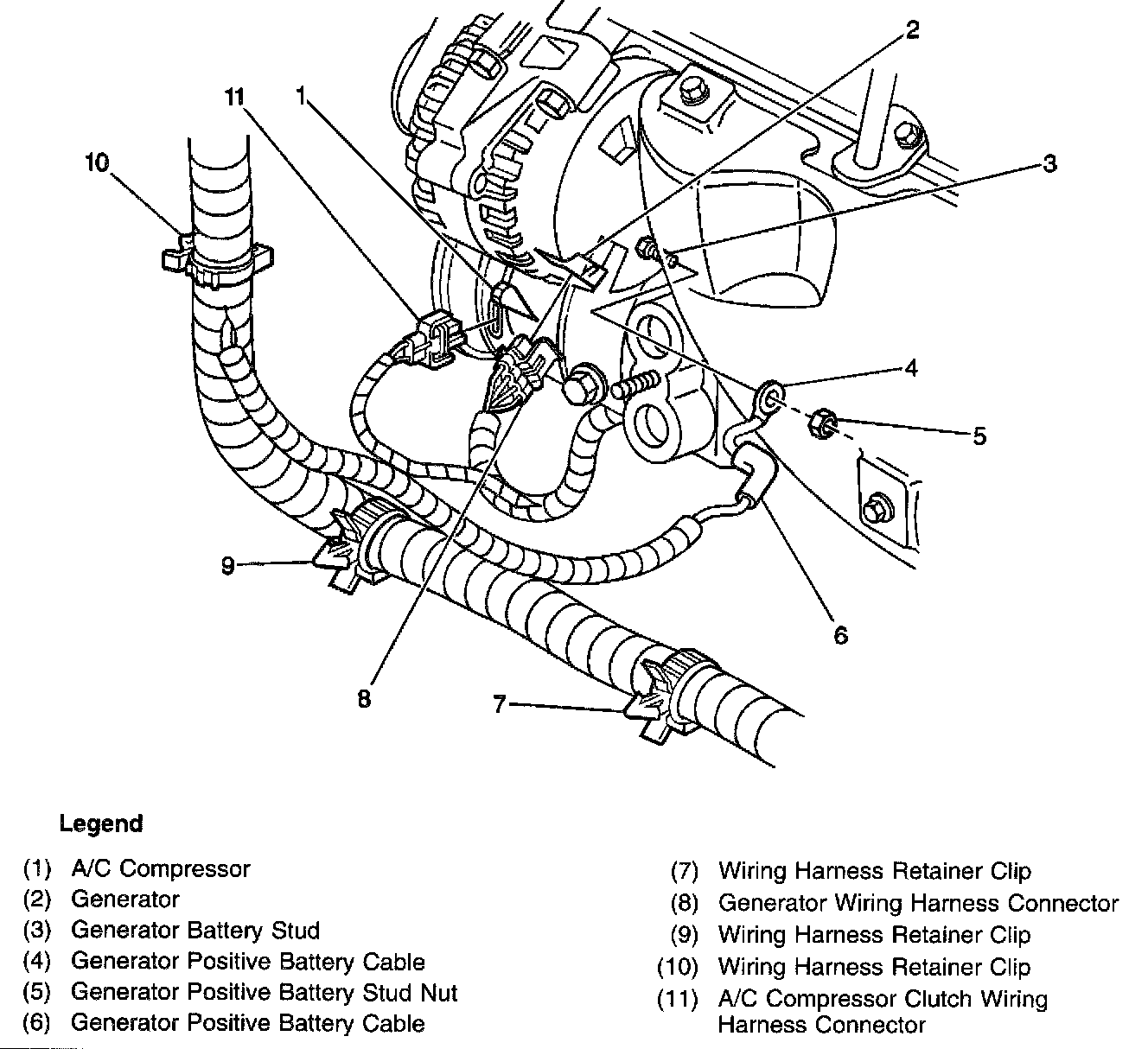

A/C Compressor Clutch And Generator (RPO LX5) - Manual A/C:
