Muffler: Service and Repair

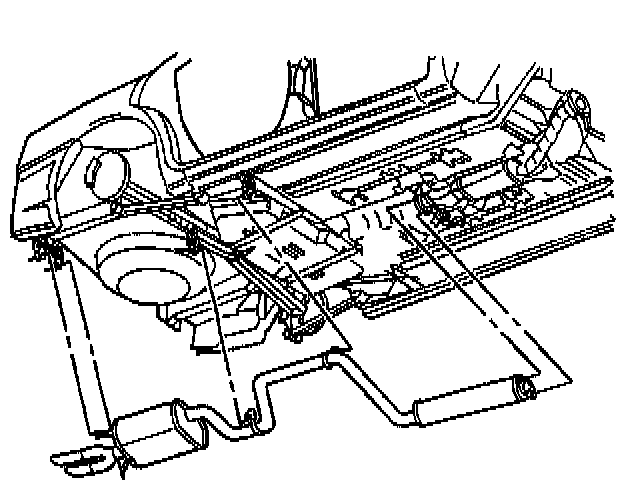

REMOVAL PROCEDURE





1. Raise and suitably support the vehicle.

Notice: Refer to Movement at the Rear of the Converter Must Not Exceed Six Degrees in Service Precautions.

2. Suitably support the exhaust system.
3. Remove the catalytic converter bolts.
4. Remove the catalytic converter gasket.





5. Remove the exhaust hanger insulators from the exhaust muffler with exhaust pipe and tail pipe.
6. Remove the exhaust muffler with exhaust pipe and tail pipe.

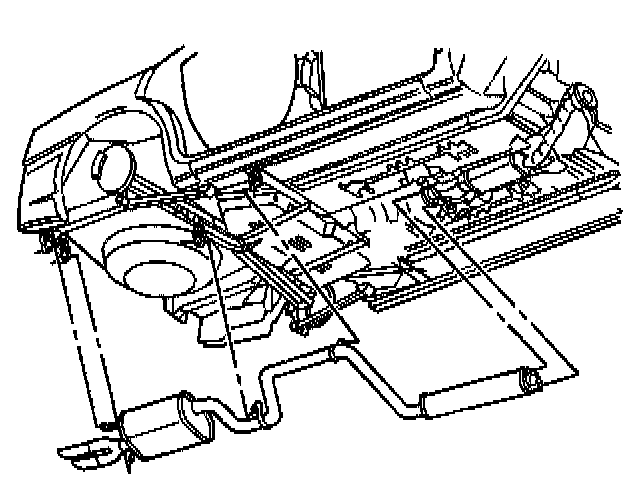

INSTALLATION PROCEDURE





1. Install and suitably support the exhaust muffler with exhaust pipe and tail pipe.
2. Install the exhaust hanger insulators to the exhaust muffler with exhaust pipe and tail pipe.





3. Install the catalytic converter gasket.
4. install the catalytic converter bolts.
^ Tighten the catalytic converter bolts to 45 Nm (33 ft. lbs.).
5. Remove the support from the exhaust system.
6. Lower the vehicle.
7. Inspect the exhaust system for leaks and underbody contact.
