Hangers Description

Exhaust system hangers and insulators provide the following benefits:
^ Support the weight of the exhaust system
^ Isolate engine noise
^ Isolate engine vibration
^ Space the exhaust system away from the underbody of the vehicle and allow for exhaust system expansion that occurs as the exhaust system warms up





^ The exhaust system utilizes several hangers and insulators:

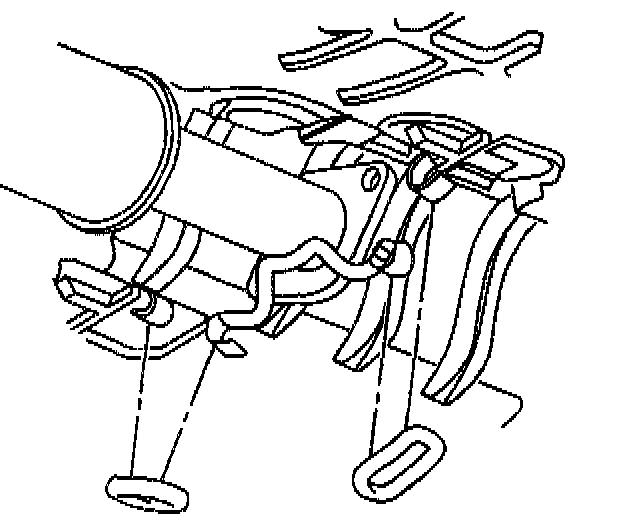

^ The exhaust resonator pipe is supported by exhaust pipe hangers.

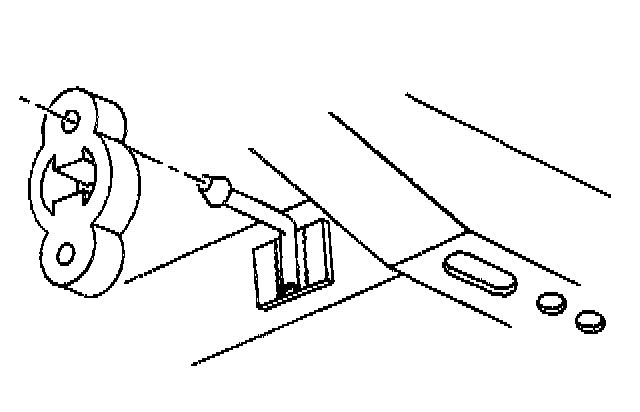

^ The exhaust pipe where it meets the right side of the vehicle is supported by the exhaust muffler front hanger bracket and an exhaust pipe hanger bracket insulator.





^ The exhaust pipe where it crosses under the rear suspension is supported with the exhaust pipe rear hanger bracket and an exhaust pipe rear hanger insulator.

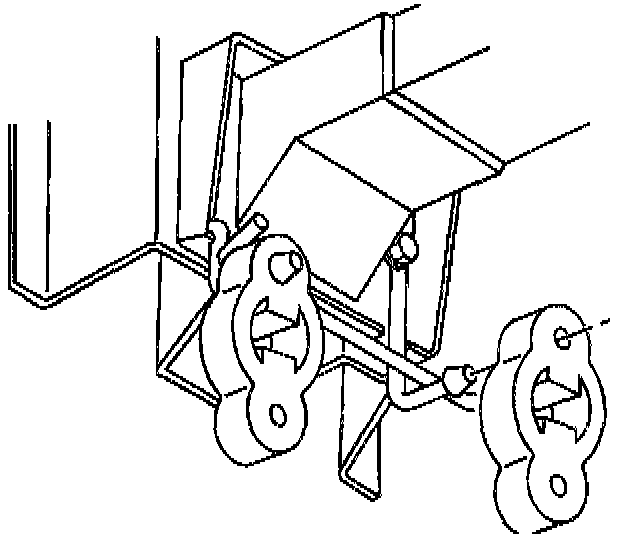

^ The rear of the muffler has two exhaust muffler rear hanger insulators and a exhaust muffler rear hanger bracket bolted to the bumper impact bar.
