Converter Heat Shield Replacement

REMOVAL PROCEDURE





1. Remove the catalytic converter.
2. Remove the catalytic converter heat shield rivets.

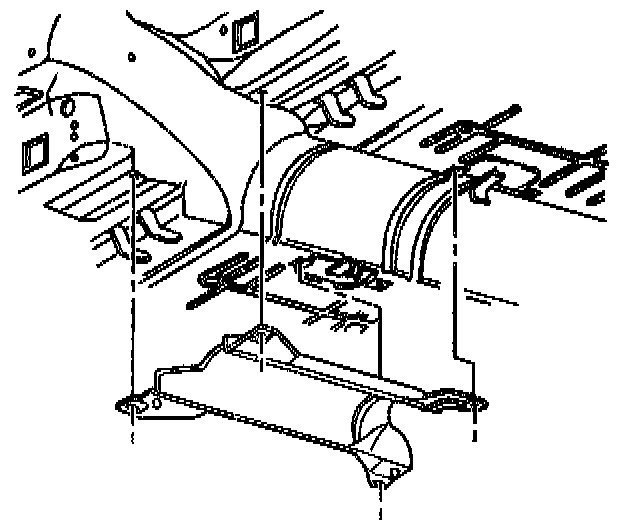

3. Remove the catalytic converter heat shield.


INSTALLATION PROCEDURE





1. Install the catalytic converter heat shield.

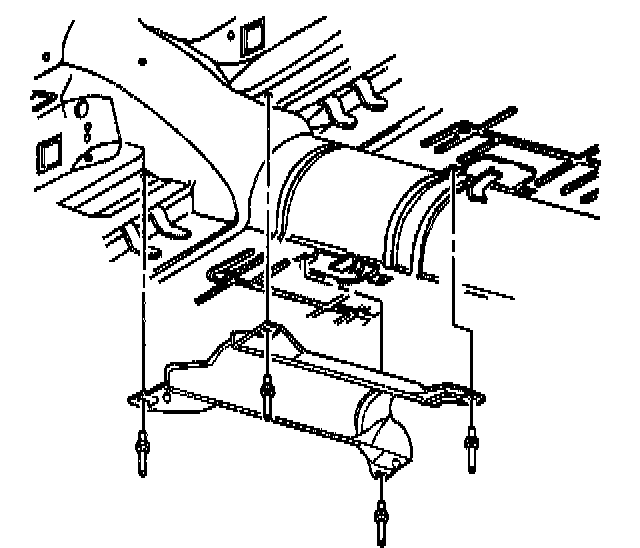

2. Install the converter heat shield rivets.
3. Install the catalytic converter.
