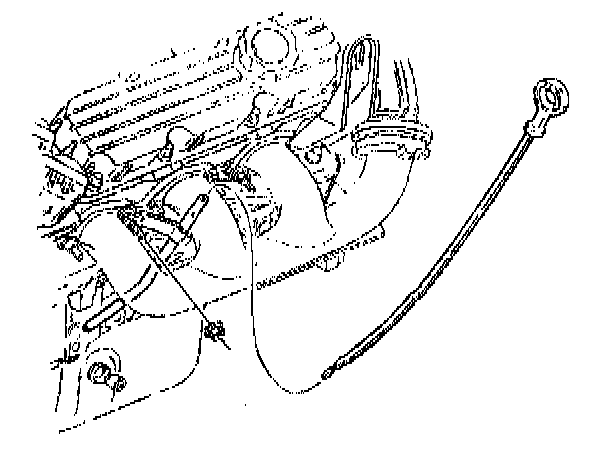

90. Oil Level Indicator and Tube Installation

1. Install the oil level indicator tube. Lubricate the O-ring with engine oil and make sure it is in place. Make sure the assembly is fully seated in the engine block.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the oil level indicator tube nut.
^ Tighten the nut to 20 Nm (15 ft. lbs.).
