77. Crankshaft Balancer Installation

^ Tools Required
- J 37096 Flywheel Holding Tool
- J 36660 Torque Angle Meter





1. Lubricate the seal surface of the crankshaft balancer with engine oil.

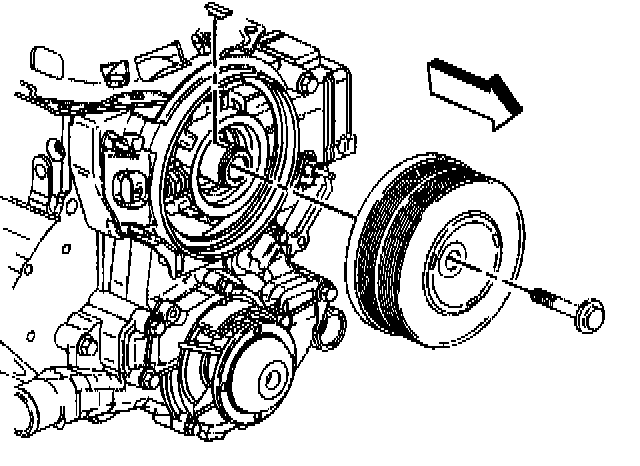

2. Install the crankshaft balancer.

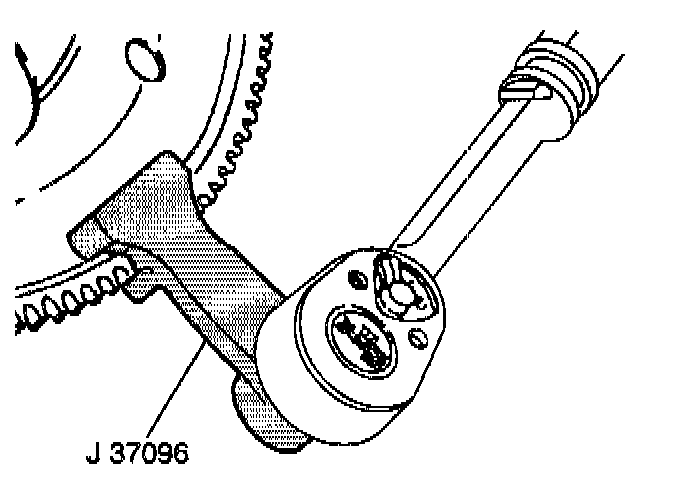

3. Use J 37096 to hold the flywheel.





Notice: Refer to Permanently Stretching Bolt Notice in Service Precautions.

Notice: Refer to Fastener Notice in Service Precautions.

4. Install the crankshaft balancer bolt.
^ Tighten the crankshaft balancer bolt to 150 Nm (111 ft. lbs.). Use J 36660 to tighten the crankshaft balancer bolt an additional 76°.
