72. Timing Chain and Sprockets Installation

^ Tools Required
- J 36660 Torque Angle Meter

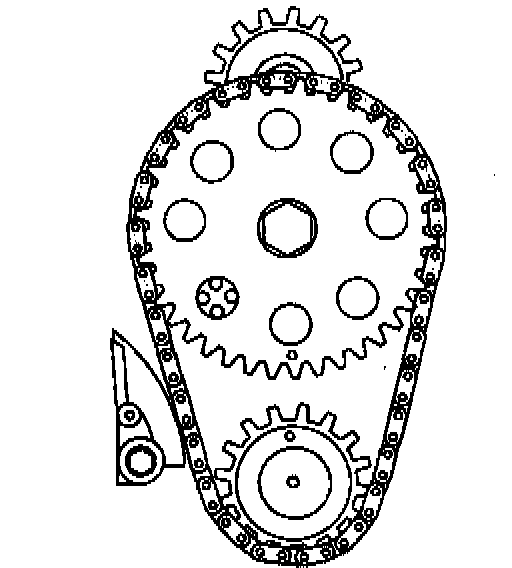

1. Install the timing chain on the sprockets. Align the timing marks.

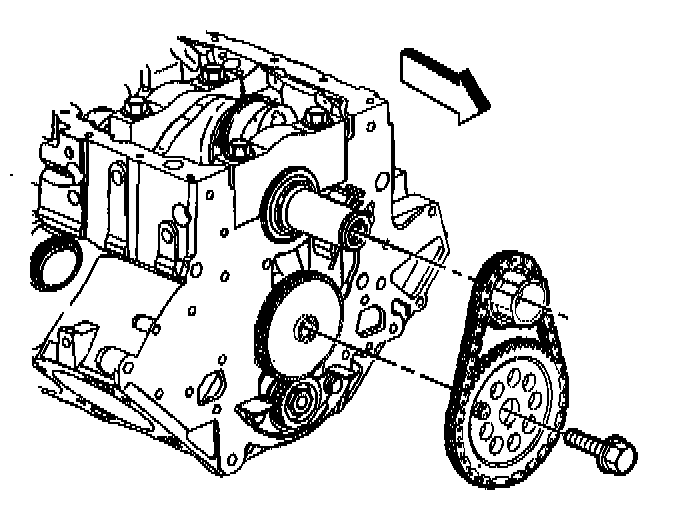

2. Install the timing chain, the crankshaft sprocket, and the camshaft sprocket.

Notice: Refer to Permanently Stretching Bolt Notice in Service Precautions.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the camshaft sprocket bolt.
^ Tighten the camshaft sprocket bolt to 100 Nm (74 ft. lbs.). Use J 36660 to tighten the camshaft sprocket bolt an additional 90°.

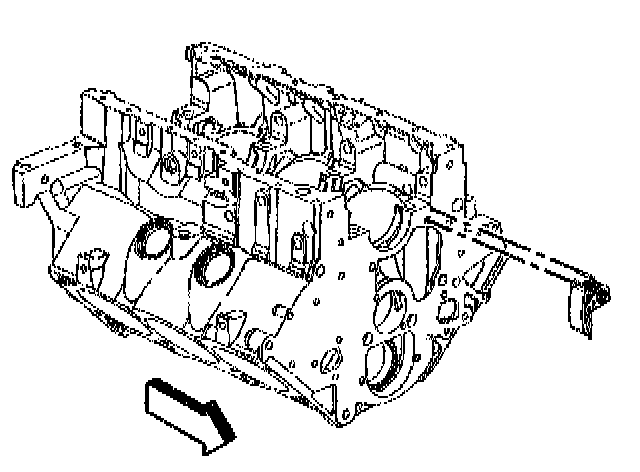

4. Install the timing chain dampener.
