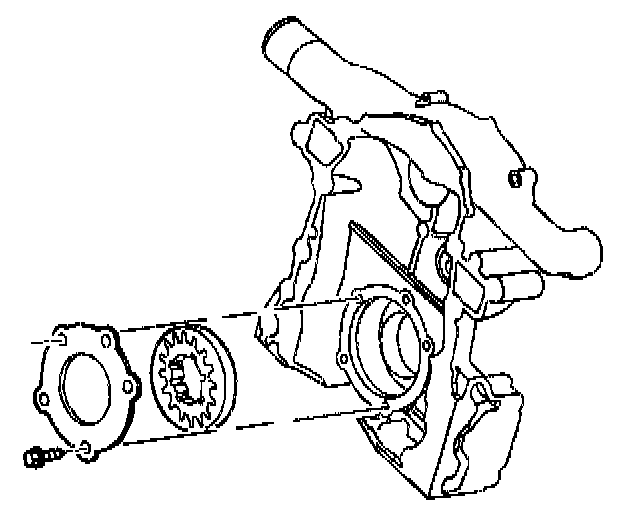

21. Oil Pump Cover and Gear Set Removal





1. Remove the oil pump cover screws.
2. Remove the oil pump cover.
3. Remove the oil pump gears.
