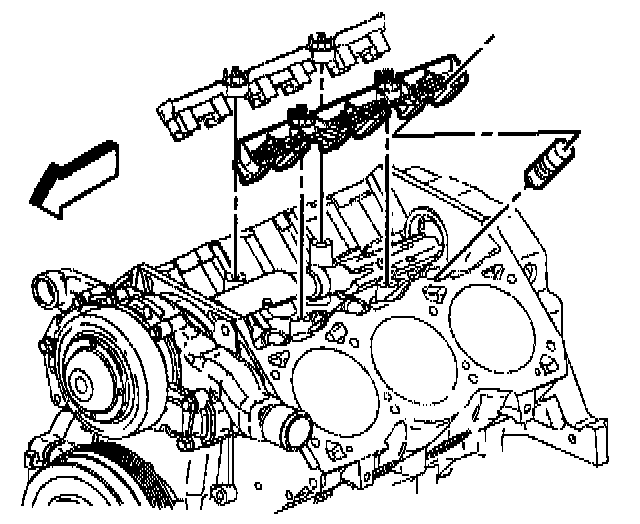

16. Valve Lifter Removal
16. Valve Lifter Removal
1.
Remove the
valve guide
retainer bolts.
2.
Remove the
valve guide
retainers.
3.
Remove the valve lifters.
