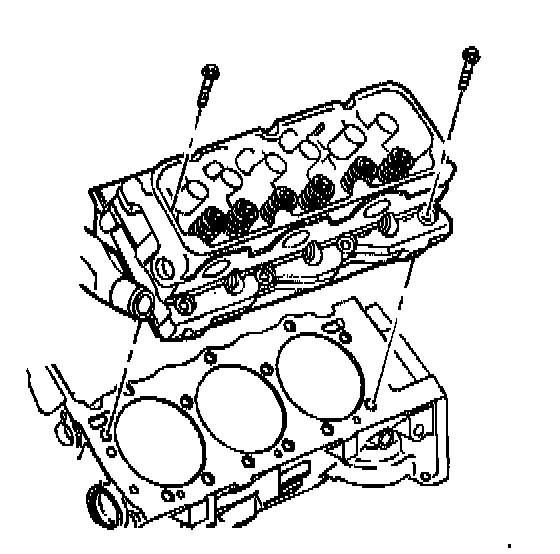

15. Cylinder Head Removal - Left and Right
15. Cylinder Head Removal - Left and Right
1.
Remove the
cylinder head bolts
.
2.
Discard the
cylinder head bolts
.
3.
Remove the cylinder head.
4.
Remove the
cylinder head gasket
.
