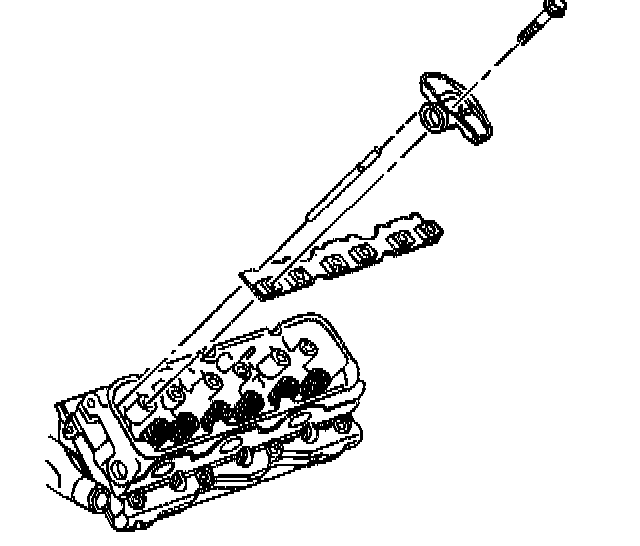

14. Valve Rocker Arm and Push Rod Removal





1. Remove the valve rocker arm bolts.
2. Remove the valve rocker arm.
3. Remove the push rods.
