Oil Level Sensor: Service and Repair

ENGINE OIL LEVEL SWITCH REPLACEMENT

REMOVAL PROCEDURE
1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in general information.
2. Drain the engine oil.
3. Disconnect the electrical connector from Engine Oil Level Switch

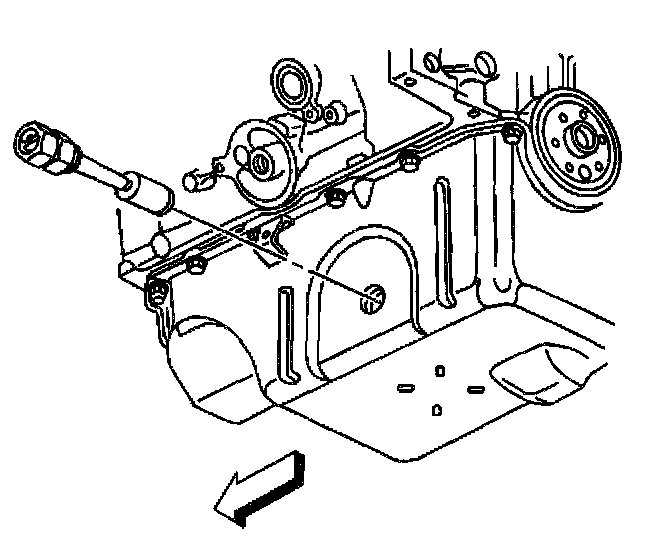

4. Remove the Engine Oil Level Switch from the oil pan.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.

1. Install the Engine Oil Level Switch.

Tighten
Torque the Engine Oil Level Switch to 22 N.m (16 lb ft).

2. Lower the vehicle.
3. Add the engine oil to the correct level. For the crankcase oil capacity, refer to Maintenance and Lubrication.
4. Connect the negative battery cable.
