Oil Pump Cover: Service and Repair

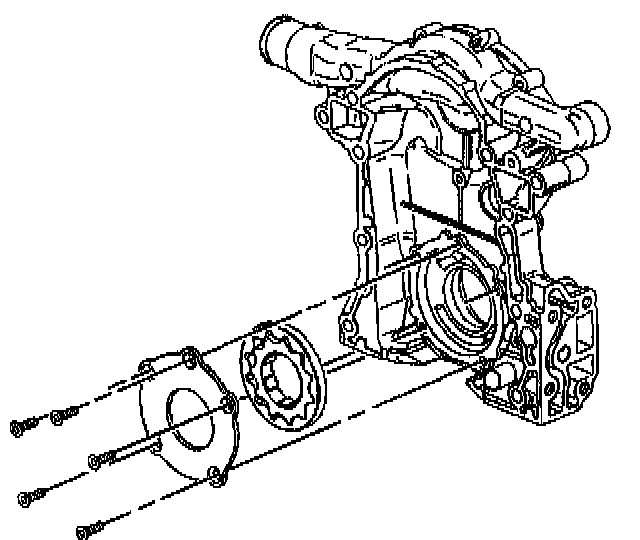

REMOVAL PROCEDURE





1. Remove the engine front cover.
2. Remove the oil pump cover attaching screws.
3. Remove the oil pump cover.
4. Remove the oil pump gear set.
5. Inspect the oil pump gear set and housing.

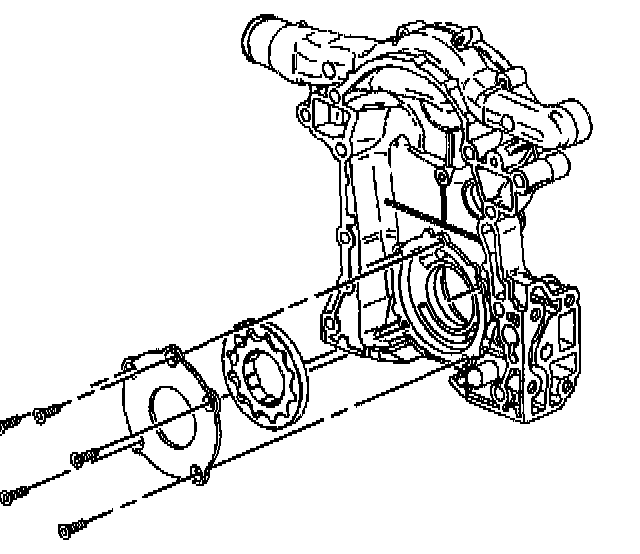

INSTALLATION PROCEDURE





1. Lubricate the oil pump gears with petroleum jelly.
2. Install the oil pump gear set.
3. Pack the oil pump gears with petroleum jelly.
4. Install the oil pump cover.

Notice: Refer to Fastener Notice in Service Precautions.

5. Install the oil pump cover screws.
^ Tighten the oil pump cover screws to 11 Nm (98 inch lbs.).
6. Install the engine front cover.

Notice: Do not run the engine until the oil pressure is tested. Running the engine without measurable oil pressure will cause extensive damage.

Notice: Stop the engine and remove the oil pan if the oil pressure does not build up immediately. Check the oil pump pipe and the screen for a clogged screen, damaged pipe, or a damaged gasket. Running the engine without measurable oil pressure will cause extensive damage.

7. Inspect the oil pressure.
8. Inspect for the proper fluid levels.
9. Inspect for leaks.
