Oil Pan: Service and Repair

REMOVAL PROCEDURE

- J 28467-90A Engine Support Adapters
- J 28467-B Universal Engine Support Fixture





1. Disconnect the battery ground (negative) cable.
2. Carefully disconnect the throttle body air inlet duct.
3. Remove the engine mount struts from the engine.
4. Remove the drive belt.
5. Install the J 28467-90A and the J 28467-B. Do not raise the engine.
6. Raise and suitably support the vehicle.
7. Disconnect the three-way catalytic converter pipe from the right (rear) exhaust manifold.
8. Remove the right front tire and wheel.
9. Remove the right engine splash shield.
10. Drain the engine oil.

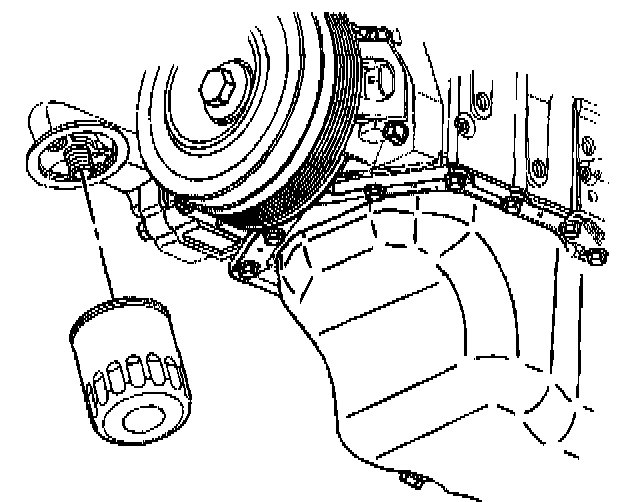

11. Remove the oil filter.

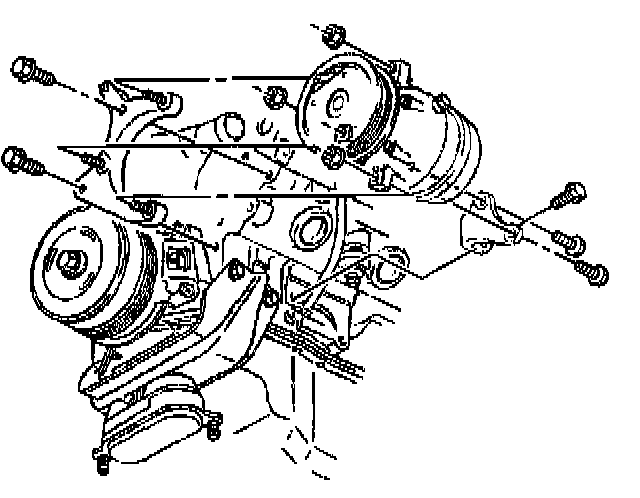

12. Remove the AC compressor bracket bolts. Reposition and secure the AC compressor.
13. Disconnect the power steering oil cooler pipe brackets from the frame.
14. Remove the engine mount bracket bolts from the engine.
15. Remove the engine mount lower nuts.
16. Remove the torque converter cover.
17. Disconnect the oil level sensor wiring harness connector.

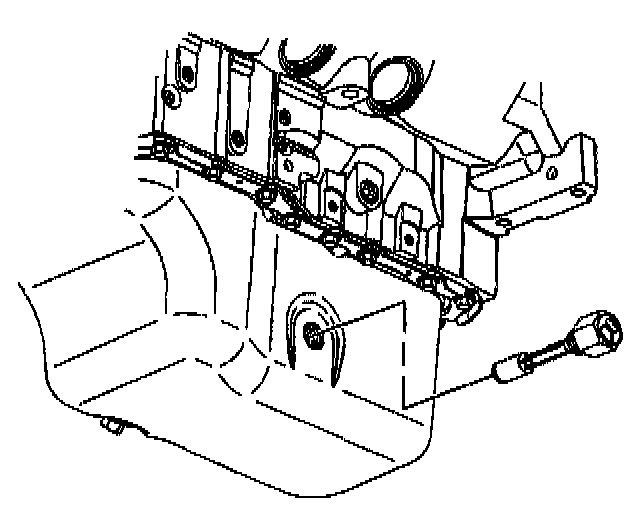

Notice: Remove the oil level sensor, located in the oil pan, before the oil pan is removed. The sensor may be damaged if the oil pan is removed first.

18. Remove the oil level sensor.
19. Lower the vehicle.
20. Use the J28467-B in order to raise the engine.
21. Raise and suitably support the vehicle.
22. Suitably support the frame. Loosen the left side frame bolts. Remove the right side frame bolts. Lower the frame for access.
23. Remove the engine mount and the engine mount bracket.

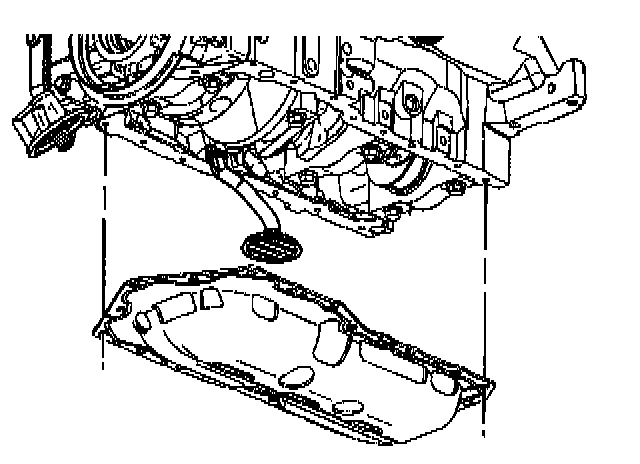

24. Remove the oil pan retaining bolts.
25. Lower the oil pan.
26. Remove the oil pan.

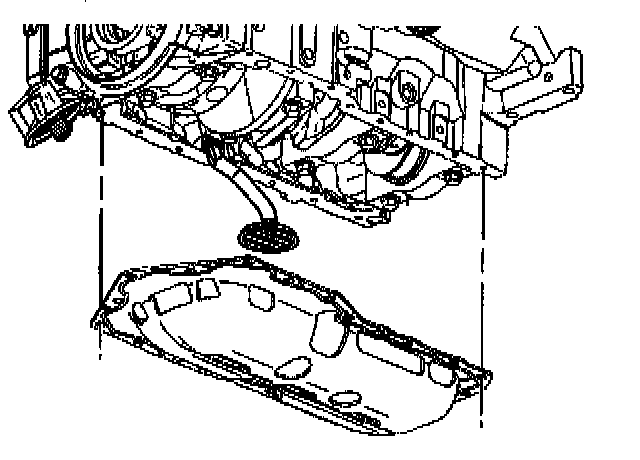

27. Remove the oil pump pipe and screen and the oil pan gasket.
28. Clean the following parts:
^ The oil pan bolts
^ The oil pan flanges
^ The oil pan rail
^ The front cover
^ The rear main bearing cap
^ The threaded holes


INSTALLATION PROCEDURE

Notice: Install the oil level sensor, located in the oil pan, after the oil pan is installed. The sensor may be damaged if the oil level sensor is installed first.

Notice: Refer to Fastener Notice in Service Precautions.





1. Install the oil pan gasket and the oil pump pipe and screen assembly.
^ Tighten the oil pump pipe and screen bolts to 15 Nm (11 ft. lbs.).

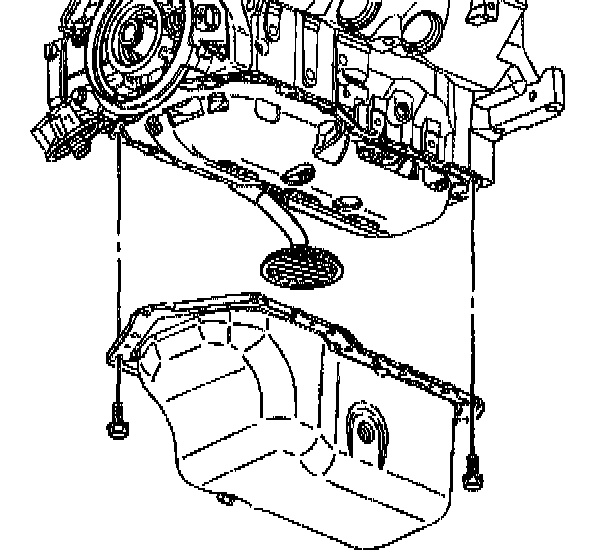

2. Install the oil pan.
3. Clean the oil pan bolts. Apply one drop of thread lock compound GM P/N 12345382 or equivalent to the cleaned oil pan bolt threads.

Important: Do not overtighten bolts or damage to the oil pan may occur, resulting in an oil leak.

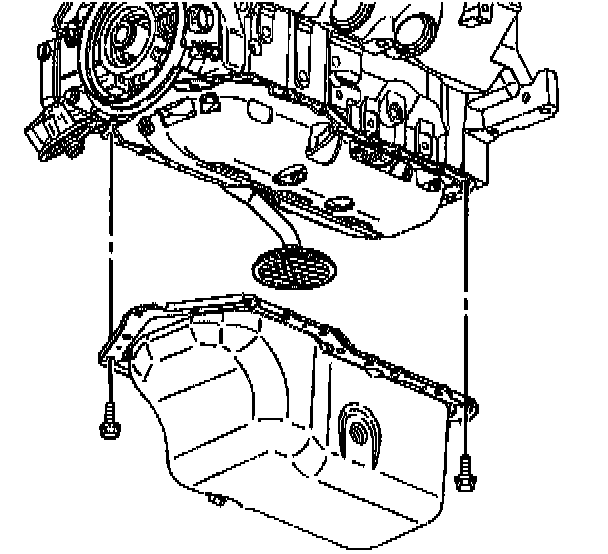

4. Install the oil pan bolts.
^ Tighten the oil pan bolts to 14 Nm (125 inch lbs.).
5. Place the engine mount bracket and the engine mount to the proper position. Install the engine mount bracket bolts to the engine.
6. Install new right side frame bolts. Make sure the frame is suitably supported. Install new left side frame bolts.
7. Lower the vehicle.
8. Use the J 28467-B in order to lower the engine.
9. Raise and suitably support the vehicle.
10. Install the engine mount lower nuts.
^ Tighten the engine mount lower nuts to 47 Nm (35 ft. lbs.).

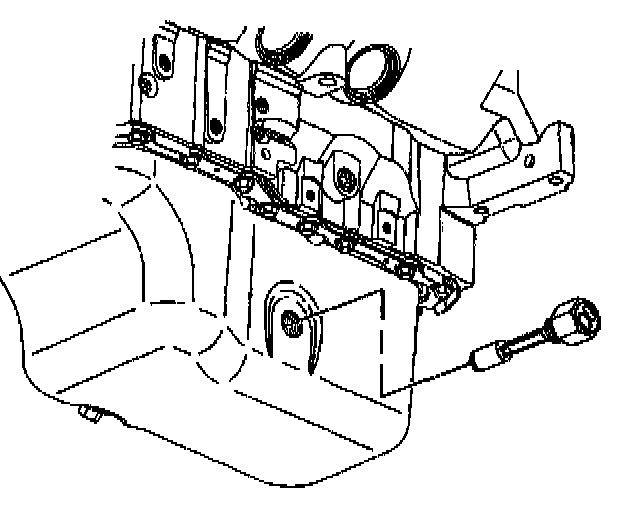

11. Install the oil level sensor.
^ Tighten the oil level sensor to 20 Nm (15 ft. lbs.).
12. Connect the oil level sensor wiring harness connector.
13. Install the torque converter cover.
14. Connect the power steering oil cooler pipe brackets to the frame.

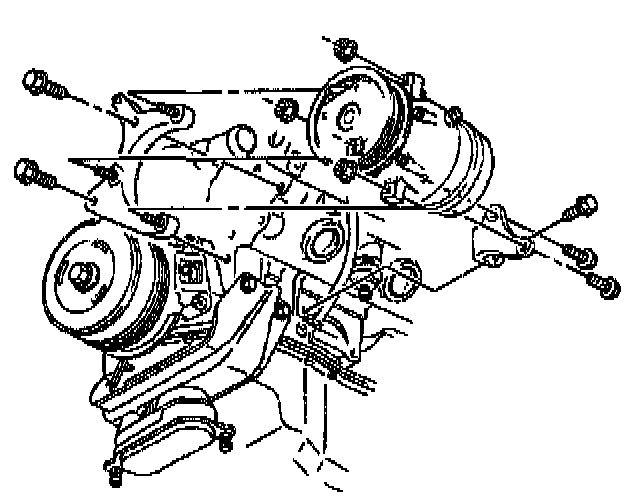

15. Install the AC compressor bracket bolts.

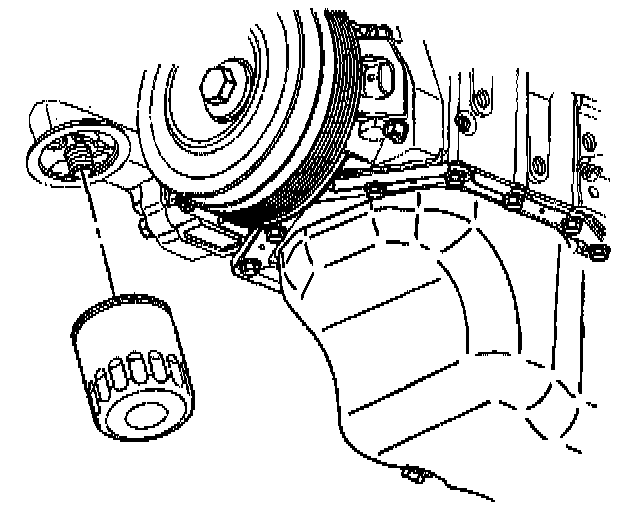

16. Install the new oil filter.
17. Install the oil pan bolt.
18. Install the right engine splash shield.
19. Install the right front tire and wheel.
20. Connect the three-way catalytic converter pipe to the right (rear) exhaust manifold.
21. Lower the vehicle.
22. Remove the J 28467-B and the J 28467-90A.
23. Install the drive belt.
24. Install the engine mount struts to the engine.
25. Carefully connect the throttle body air inlet duct.
26. Connect the battery ground (negative) cable.
27. Fill the crankcase with new engine oil.
28. Inspect for the proper fluid levels.
29. Inspect for leaks.
30. Measure the wheel alignment.
