GND Distribution, Window Switches & Window Regulator Motors

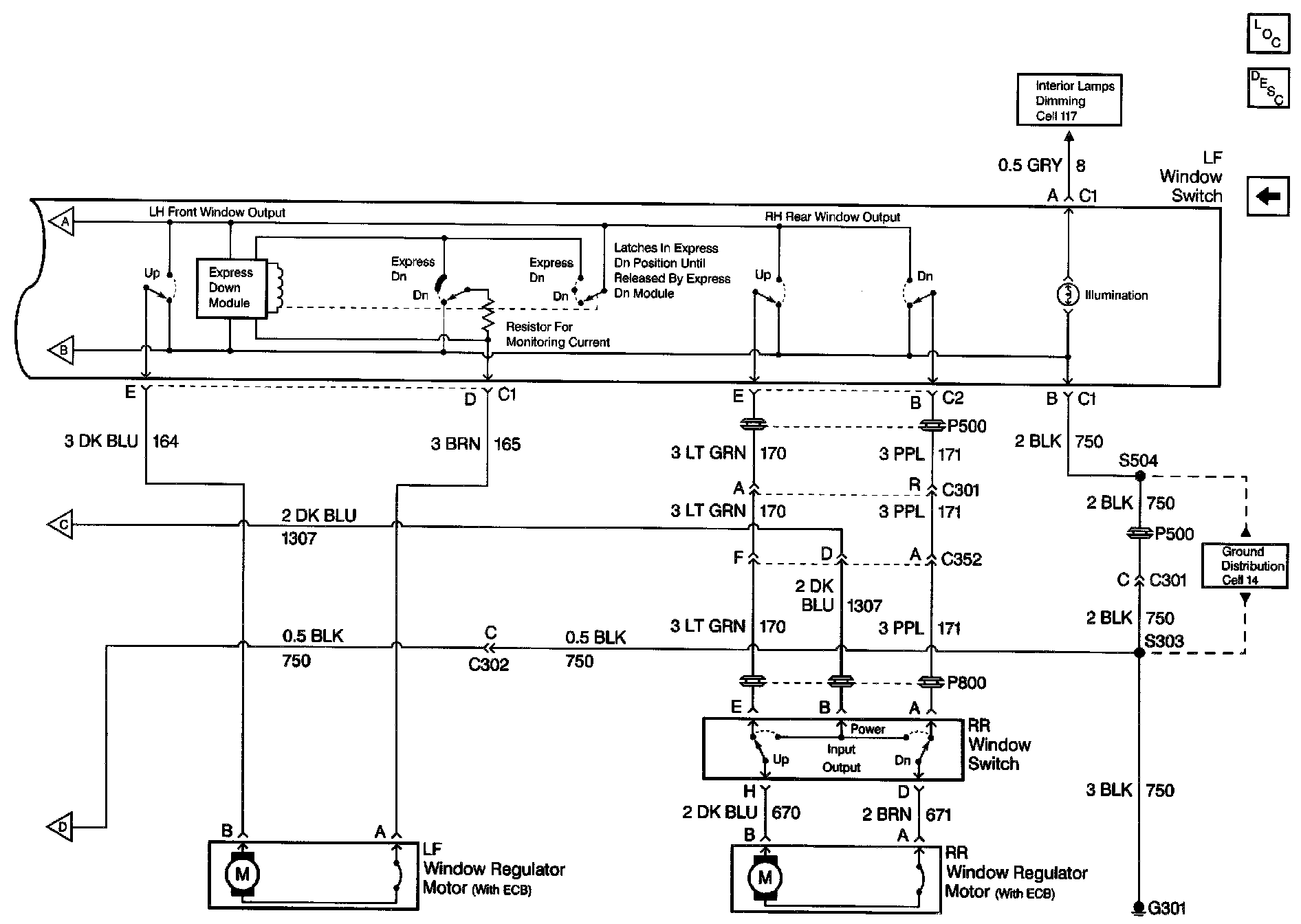

Power Windows Schematics: Ground Distribution, Window Switches And Window Regulator Motors:
