Home >> Oldsmobile >> 1999 >> Intrigue V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Steering >> Steering Controls Schematics (RPO L36 With Delco VI) >> Cell 45: EBTCM, and Wheel Speed Sensor

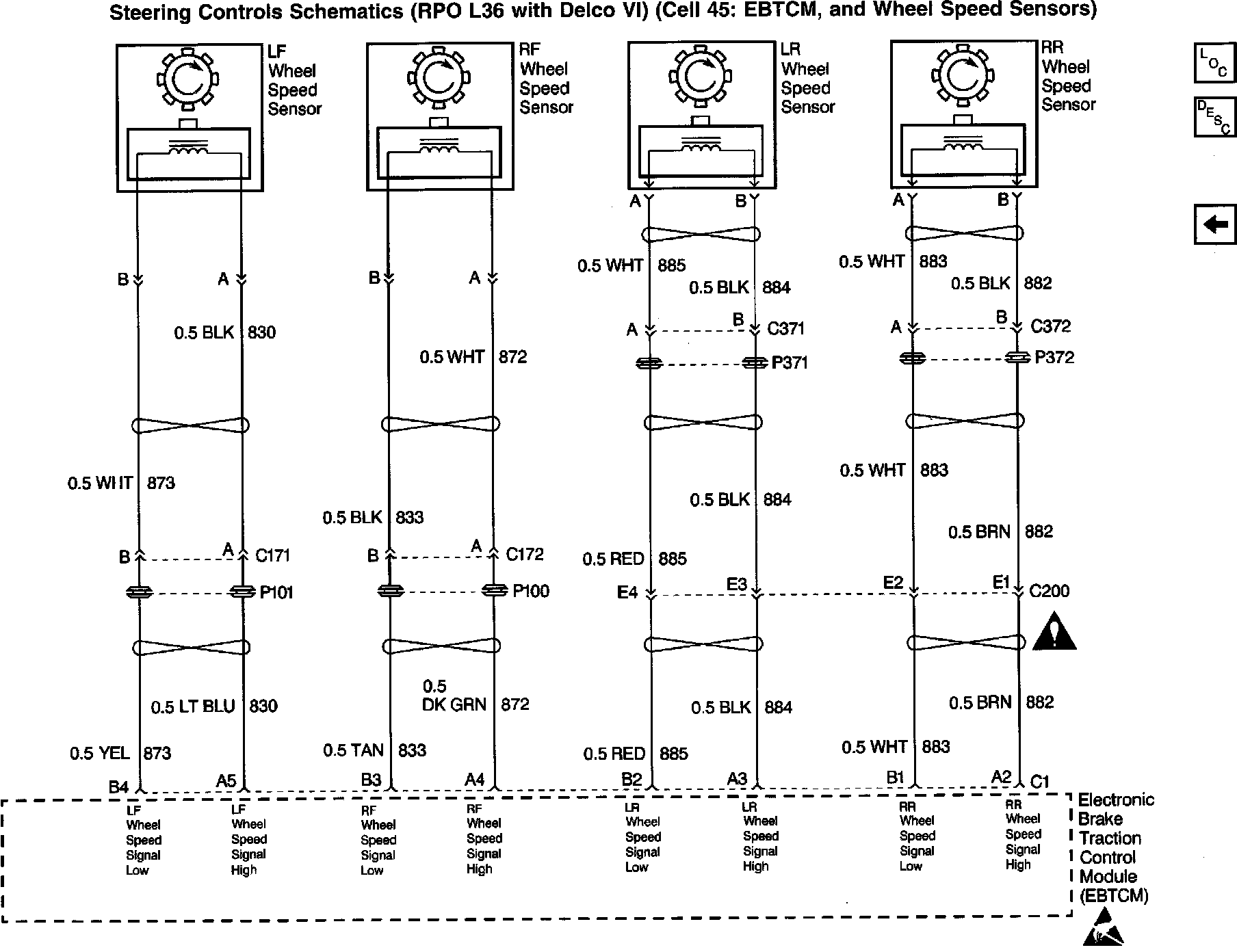

Cell 45: EBTCM, and Wheel Speed Sensor
