G117

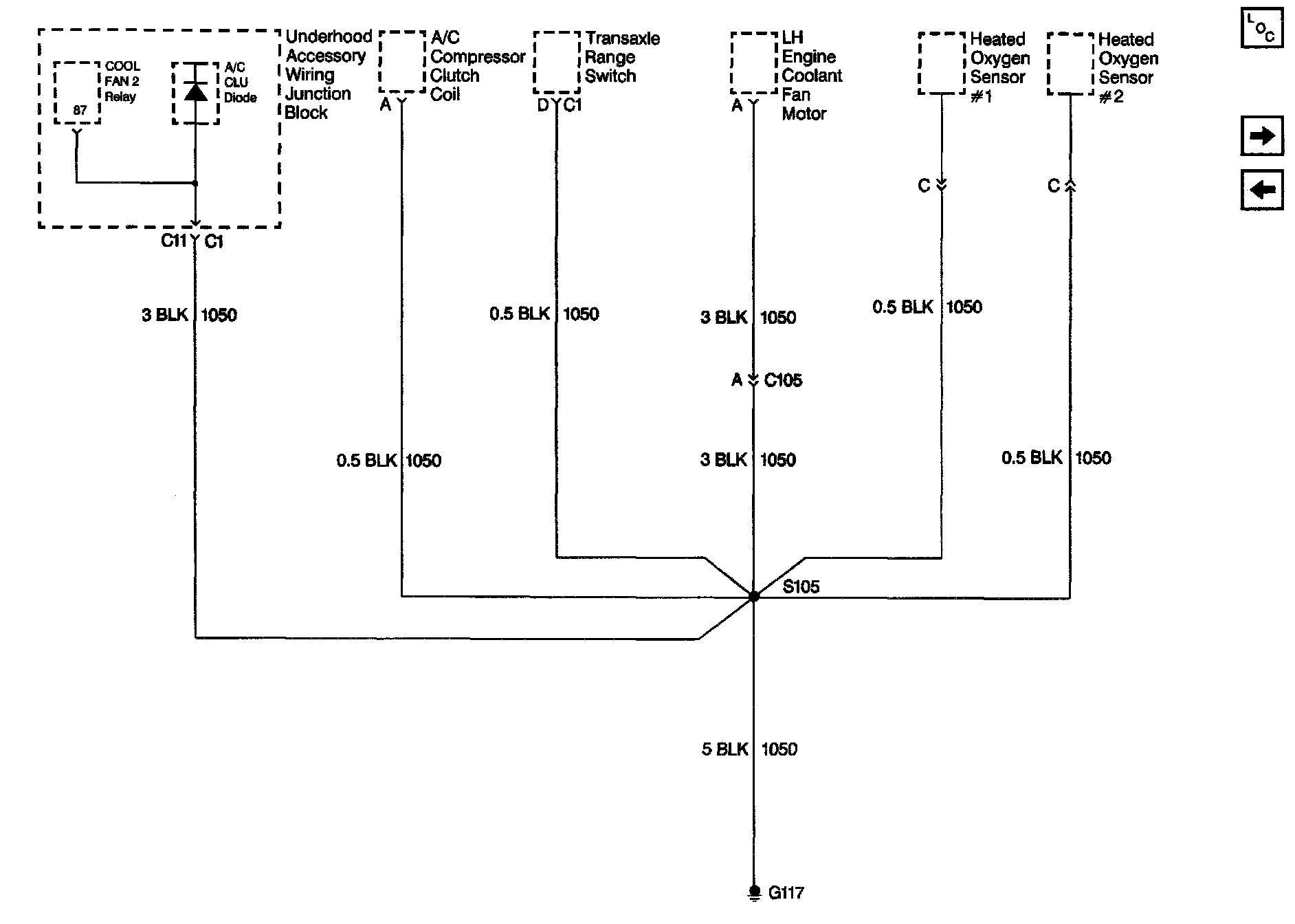

Ground Distribution Schematics: LX5 Engine Ground G117:

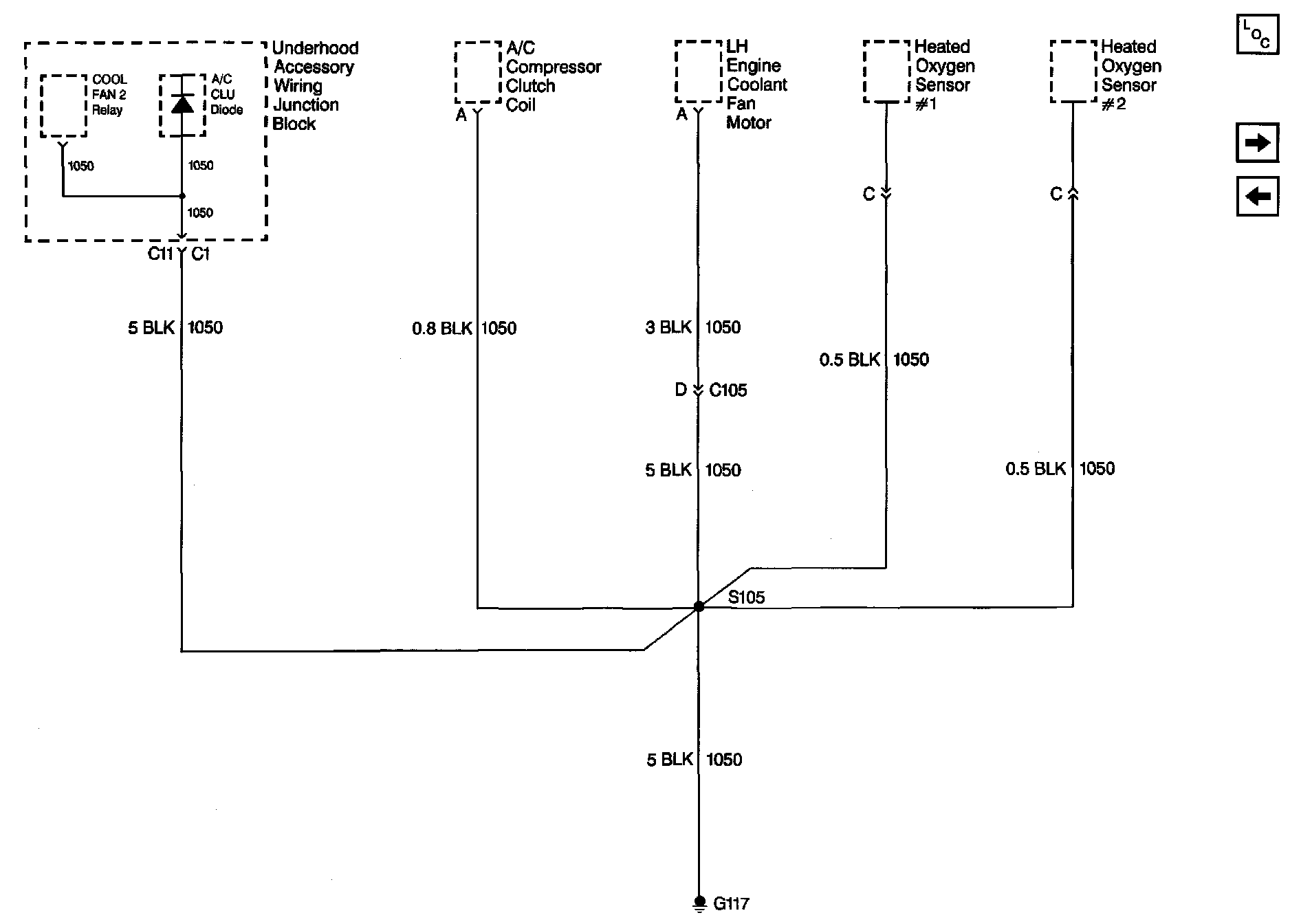

Ground Distribution Schematics: L36 Engine Ground G117:
