G113
G113
Ground Distribution Schematics: LX5 Engine Grounds G100, G110 And G113:

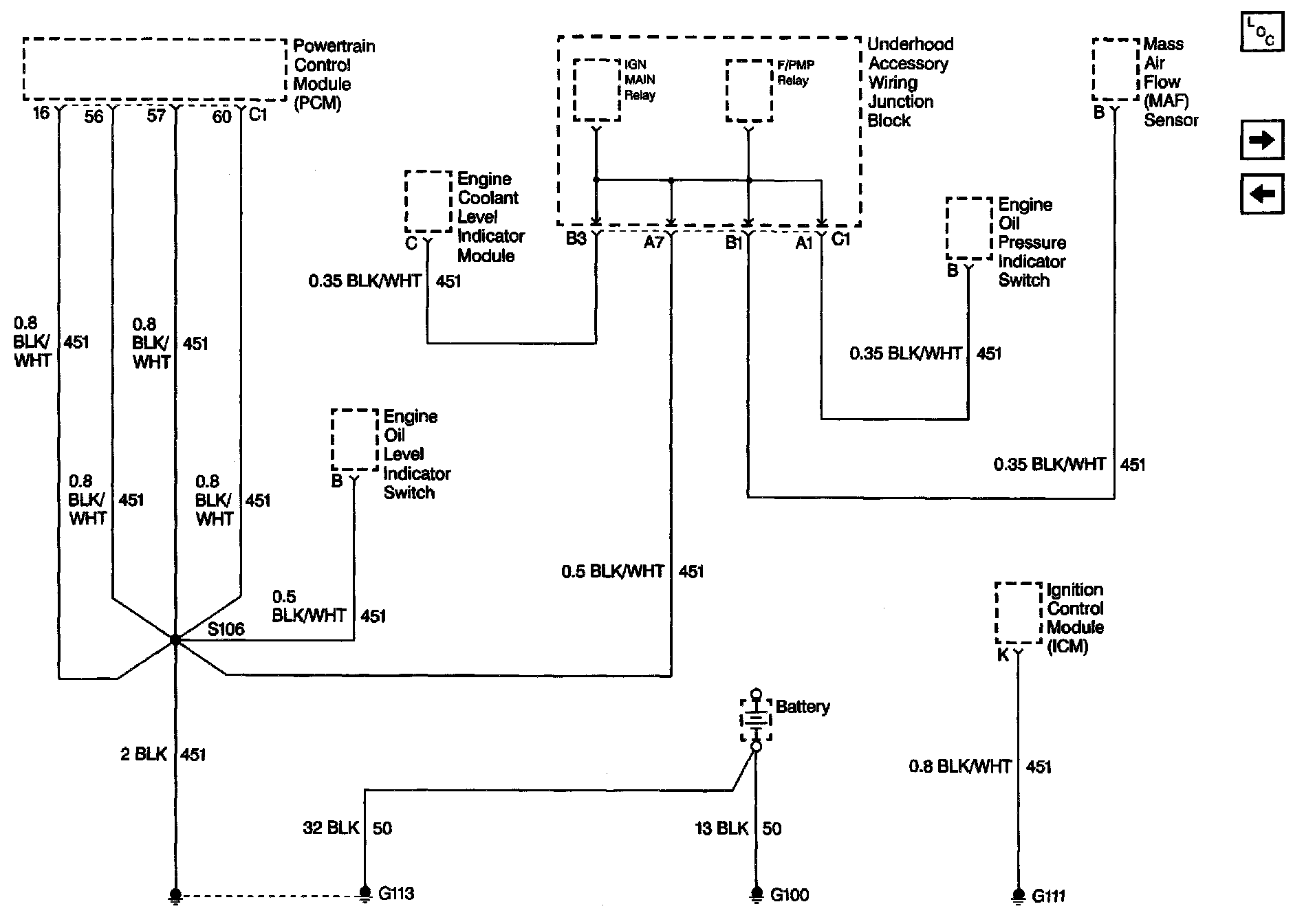

Ground Distribution Schematics: L36 Engine Grounds G100, G111 And G113:
