Home >> Oldsmobile >> 1999 >> Intrigue V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> Radio/Audio System Schematics >> Bose Speaker System W/RPO U85

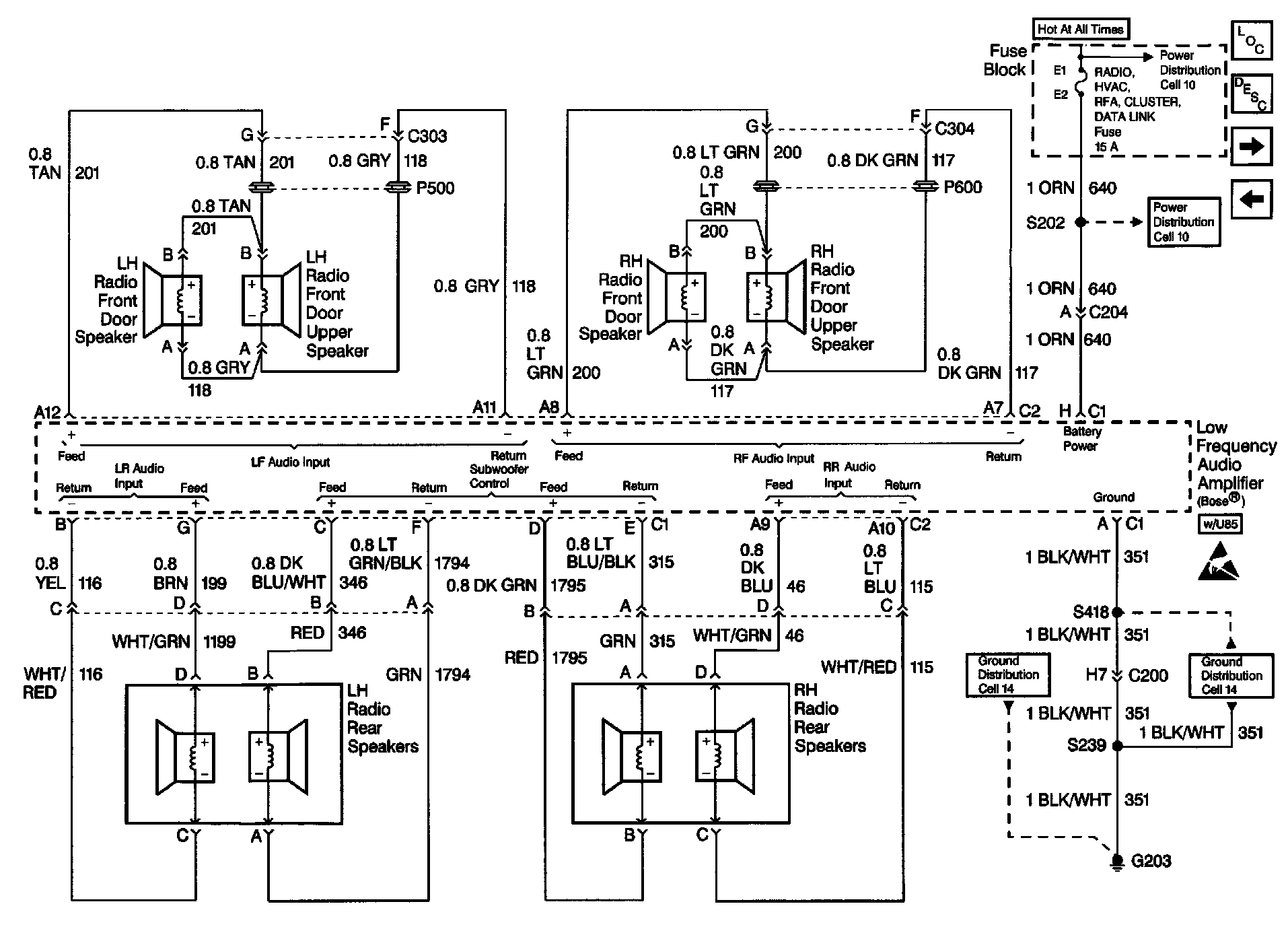

Bose Speaker System W/RPO U85

Radio/Audio System Schematics: Bose Speaker System W/RPO U85:
