Powertrain Controls

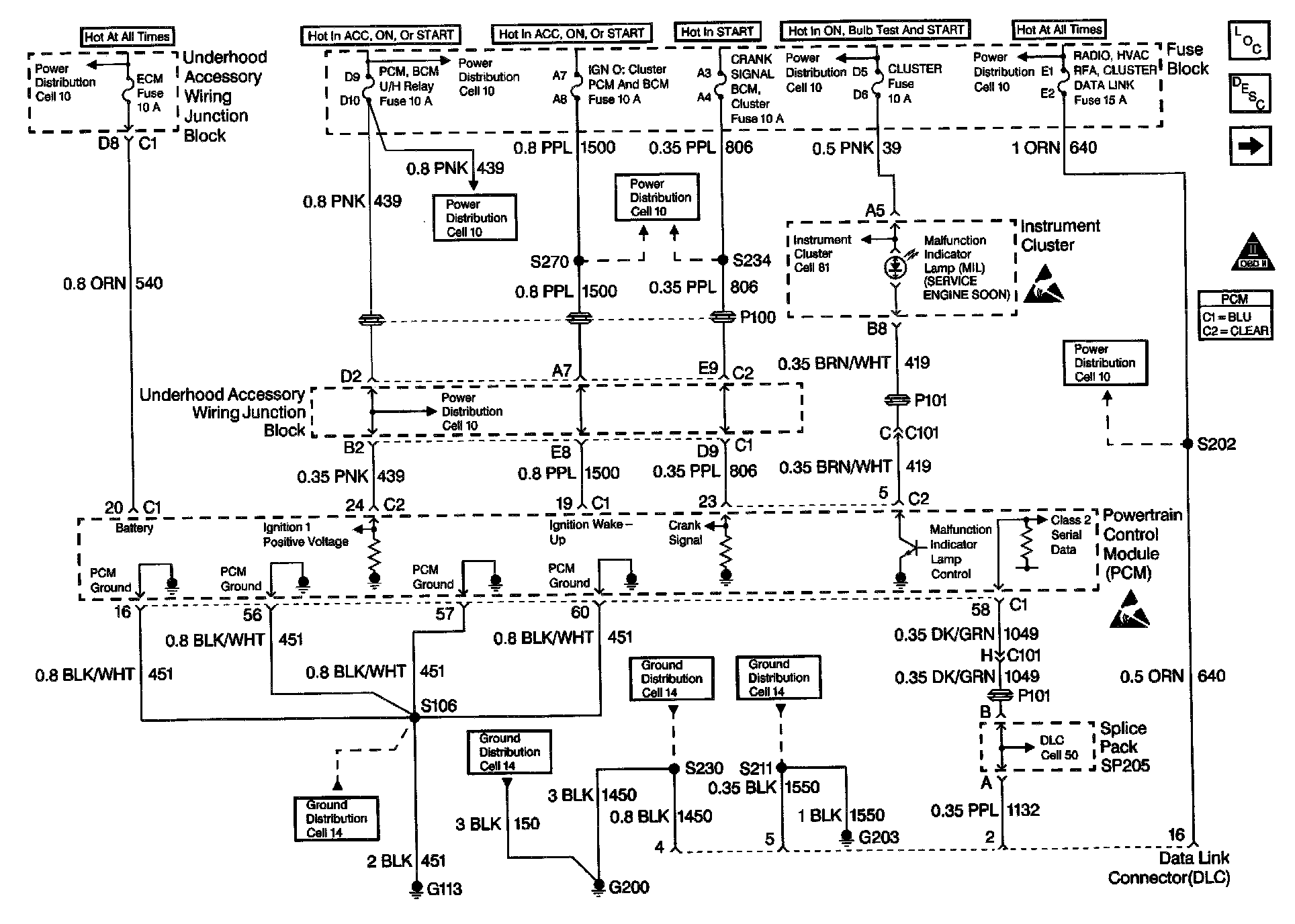

Power, Ground, MIL and DLC

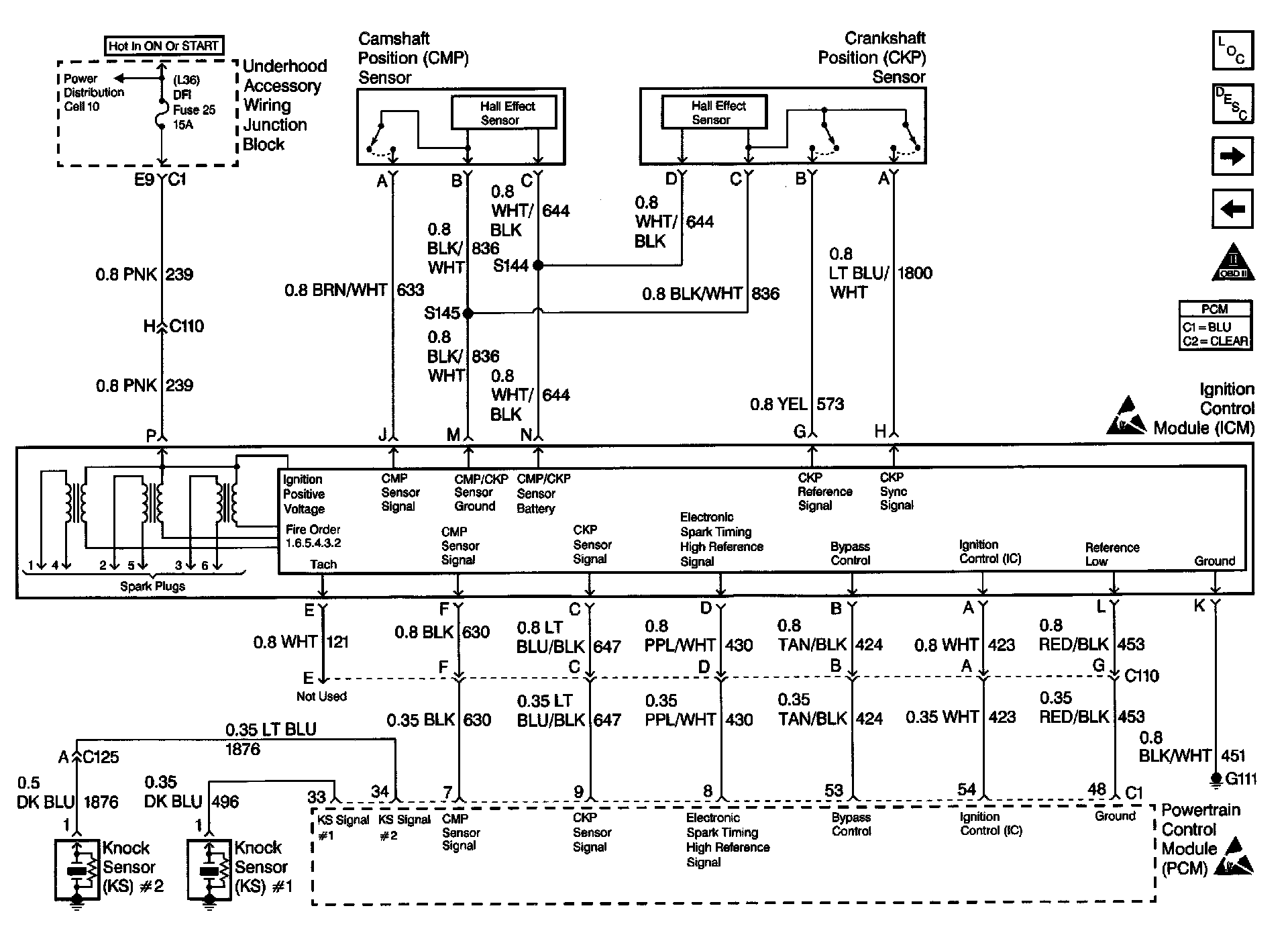

Ignition Control Module, CMP and CKP

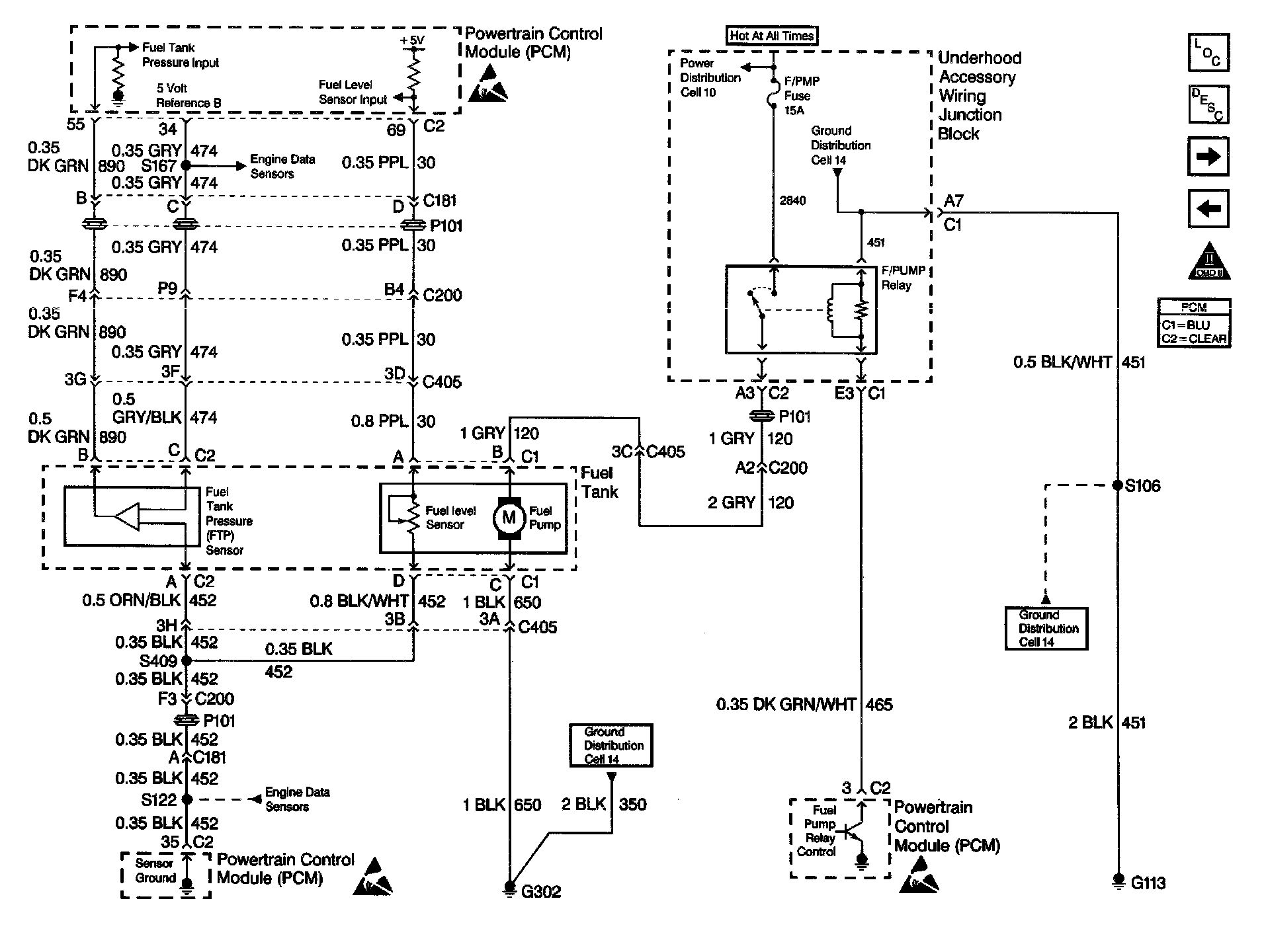

Fuel Pump and Fuel Level Sensor

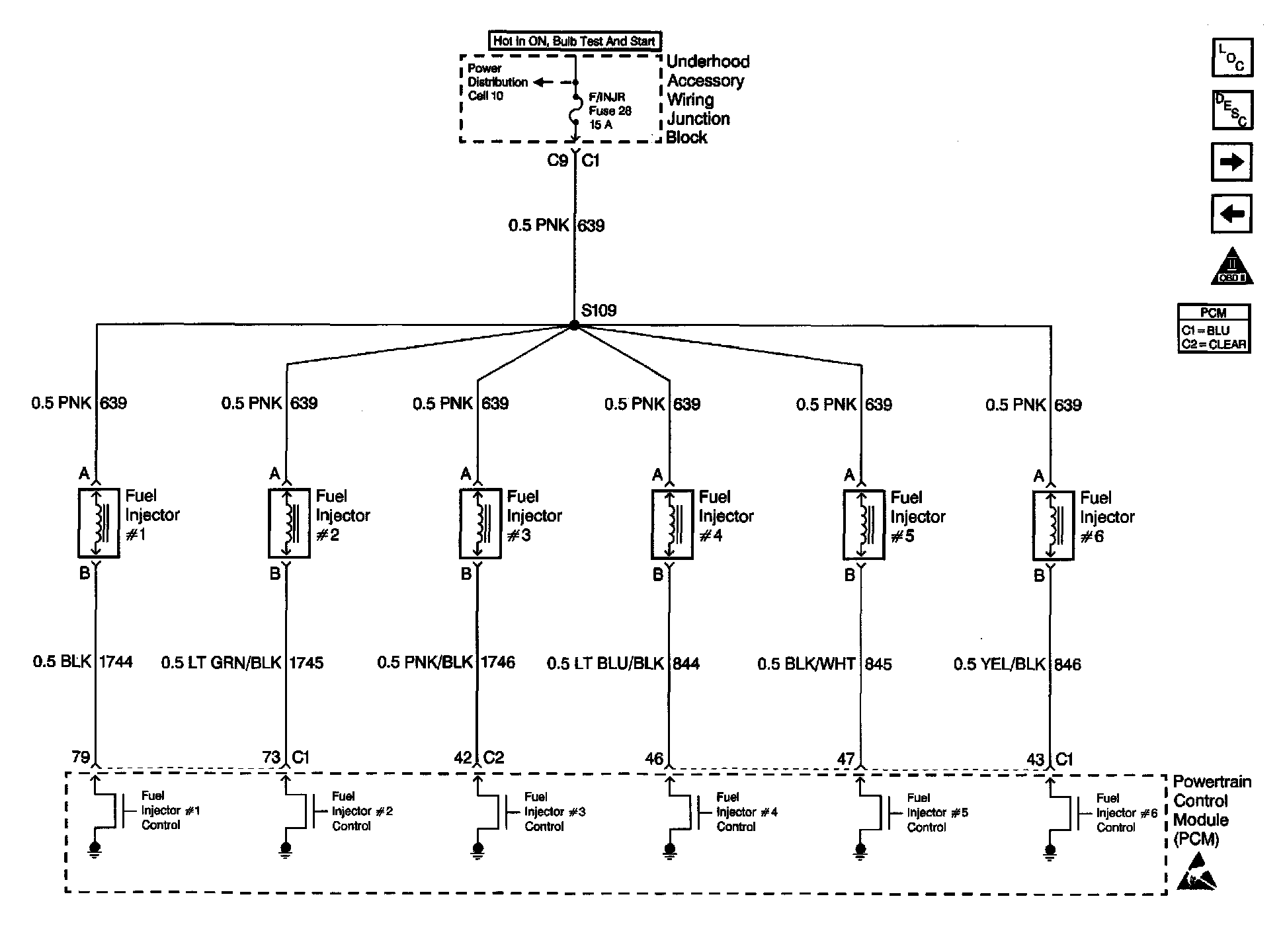

Fuel Injectors

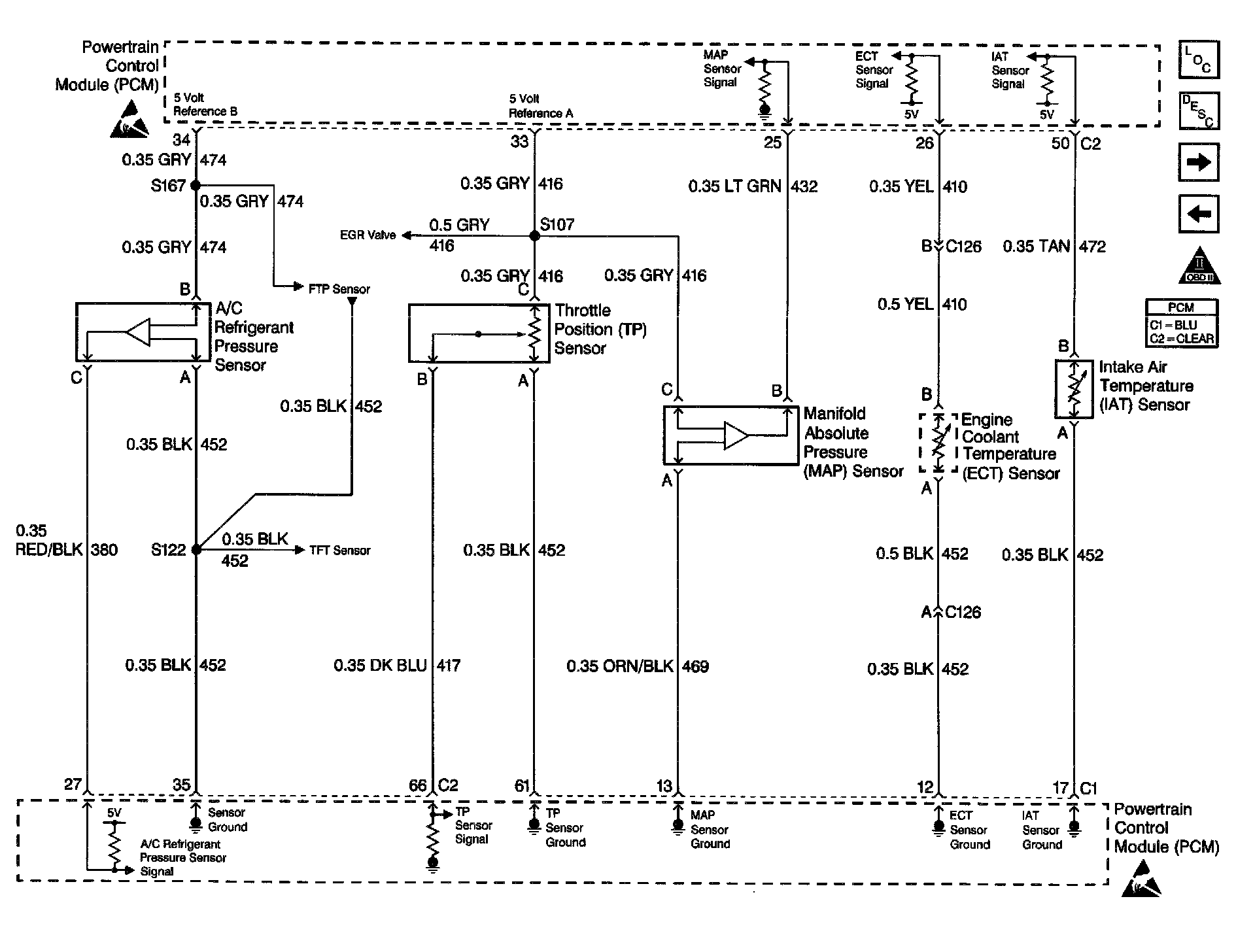

Engine Data Sensors

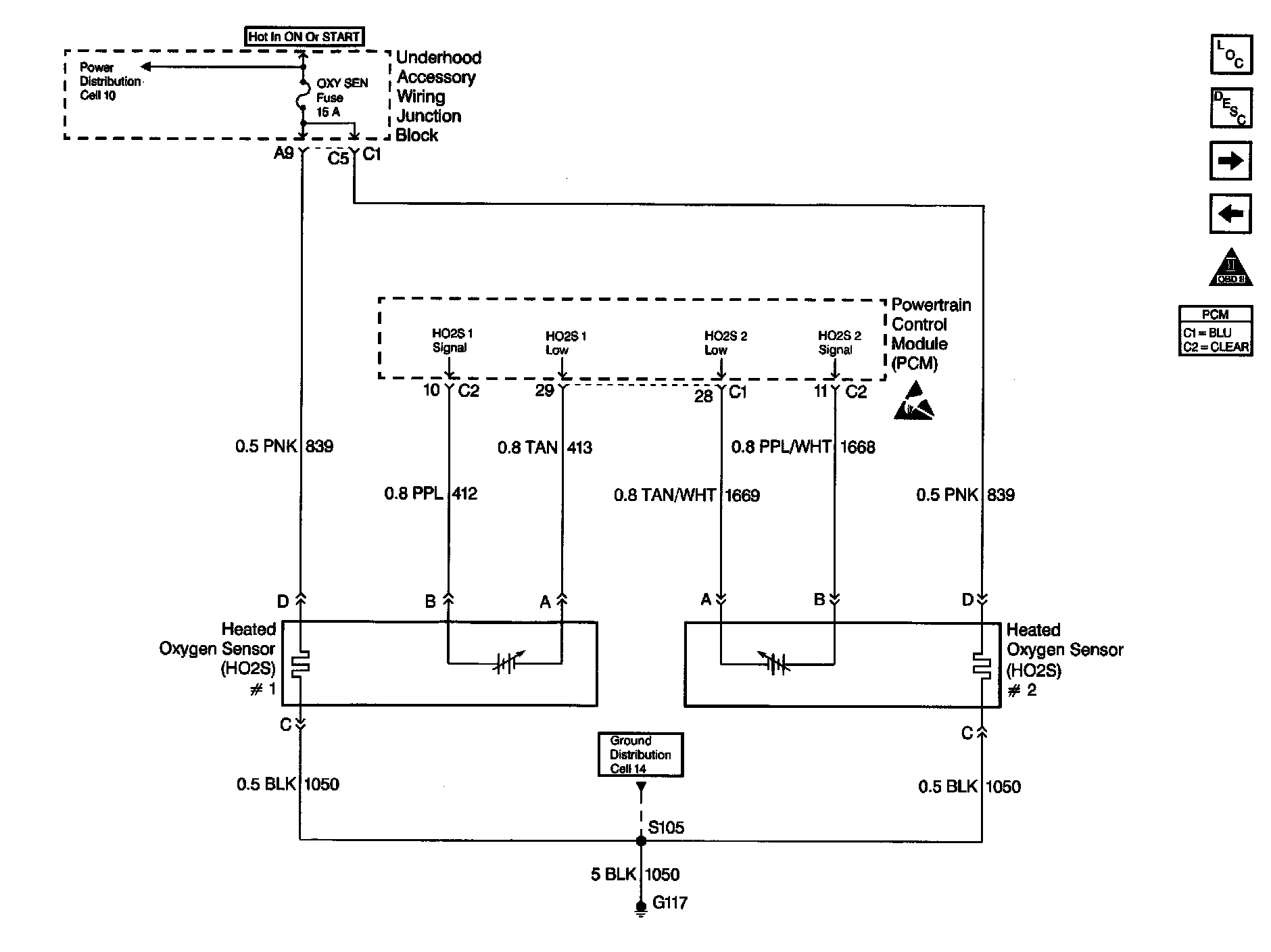

HO2S 1 and HO2S 2

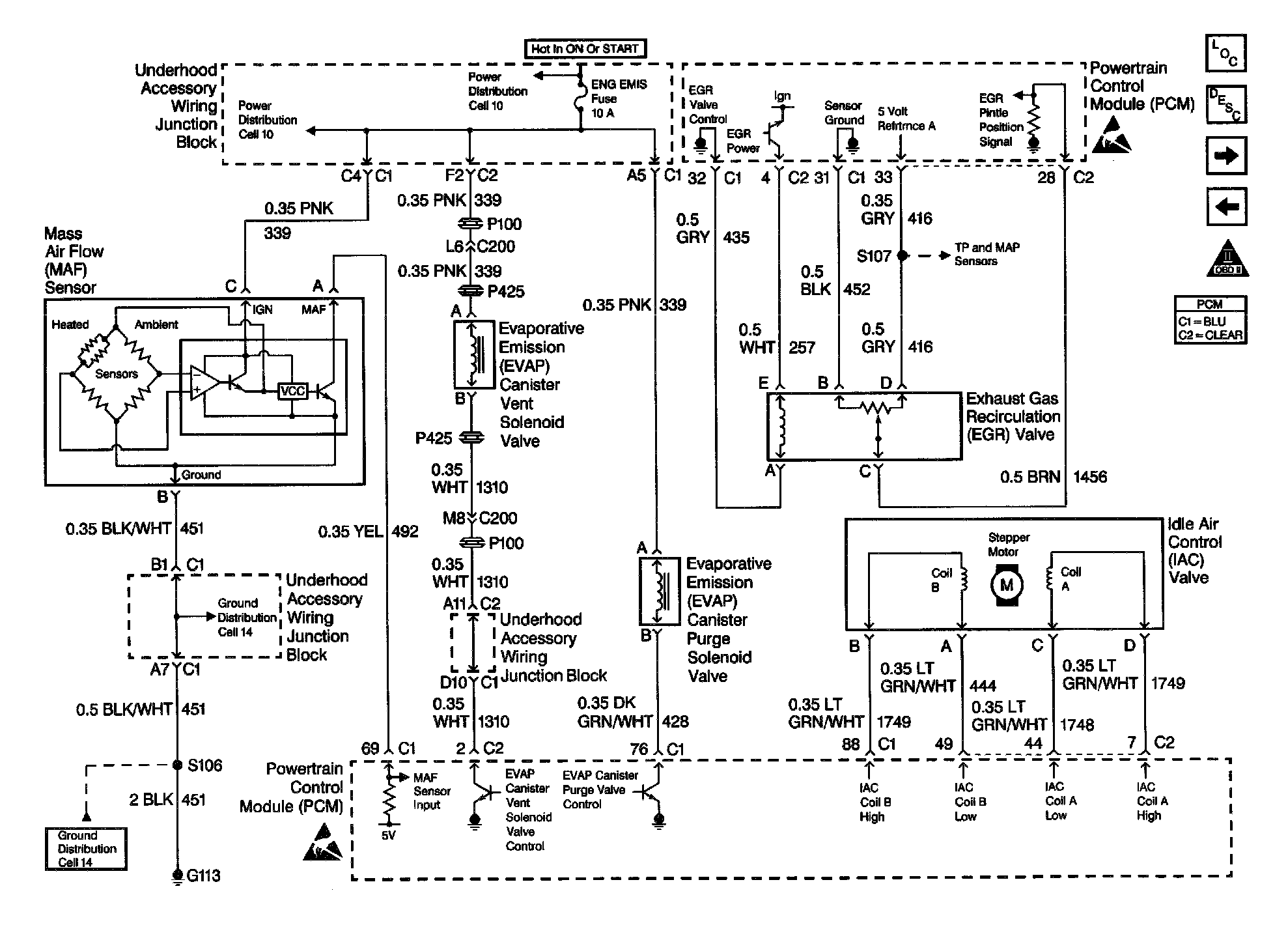

MAF, IAC, EGR and EVAP

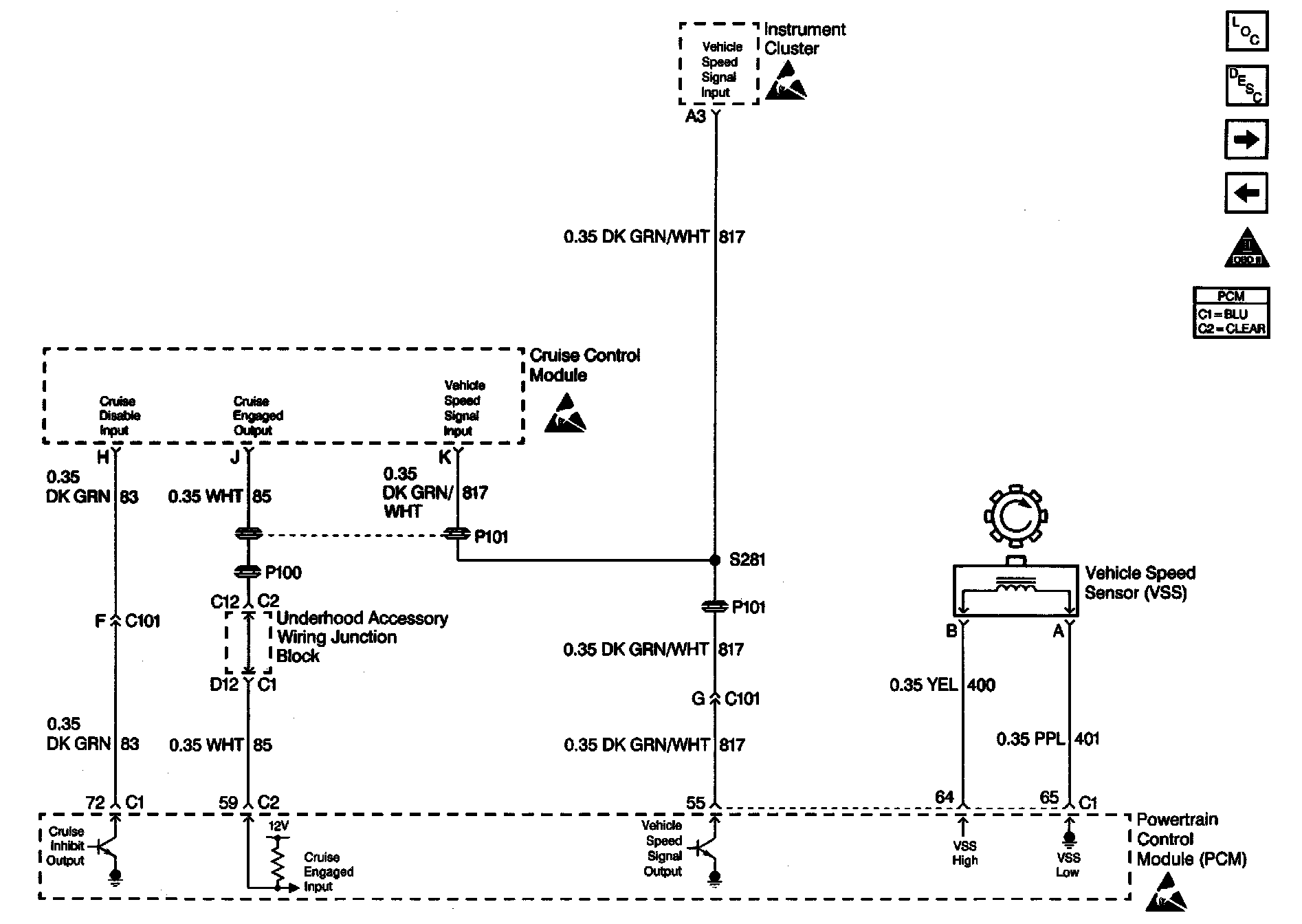

Cruise Control Module and VSS

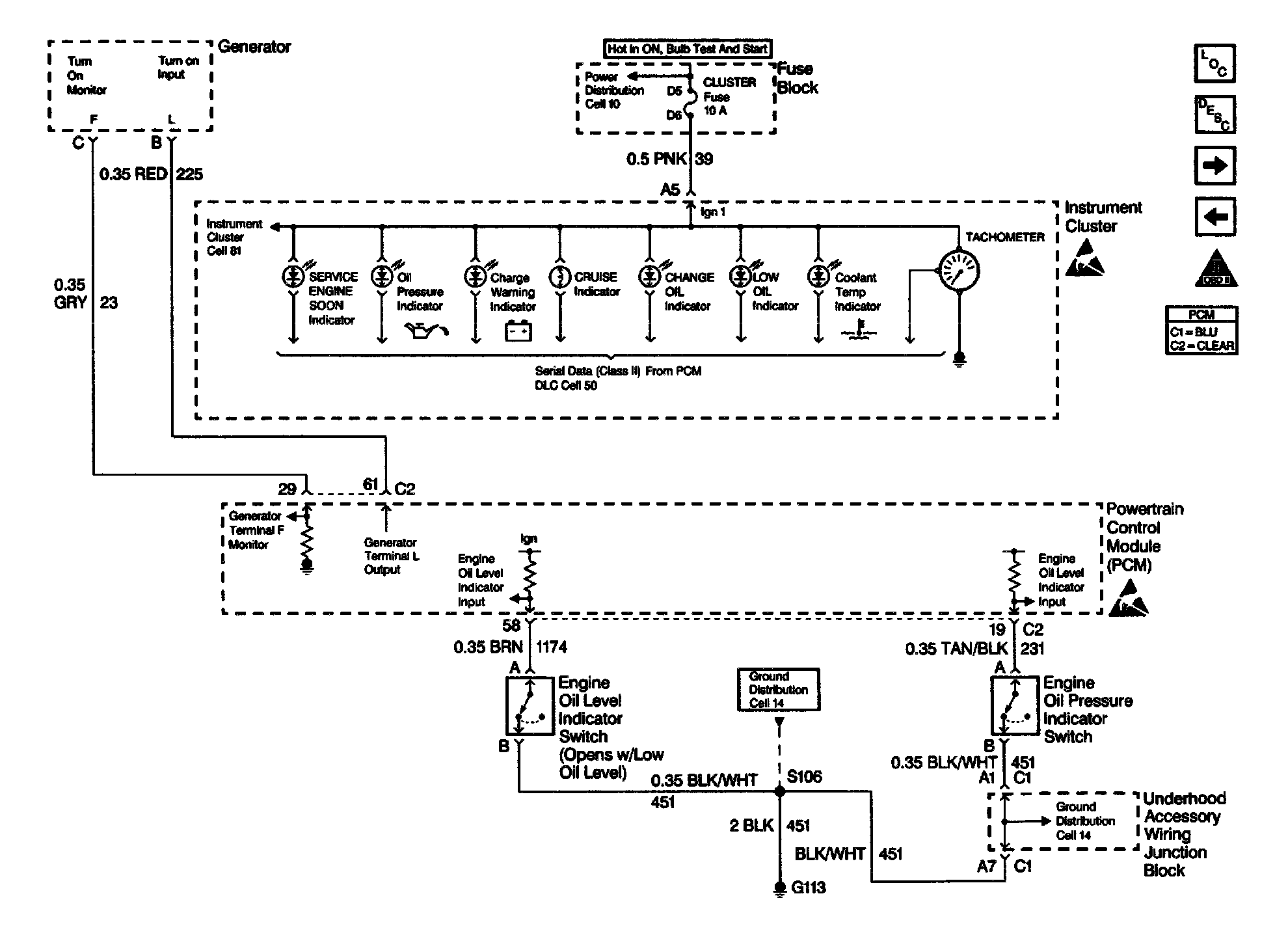

Indicators




Transaxle Range Switch

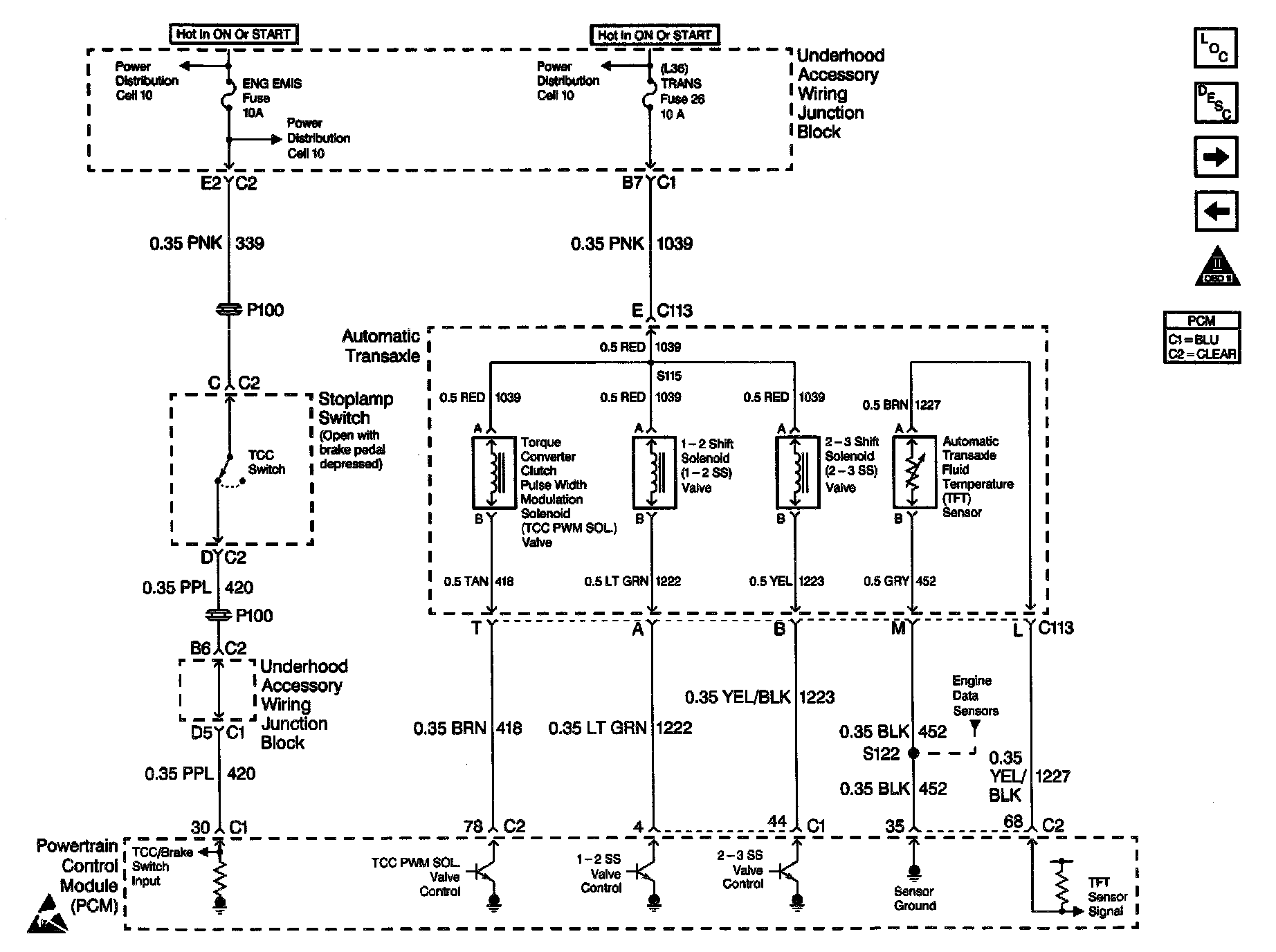

Automatic Transaxle Internal Controls and TCC




A/T Fluid Pressure Manual Valve Position Switch, PC SOL Valve and A/T ISS Sensor

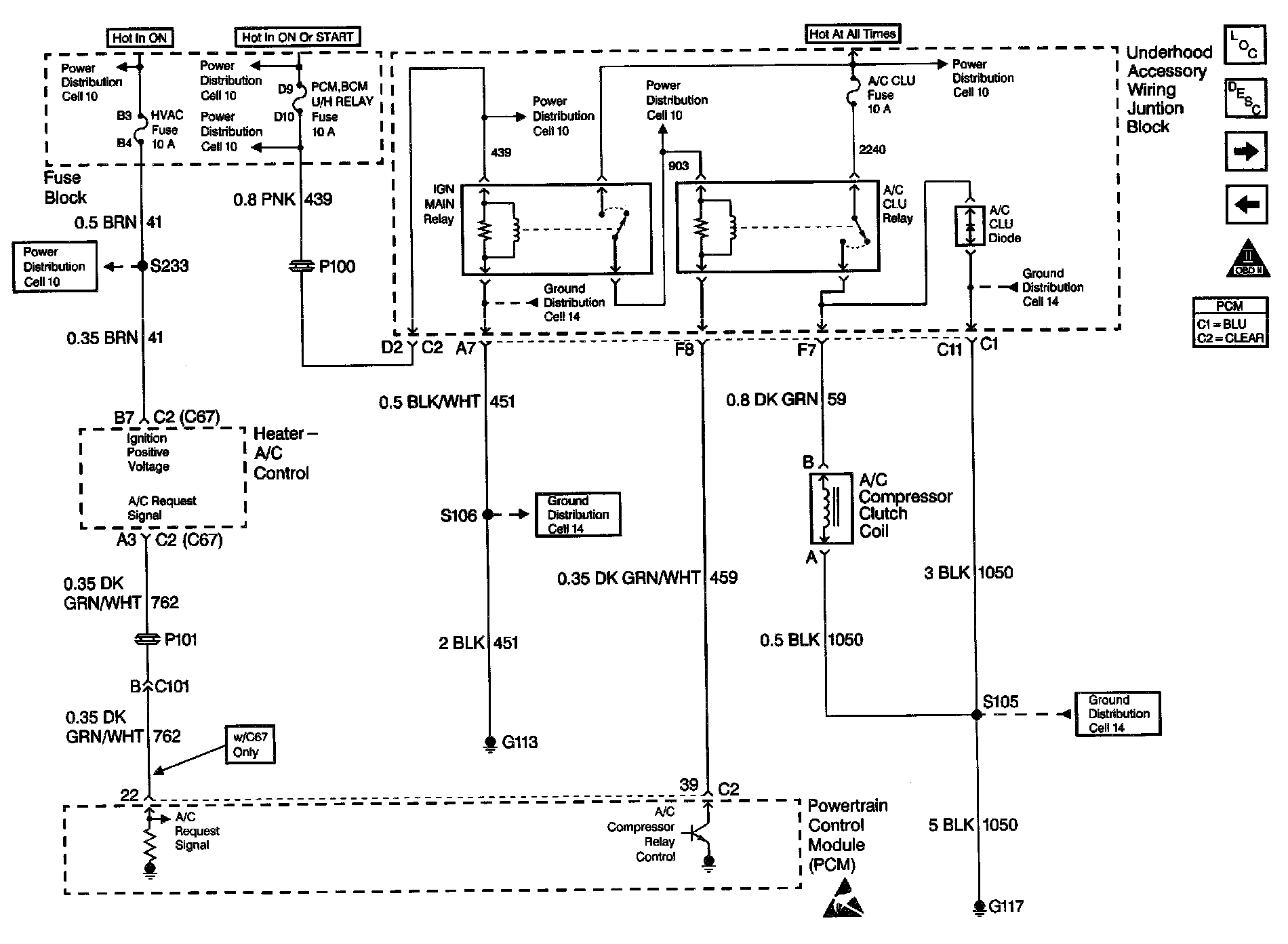

A/C Compressor Controls

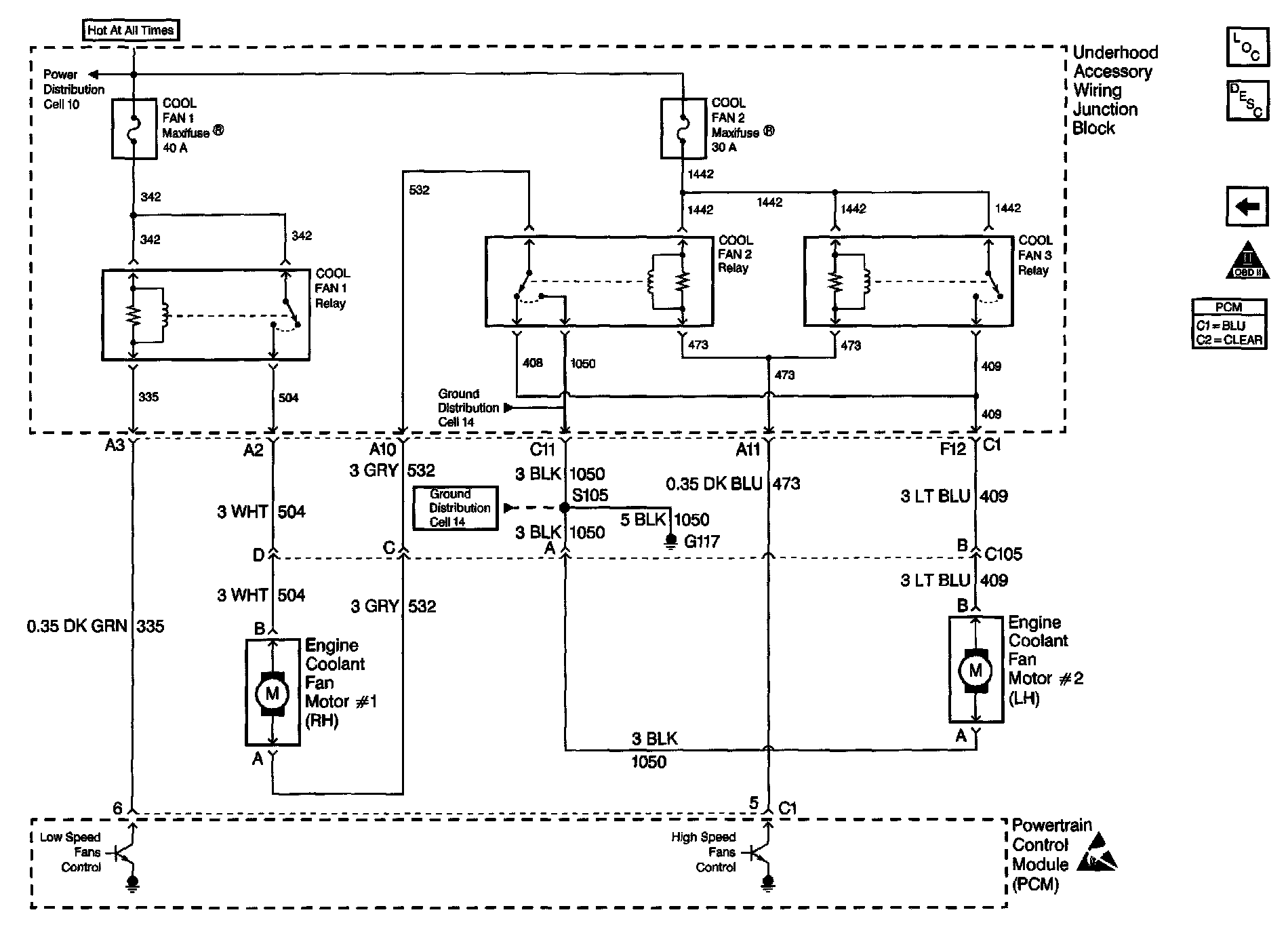

Cooling Fan Controls
