Home >> Oldsmobile >> 1999 >> Intrigue V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Engine Controls >> Class 2 Serial Data, MIL, DLC, UART >> Serial Data (Class 2) (W/O Electronic TRAC CTRL SW)

Serial Data (Class 2) (W/O Electronic TRAC CTRL SW)

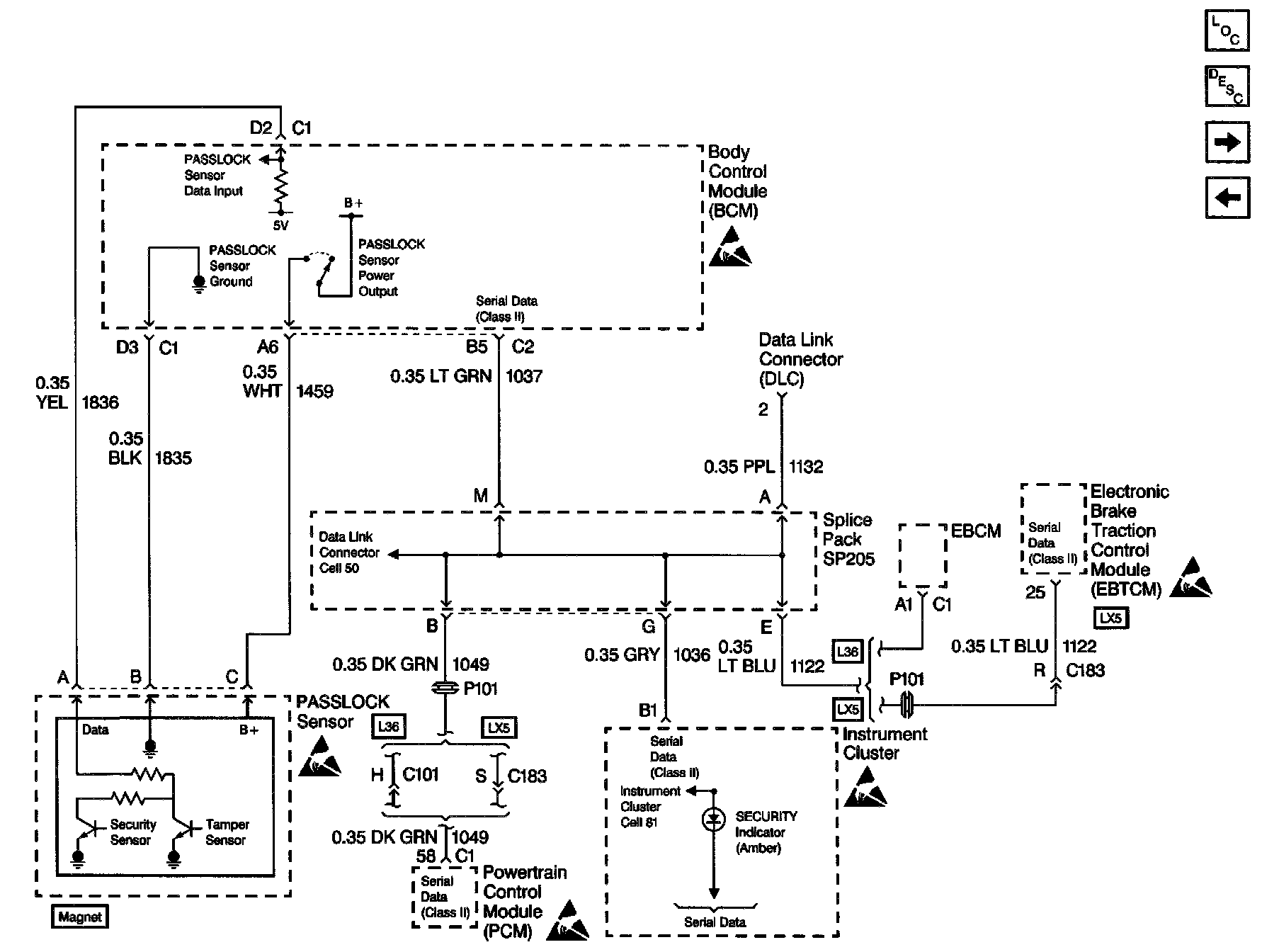

Body Control Schematics: PASSLOCK Sensor, Serial Data (Class 2) (w/o Electronic Traction Control Switch):
