Interior Lights B+ O/P, Theater Dimming 1 O/P, Trunk Ajar I/P
Interior Lights B+ O/P, Theater Dimming 1 O/P, Trunk Ajar I/P

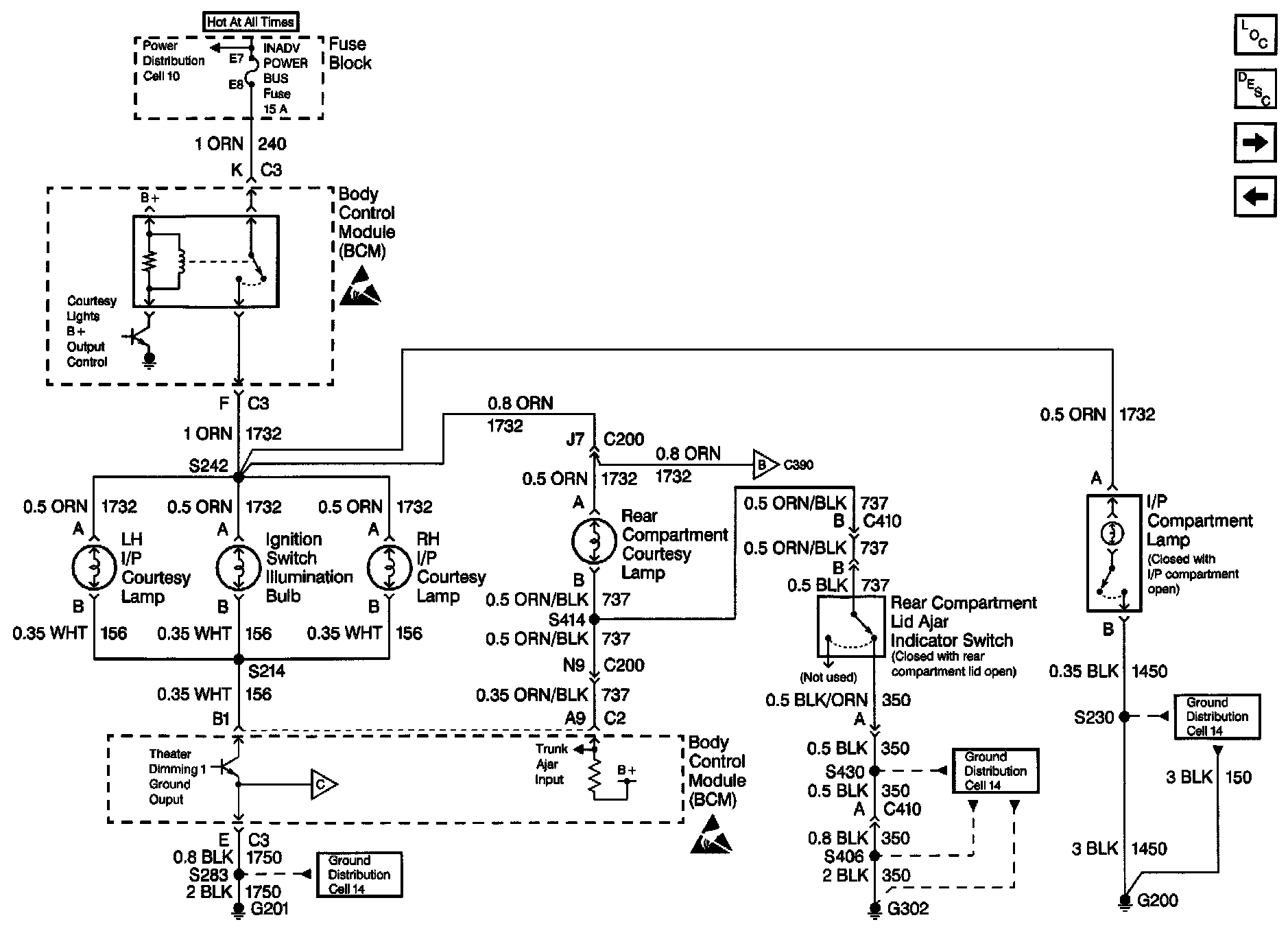

Body Control Module Schematics: Interior Lights B+ Output, Theater Dimming 1 Output, Trunk Ajar Input:
