Door LK & WDO Switches, Outside Remote CTRL Rearview Mirror SW

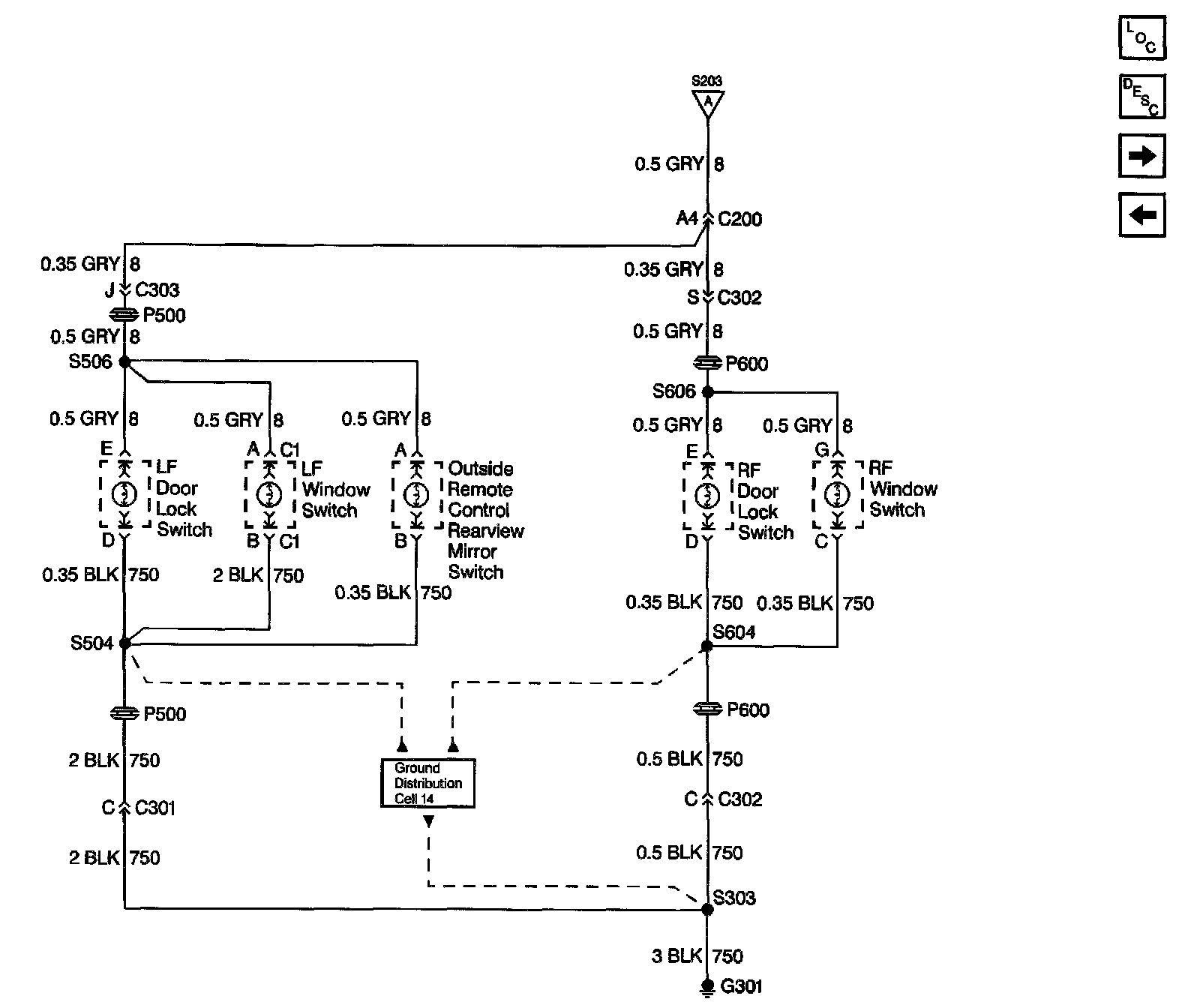

Interior Lights Dimming Schematics: Door Lock Switches, Window Switches, Outside Remote Control Rearview Mirror Switch:
