Power, Transaxle Range Switch, Backup Lamps

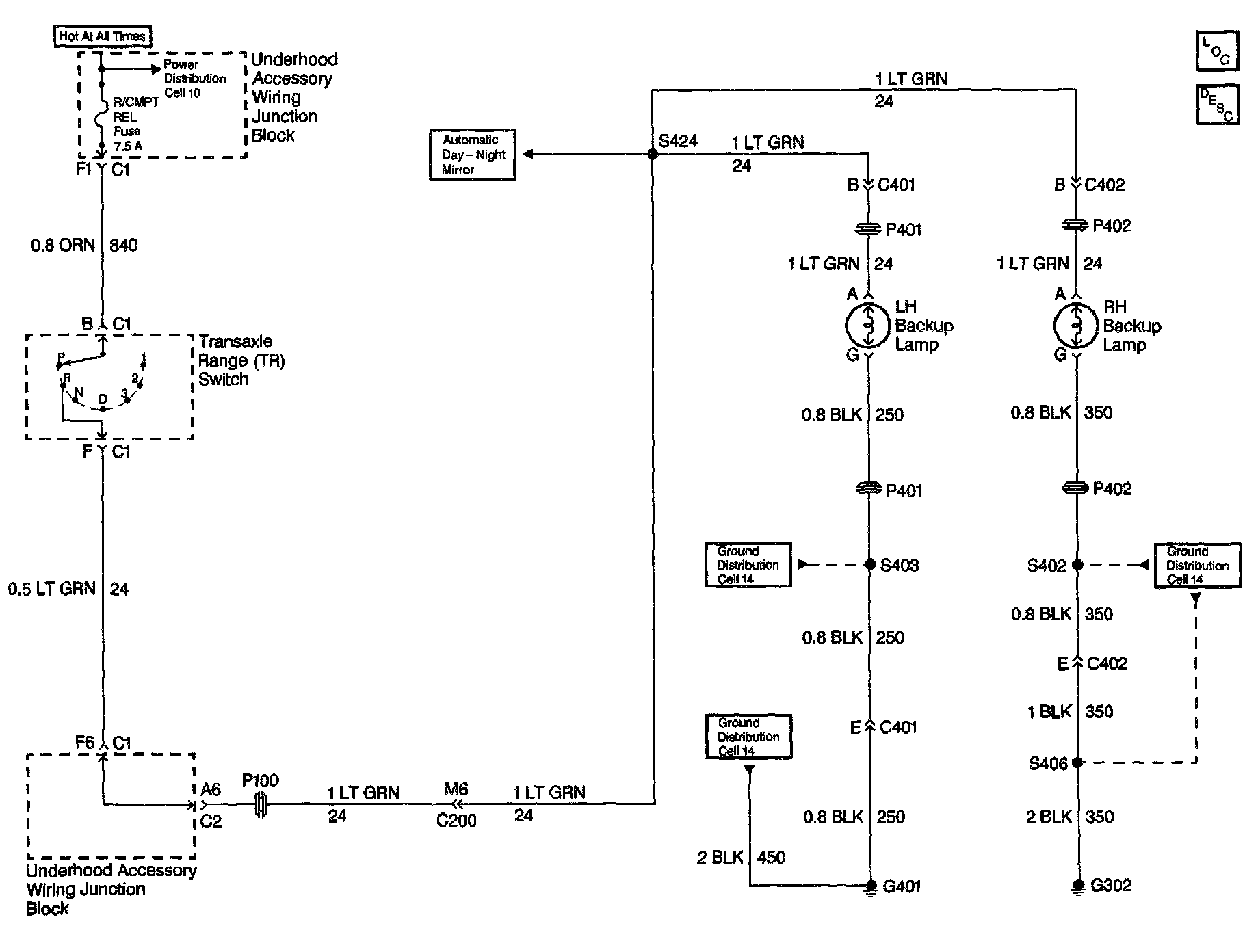

Backup Lights Schematics: Power, Transaxle Range Switch, Backup Lamps:
