Power, DRL CTRL Module, BCM, Headlamp SW, Park Brake IND SW
Power, DRL CTRL Module, BCM, Headlamp SW, Park Brake IND SW

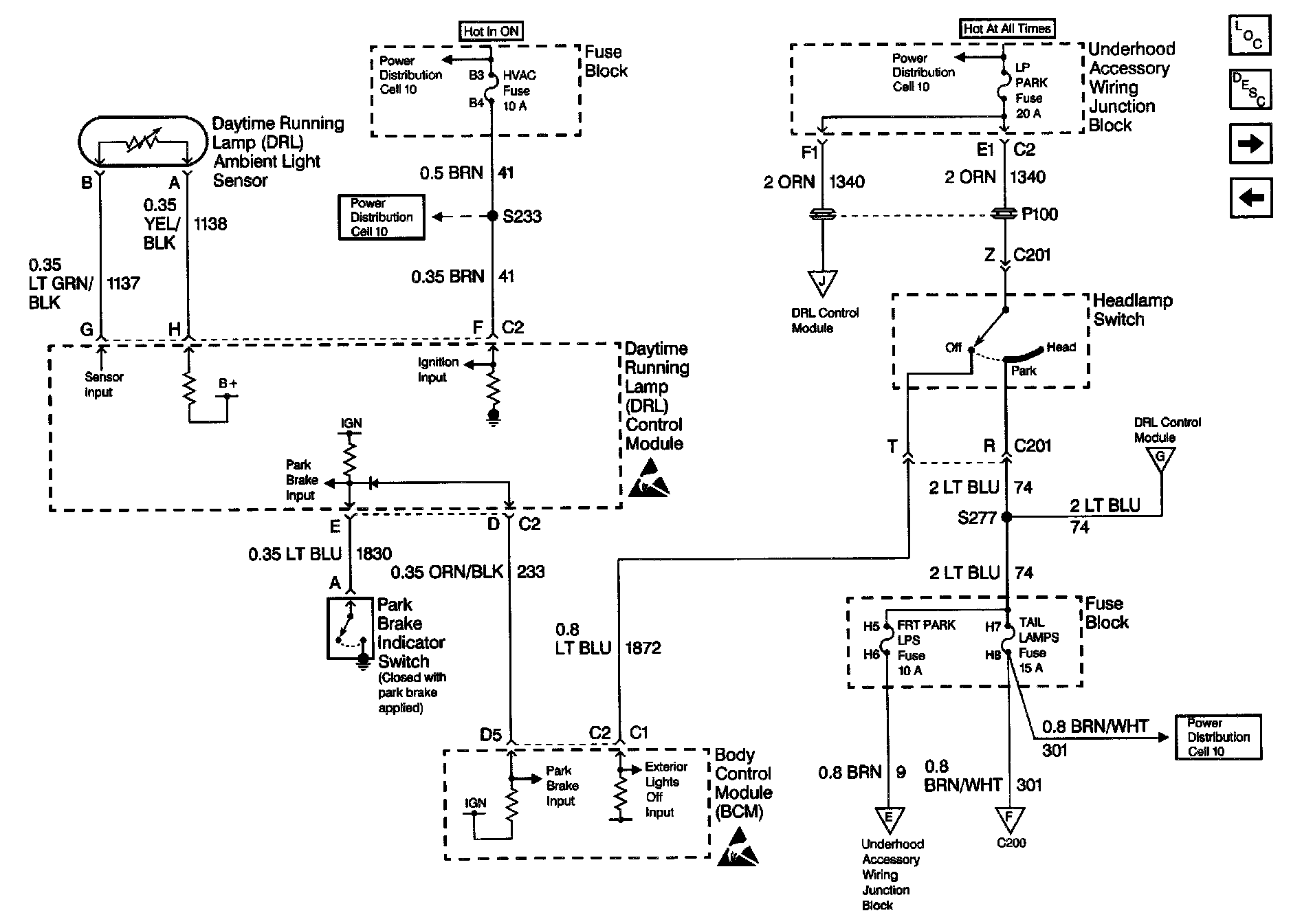

Exterior Lights Schematics: Power, DRL Control Module, BCM, Headlamp Switch, Park Brake Indicator Switch:
