PWR Distribution, GND Distribution & Trip Odometer Reset SW
PWR Distribution, GND Distribution & Trip Odometer Reset SW

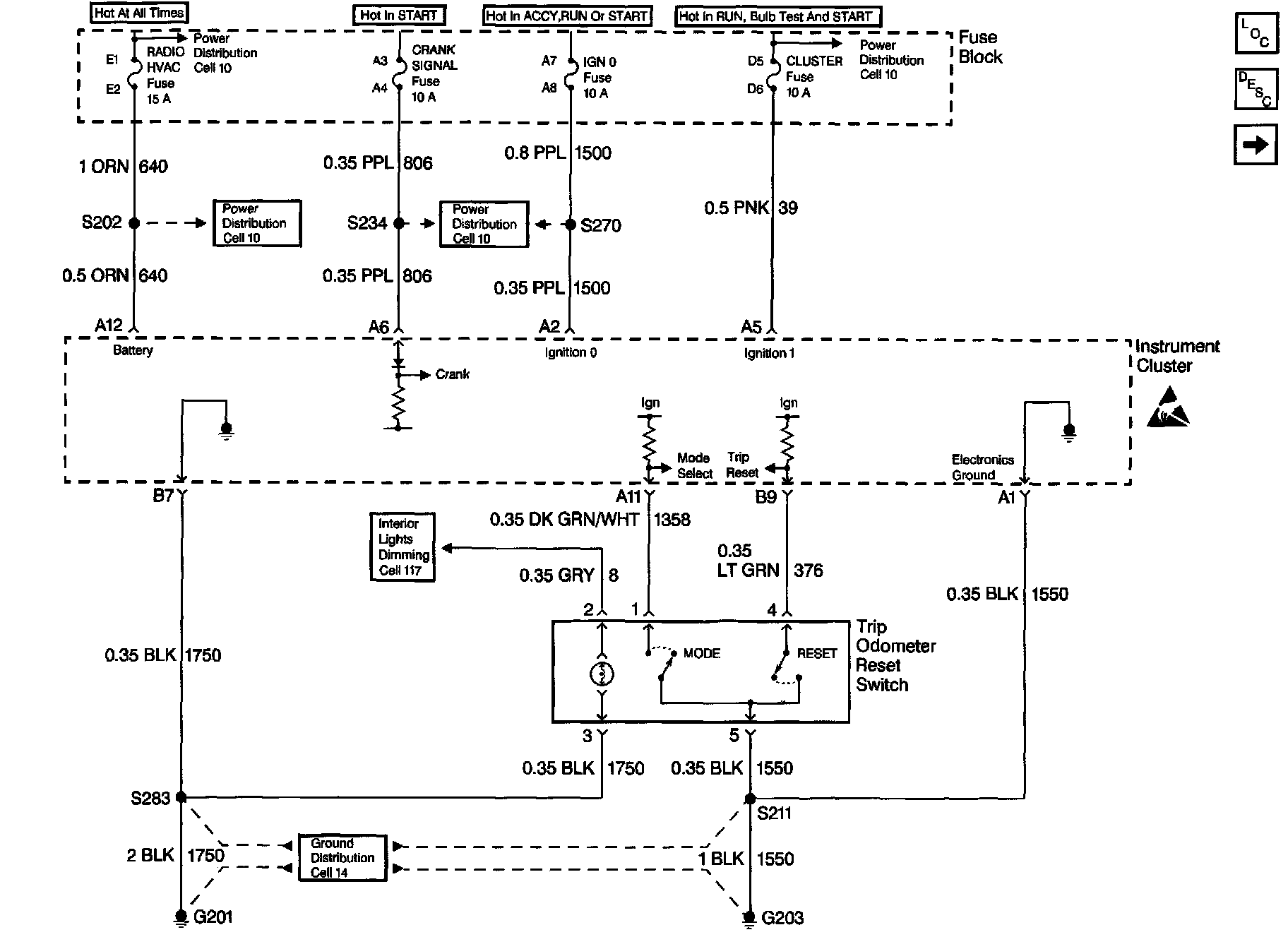

Instrument Cluster: Analog Schematics: Power Distribution, Ground Distribution And Trip Odometer Reset Switch:
