Instrument Cluster Analog Schematics
>>
LO ENG Coolant Level SW, ENG Coolant Level IND Module
LO ENG Coolant Level SW, ENG Coolant Level IND Module

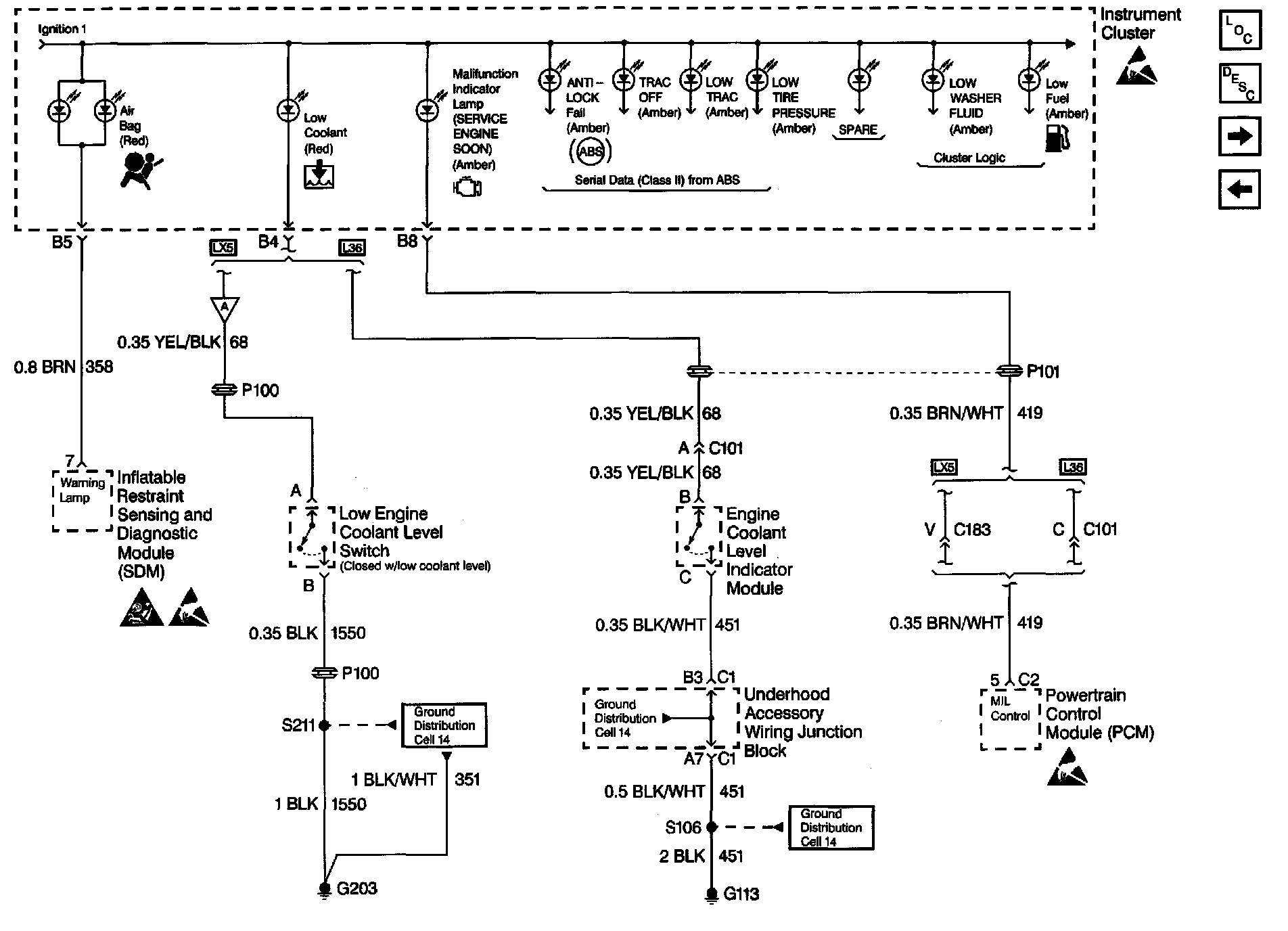

Instrument Cluster: Analog Schematics: Low Engine Coolant Level Switch, Engine Coolant Level Indicator Module, PCM And SDM:
