I/P LP Dimmer SW, Windshield Washer Solvent Level

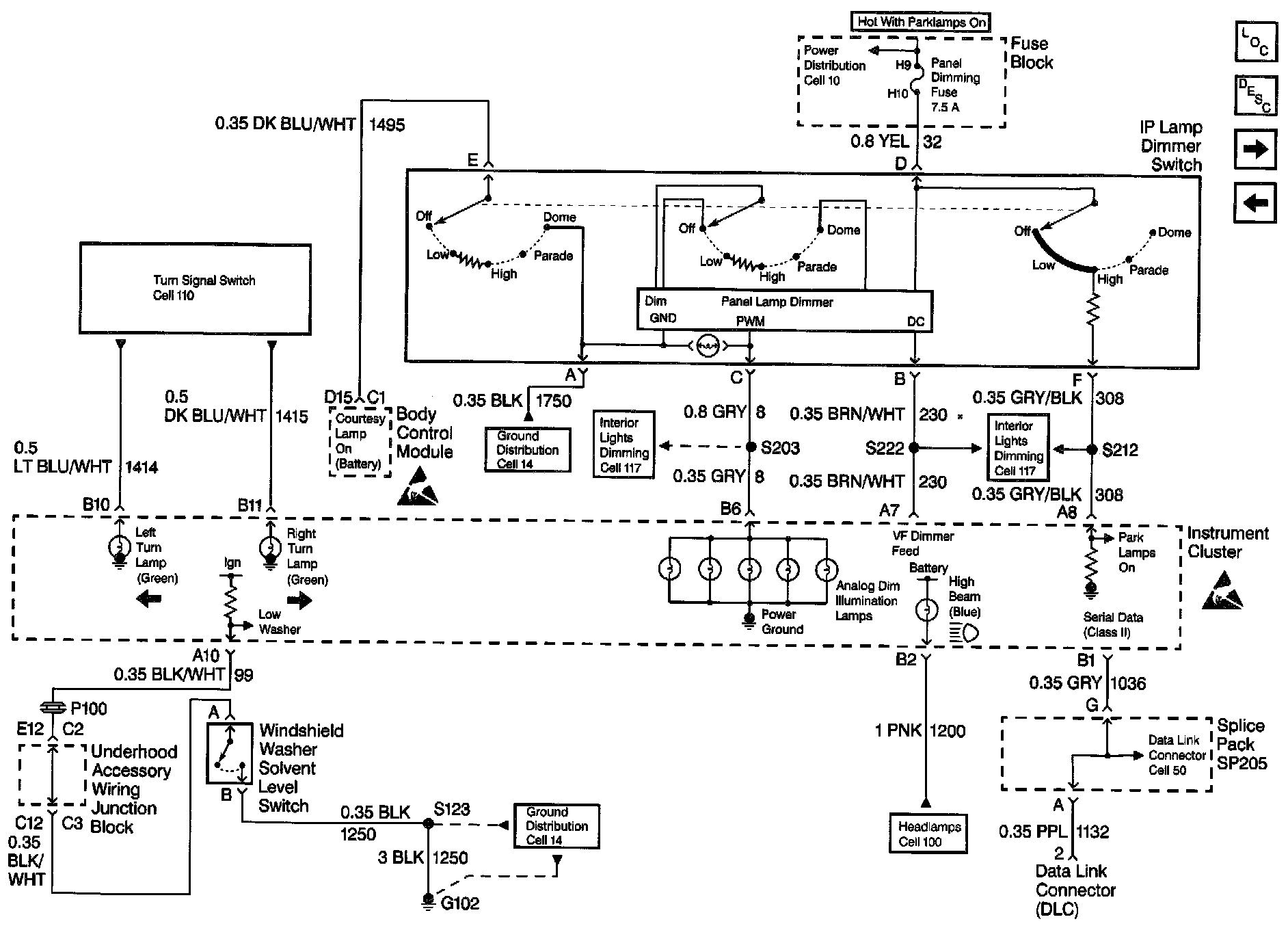

Instrument Cluster: Analog Schematics: I/P Lamp Dimmer Switch, Windshield Washer Solvent Level Switch, And Serial Data:
