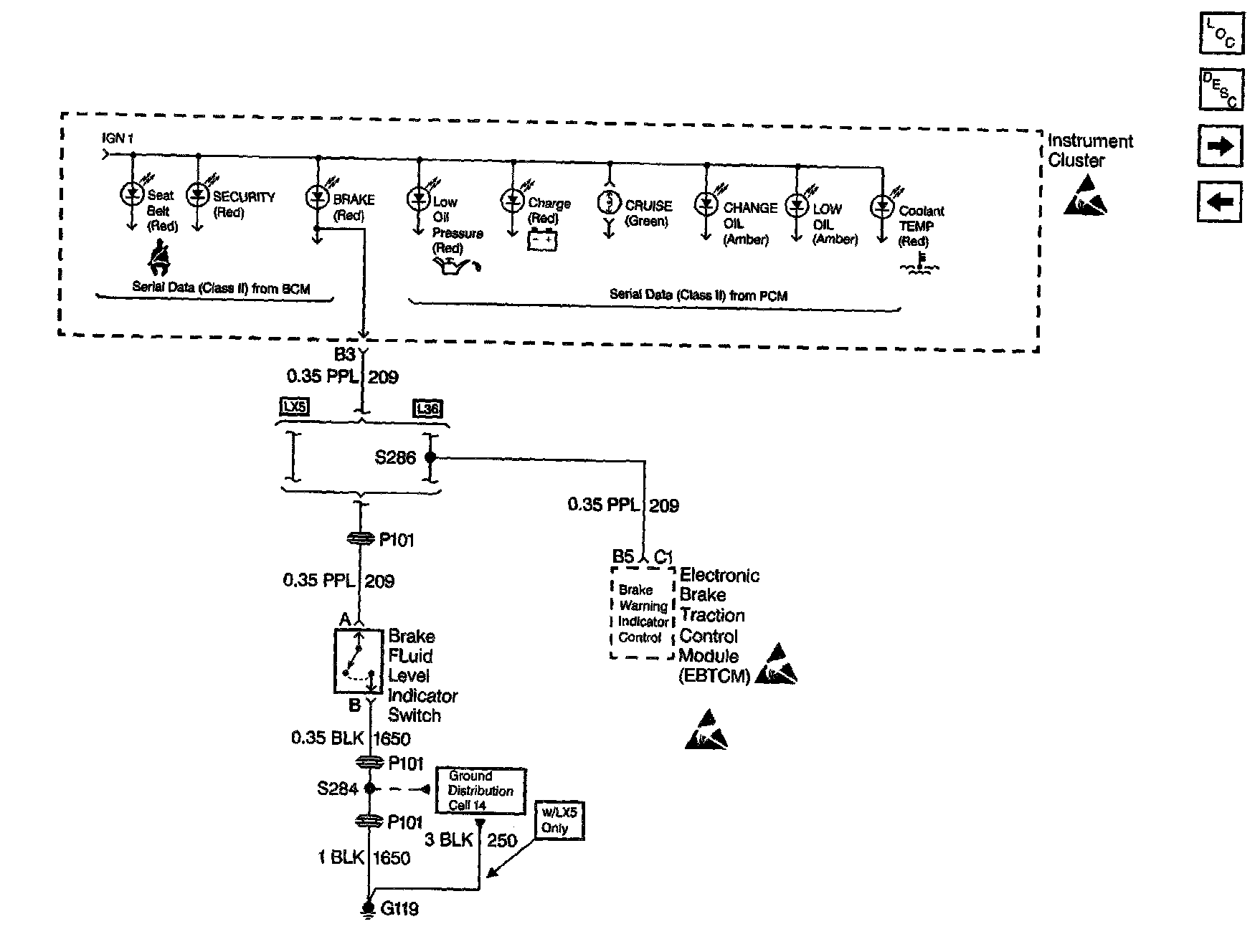

Brake Fluid Level Indicator Switch And EBTCM

Instrument Cluster: Analog Schematics: Brake Fluid Level Indicator Switch And EBTCM:
