Audible Warning Schematics
>>
Power and Ground Distribution, and Serial Data
Power and Ground Distribution, and Serial Data

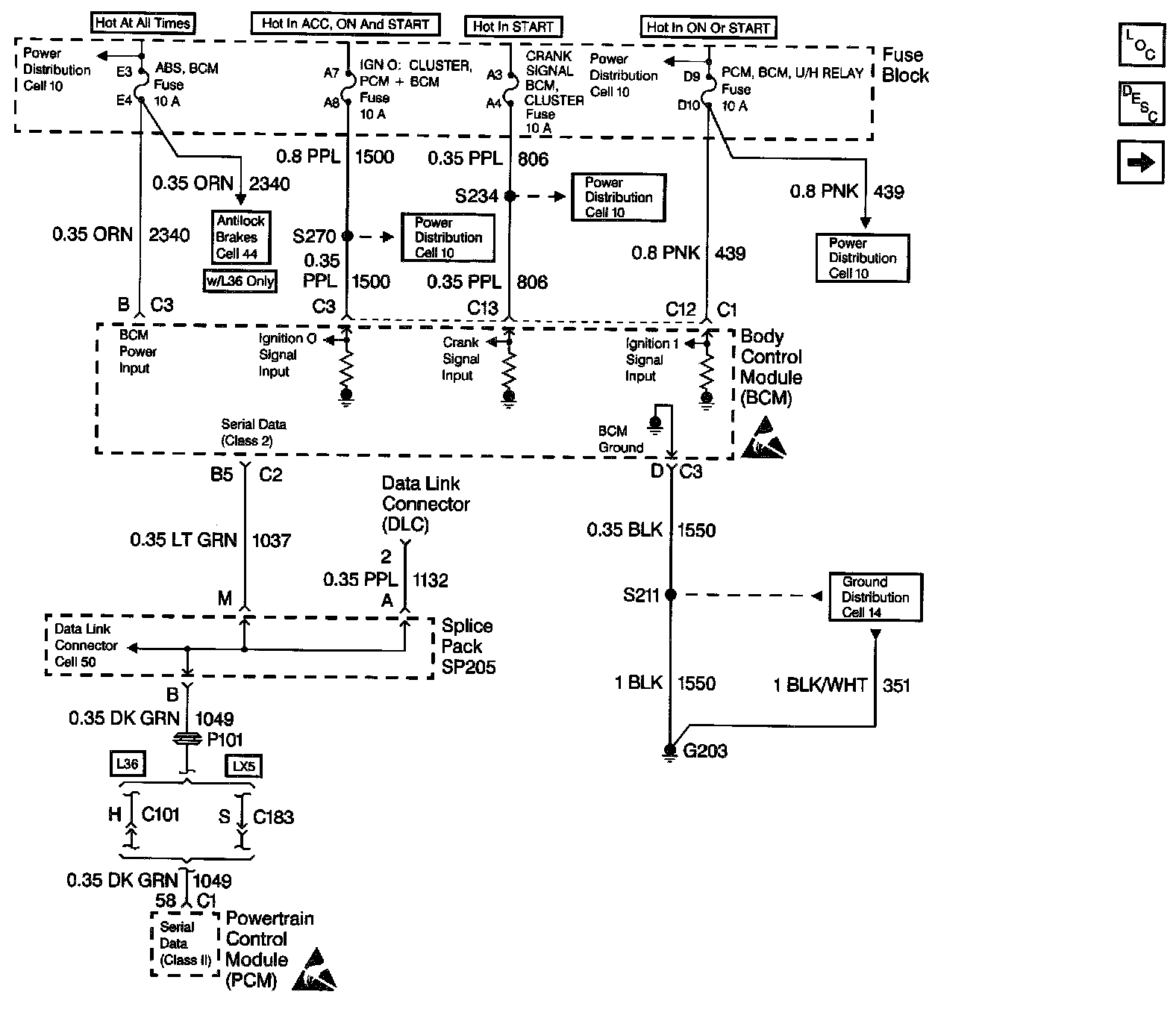

Audible Warning Schematics: Power And Ground Distribution, And Serial Data:
